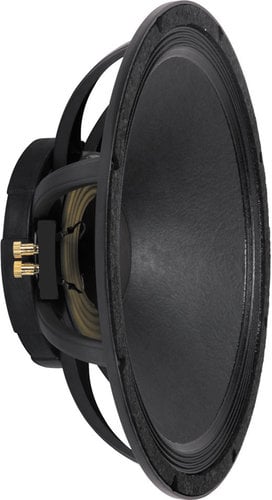

Peavey 00560120
15" 1505-8 KA DT BW Low Frequency Driver

OUR PART #  00560120

Our Price: $153.59
List Price: $191.99
You save 20%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

Peavey Electronics' 00560120 is a 15" low frequency driver designed for use with the following cabinets & enclosures:

  • SP1G
  • SP2G
  • SP3G
  • SP7G
  • SP2Ti
  • SP 115M
  • 115 Int. Series III Black
  • HDH1
  • HDH2
  • UDH Sub Woofer
  • DTH Sub
  • HDH244T
  • SP2XT
  • SP4XT
  • DS-2003
  • 1545Ti
  • SP4Ti
  • RBS-2

Features/Specifications:

  • Impedance: 8 Ohms
  • Power capacity: 1400 W Peak 700 W Program 350 W Continuous
  • Sensitivity: 99.0 dB / 1 W 1 m
  • Usable freq. range: 40 Hz ~ 2 kHz
  • Cone: Kevlar® impregnated cellulose
  • Voice coil diameter: 4.0" / 100 mm
  • Voice coil material: Aluminum ribbon wire Polyimide-impregnated fiberglass former Nomex® stiffener Solderless diffusion welded OFHC copper leads
  • Net weight lb. / kg: 17 lbs. / 7.7 kg
  • Znom (ohms) 8
  • Revc (ohms) 5.23 Sd (Square Meters) 0.084
  • BL (T/M) 17.7
  • Fo (Hz) 50.8
  • Vas (liters) 143.5
  • Cms (uM/N) 143.3
  • Mms (gm) 68.5
  • Qms 7.599
  • Qes 0.367
  • Qts 0.350
  • Xmax (mm) 0.9
  • Le (mH) 0.28
  • SPL (1W 1m) 99.0
  • No (%) 4.50%
  • Vd (cu. in. / ml) 4.6 / 76
  • Pmax (Watts pgm.) 700
  • Disp (cu. in. / ml) 197/ 3229
  • Weight Unpacked: 17.50 lbs (7.938 kg)
  • Weight Packed: 20.00 lbs (9.072 kg)
  • Width Packed: 18.25" (46.355 cm)
  • Depth Packed: 18.5" (46.99 cm)
  • Height Packed: 7" (17.78 cm)
Replacement Basket 1505-8 KADT BWPeavey 1505-8 KADT BW RB Replacement Basket 1505-8 KADT BW

Replacement basket for Peavey's Black Widow 1505-8 KADT BW. Weight Unpacked: 3.00 lbs (1.361 kg) Weight Packed: 5.25 lbs (2.381 kg) Width Packed: 21" (53.34 cm) Height Packed: 22" (55.88 cm) Depth Packed: 7" (17.78 cm)

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$92.79List Price: $115.99You save 20%!

Peavey 00560120
15" 1505-8 KA DT BW Low Frequency Driver

OUR PART #  00560120

Product Information:

Peavey Electronics' 00560120 is a 15" low frequency driver designed for use with the following cabinets & enclosures:

  • SP1G
  • SP2G
  • SP3G
  • SP7G
  • SP2Ti
  • SP 115M
  • 115 Int. Series III Black
  • HDH1
  • HDH2
  • UDH Sub Woofer
  • DTH Sub
  • HDH244T
  • SP2XT
  • SP4XT
  • DS-2003
  • 1545Ti
  • SP4Ti
  • RBS-2

Features/Specifications:

  • Impedance: 8 Ohms
  • Power capacity: 1400 W Peak 700 W Program 350 W Continuous
  • Sensitivity: 99.0 dB / 1 W 1 m
  • Usable freq. range: 40 Hz ~ 2 kHz
  • Cone: Kevlar® impregnated cellulose
  • Voice coil diameter: 4.0" / 100 mm
  • Voice coil material: Aluminum ribbon wire Polyimide-impregnated fiberglass former Nomex® stiffener Solderless diffusion welded OFHC copper leads
  • Net weight lb. / kg: 17 lbs. / 7.7 kg
  • Znom (ohms) 8
  • Revc (ohms) 5.23 Sd (Square Meters) 0.084
  • BL (T/M) 17.7
  • Fo (Hz) 50.8
  • Vas (liters) 143.5
  • Cms (uM/N) 143.3
  • Mms (gm) 68.5
  • Qms 7.599
  • Qes 0.367
  • Qts 0.350
  • Xmax (mm) 0.9
  • Le (mH) 0.28
  • SPL (1W 1m) 99.0
  • No (%) 4.50%
  • Vd (cu. in. / ml) 4.6 / 76
  • Pmax (Watts pgm.) 700
  • Disp (cu. in. / ml) 197/ 3229
  • Weight Unpacked: 17.50 lbs (7.938 kg)
  • Weight Packed: 20.00 lbs (9.072 kg)
  • Width Packed: 18.25" (46.355 cm)
  • Depth Packed: 18.5" (46.99 cm)
  • Height Packed: 7" (17.78 cm)
Replacement Basket 1505-8 KADT BWPeavey 1505-8 KADT BW RB Replacement Basket 1505-8 KADT BW

Replacement basket for Peavey's Black Widow 1505-8 KADT BW. Weight Unpacked: 3.00 lbs (1.361 kg) Weight Packed: 5.25 lbs (2.381 kg) Width Packed: 21" (53.34 cm) Height Packed: 22" (55.88 cm) Depth Packed: 7" (17.78 cm)

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$92.79List Price: $115.99You save 20%!
