Switchcraft MMVP48K1NNT 96-Channel MMVP Series Video Patchbay, 1 Rack Unit

The MMVP Series provides the highest level of density for SMPTE 424M video and AES/EBU digital audio patching. 48 channels (96 patch-points) in a 1RU 19” rack space.

Based on the patented, proven design of our MVJ MidSize video jack, the all metal, screw-in jack provides complete stability and durability in even the most extreme applications, including mobile production. The MMVP jack is rated at 3GHz and meets SMPTE 424M specifications. Industry standard DIN 1.0 / 2.3 rear termination makes installation easy and eliminates the need for proprietary connectors or special tooling.

Each patchbay jack can be color coded using our new color chips. Each chip snaps into the front panel, providing instant channel identification. Additionally, snap-in posts on either side of the designation strips secure designation labeling. Color chips sold separately.

The MMVP48K1NNT model occupies 1RU of space, has 2 x 48 inputs and is non-normalled and non-terminated.

Features

• Based on the proven, reliable, patented technology of our MVJ Series of HD video jacks.
• Screw in, all metal jack design withstands vibration in mobile applications.
• Rated at 3GHz - meets SMPTE 424M specifications for HD patching.

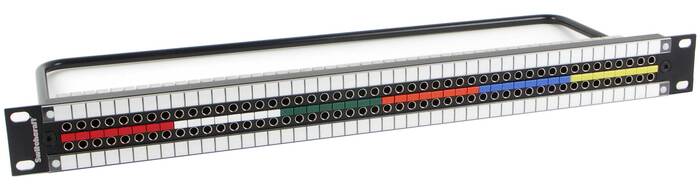

• [Similar model shown above with optional color chips. Color chips sold separately.]
