Switchcraft MMVP48K1N75T
Patch Bay, Video 2x48 Terminated


Our Price: $1,447.04
List Price: $2,315.25
You save 37%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The MMVP Series provides the highest level of density for SMPTE 424M video and AES/EBU digital audio patching...
48 channels (96 patch-points) in a 1RU 19ā€¯ rack space.

Based on the patented, proven design of our MVJ MidSize video jack, the all metal, screw-in jack provides complete stability and
durability in even the most extreme applications, including mobile production. The MMVP jack is rated at 3GHz and meets SMPTE
424M specifications. Industry standard DIN 1.0 / 2.3 rear termination makes installation easy and eliminates the need for
proprietary connectors or special tooling.

Each patchbay jack can be color coded using our new color chips. Each chip snaps into the front panel, providing instant channel
identification. Additionally, snap-in posts on either side of the designation strips secure designation labeling. (Color chips sold separately)

The MMVP48K1N75T model is 1RU high, with 2 x 48 inputs. It is terminated and non-normalled.


  • Based on the proven, reliable, patented technology of our MVJ Series of HD video jacks.
  • Screw in, all metal jack design withstands vibration in moble applications.
  • Rated at 3GHz - meets SMPTE 424M specifications for HD patching.
  • DIN 1.0 / 2.3 rear termination

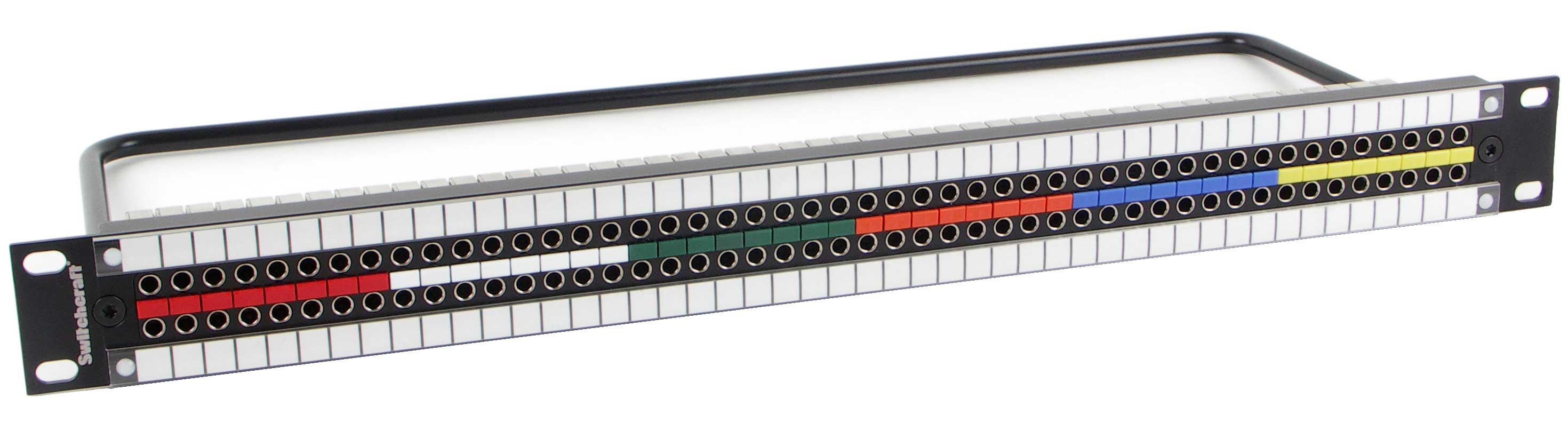

[Similar model shown with color chips shown above, color chips sold separately]
