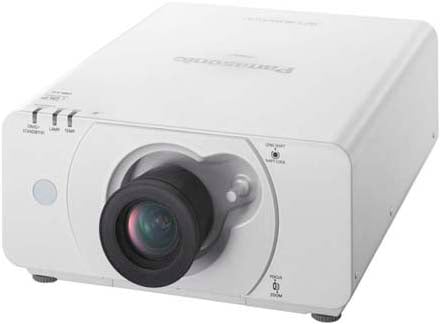

Panasonic PTDX500U
4500 Lumen XGA Installation Projector

OUR PART #  PTDX500U

Our Price: $2,165.13
List Price: $4,349.00
You save 50%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

Features/Specifications:

  • Screen Size: 40" - 300"
  • Native Resolution: 1024 x 768
  • Brightness (ANSI lumens): 4,500 lumens (lamp mode: NORMAL)
  • Contrast Ratio: Up to 2,000:1
  • Lamp Type: 300 W (max. 310 W) UHM lamp
  • Optical Axis Shift: Vertical: +60% (manual), horizontal: +/- 10% (manual)
  • Lens: Manual zoom (2x zoom), manual focus F 2.0-3.4, f 21.5-43.0mm
  • Power Supply: 120 V AC, 9.0 A, 60 Hz
  • Power Consumption: 415 W (500VA) (0.3 W with standby mode set to ECO, 15 W with standby mode set to NORMAL. Both with fan stopped.)
  • Panel Size: 0.7" diagonal (16:10 aspect ratio)
  • Display Method: DLP TM chip x 1, DLP TM system
  • Pixels: 786,432 (1,024 x 768) x 1, total of 786,432 pixels
  • RGB: fH: 15 kHz - 100 kHz, fV: 24 Hz - 120 Hz, dot clock: 162 MHz or lower
  • S-Video/Video: fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60]
  • Keystone correction range: Vertical: ±40°
  • Installation: Ceiling/floor, front/rear
  • DVI-D in: DVI-D 24-pin x 1 DVI 1.0 compliant 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p,VGA (640 x 480)-WUXGA (1,920 x 1,200), compatible with non-interlaced signals only, dot clock: 25 - 162 MHz
  • Power cord length: 9 ft., 10 in.
  • Dimensions: 13-1/16" W x 6-5/8" H x 19-1/16" D
  • Weight: Approximately 18.7 lbs
  • Operating temperature: 0-45 Degrees C (32-113 Degrees F)
  • Operating humidity: 20%-80% (no condensation)
  • Supplied accessories: Power cord with security lock, wireless/wired remote control unit, batteries for remote control (AA type for North America, R6/LR6 type for Europe and Asia)x 2, safety wire rope
  • REMOTE 1 IN: M3 jack x 1 (for wired remote control)
  • LAN: RJ-45 for network connection, 10Base-T/100Base-TX, compliant with PJLink TM
  • S-VIDEO In: Mini DIN 4-pin x 1 (S-Video)
  • VIDEO In: BNC x 1 (composite video)
  • SERIAL IN: D-sub 9-pin (female) x 1 (for external control, RS-232C compliant)
  • HDMI IN: HDMI 19-pin × 1, Deep Color, HDCP compatible 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p
  • RGB 1 IN: BNC x 5
  • RGB 2 IN: D-Sub HD 15-pin (female) x 1
  • HDMI/DVI/D: fH: 27 kHz - 100 kHz, fV: 24 Hz - 120 Hz, dot clock: 25 MHz - 162 MHz
  • WIRELESS MODULE: Connector for optional wireless moduleET-WM200U/WM200E x 1

Panasonic PTDX500U
4500 Lumen XGA Installation Projector

OUR PART #  PTDX500U

Product Information:

Features/Specifications:

  • Screen Size: 40" - 300"
  • Native Resolution: 1024 x 768
  • Brightness (ANSI lumens): 4,500 lumens (lamp mode: NORMAL)
  • Contrast Ratio: Up to 2,000:1
  • Lamp Type: 300 W (max. 310 W) UHM lamp
  • Optical Axis Shift: Vertical: +60% (manual), horizontal: +/- 10% (manual)
  • Lens: Manual zoom (2x zoom), manual focus F 2.0-3.4, f 21.5-43.0mm
  • Power Supply: 120 V AC, 9.0 A, 60 Hz
  • Power Consumption: 415 W (500VA) (0.3 W with standby mode set to ECO, 15 W with standby mode set to NORMAL. Both with fan stopped.)
  • Panel Size: 0.7" diagonal (16:10 aspect ratio)
  • Display Method: DLP TM chip x 1, DLP TM system
  • Pixels: 786,432 (1,024 x 768) x 1, total of 786,432 pixels
  • RGB: fH: 15 kHz - 100 kHz, fV: 24 Hz - 120 Hz, dot clock: 162 MHz or lower
  • S-Video/Video: fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60]
  • Keystone correction range: Vertical: ±40°
  • Installation: Ceiling/floor, front/rear
  • DVI-D in: DVI-D 24-pin x 1 DVI 1.0 compliant 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p,VGA (640 x 480)-WUXGA (1,920 x 1,200), compatible with non-interlaced signals only, dot clock: 25 - 162 MHz
  • Power cord length: 9 ft., 10 in.
  • Dimensions: 13-1/16" W x 6-5/8" H x 19-1/16" D
  • Weight: Approximately 18.7 lbs
  • Operating temperature: 0-45 Degrees C (32-113 Degrees F)
  • Operating humidity: 20%-80% (no condensation)
  • Supplied accessories: Power cord with security lock, wireless/wired remote control unit, batteries for remote control (AA type for North America, R6/LR6 type for Europe and Asia)x 2, safety wire rope
  • REMOTE 1 IN: M3 jack x 1 (for wired remote control)
  • LAN: RJ-45 for network connection, 10Base-T/100Base-TX, compliant with PJLink TM
  • S-VIDEO In: Mini DIN 4-pin x 1 (S-Video)
  • VIDEO In: BNC x 1 (composite video)
  • SERIAL IN: D-sub 9-pin (female) x 1 (for external control, RS-232C compliant)
  • HDMI IN: HDMI 19-pin × 1, Deep Color, HDCP compatible 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p
  • RGB 1 IN: BNC x 5
  • RGB 2 IN: D-Sub HD 15-pin (female) x 1
  • HDMI/DVI/D: fH: 27 kHz - 100 kHz, fV: 24 Hz - 120 Hz, dot clock: 25 MHz - 162 MHz
  • WIRELESS MODULE: Connector for optional wireless moduleET-WM200U/WM200E x 1
