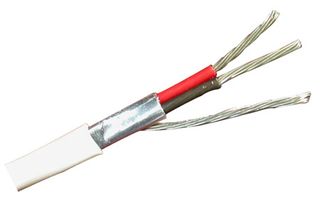

Belden 82760-1000
1000 ft of Single-Pair 18AWG Multi-Conductor Wire with FEP Insulation

OUR PART #:  82760-1000

18 AWG stranded (19x30) TC conductors, plenum, FEP insulation, twisted pair, overall Beldfoil® shield (100% coverage), 20 AWG stranded TC drain wire, Flamarrest® jacket.
Learn More
Our Price: $1,316.13
List Price: $1,365.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Belden 82760-1000
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

18 AWG stranded (19x30) TC conductors, plenum, FEP insulation, twisted pair, overall Beldfoil® shield (100% coverage), 20 AWG stranded TC drain wire, Flamarrest® jacket.

Physical Characteristics (Overall):

Conductor:

  • AWG:
    # Pairs: 1
    AWG: 18
    Stranding: 19x30
    Conductor Material: TC - Tinned Copper
  • Total Number of Conductors: 2

Insulation:

  • Insulation Material:
    Insulation Material: FEP - Fluorinated Ethylene Propylene
    Wall Thickness: 0.1778 mm

Outer Shield:

  • Outer Shield Material:
    Outer Shield Trade Name: Beldfoil® with shorting fold
    Type: Tape
    Outer Shield Material: Aluminum Foil-Polyester Tape
    Coverage: 100%
  • Outer Shield Drain Wire AWG:
    AWG: 20
    Stranding: Stranded
    Drain Wire Conductor Material: TC - Tinned Copper

Outer Jacket:

  • Outer Jacket Material:
    Outer Jacket Trade Name: Flamarrest®
    Outer Jacket Material: LS PVC - Low Smoke Polyvinyl Chloride
    Nom. Wall Thickness:  0.3556 mm

Overall Cable:

  • Overall Nominal Diameter: 3.708 mm

Pair:

  • Pair Color Code Chart:
    #1: Black & Red
  • Pair Lay Length & Direction:
    Lay Length: 50.800 mm
    Twists (twist/m): 19.686
    Direction: Left Hand
