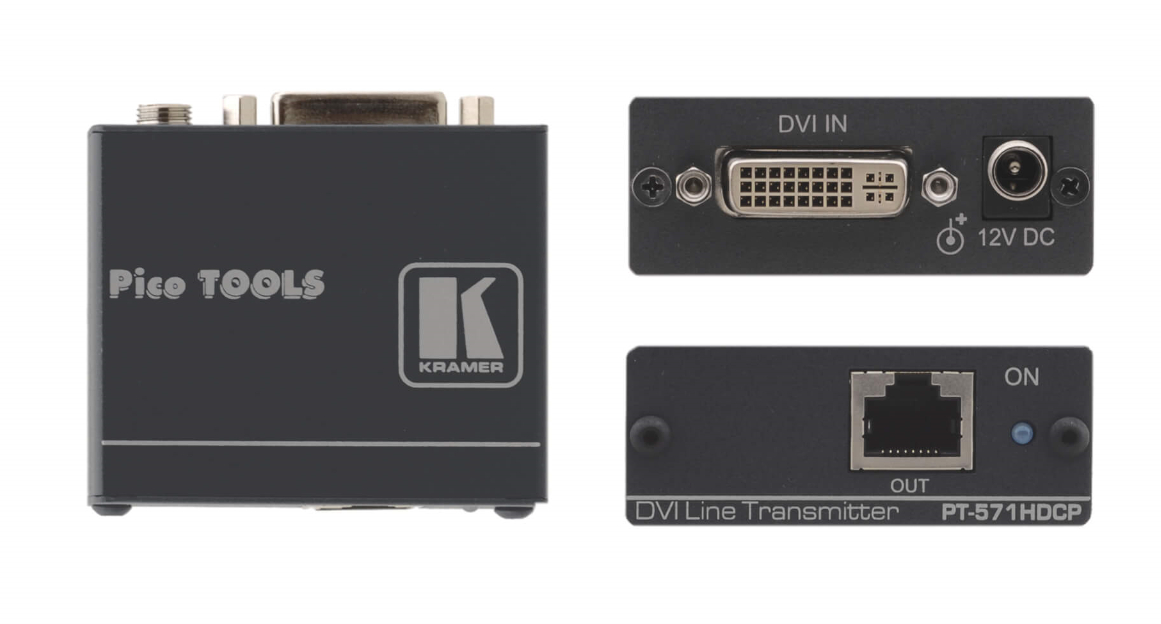

Kramer PT-571HDCP
DVI over Twisted Pair Transmitter

OUR PART #:  PT-571HDCP

The PT-571HDCP is a twisted-pair transmitter for DVI signals.
Learn More
Our Price: $156.00
List Price: $195.00
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer PT-571HDCP
Qty:
In Stock

Similar Products

The PT-571HDCP is a twisted-pair transmitter for DVI signals. The PT-571HDCP converts the DVI to twisted pair signal and the PT-572HDCP converts the twisted pair signal back to a DVI signal.

Kramer PT-571HDCP Specifications:

  • Max. date rate - 1.65Gbps
  • HDTV compatible
  • HDCP compliant
  • System Range - Up to 90m (295ft) at SXGA, or up to 30m (98ft) at UXGA on shielded BC-DGKat524 cable.
    Up to 90m (295ft) at SXGA, or up to 70m (230ft) at UXGA on shielded BC-DGKat623 cable.
    Up to 100m (330ft) at SXGA, or up to 80m (265ft) at UXGA on shielded BC-DGKat723 cable.
  • Cable - Requires shielded twisted pair (STP) cable. For optimum range and performance use, use Kramer's BC-DGKat524, BC-DGKat623 and BC-DGKat723 cables.Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non-Kramer CAT 5, CAT 6, and CAT 7cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.
  • EDID PassThru - Passes EDID/HDCP signals from source to display
  • Power Connect™ System - A single connection to the transmitter powers both units when the devices are within 150ft (50m) of each other
  • Ultra-Compact PicoTOOLS™ - 4 units can be rack mounted side-by-side in a1U rack space with the optional RK-4PT rack adapter
