Ortofon Inc CC-S120-TWIN

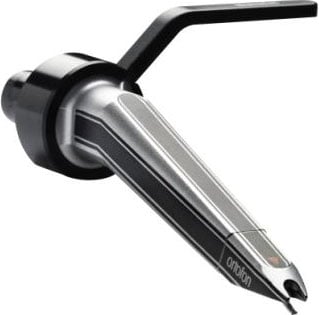

1 Pair of Concorde Pro DJ/Serato S-120 Cartridges

OUR PART #:  CC-S120-TWIN

The Ortofon-Serato S-120 represents a completely new way of constructing and designing cartridges.
Learn More
Our Price: $299.99
List Price: $419.99
You save 29%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Ortofon Inc CC-S120-TWIN
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Ortofon-Serato S-120 represents a completely new way of constructing and designing cartridges.  An innovative technology called asymmetric suspension takes the cartridge performance to the next level.  Its superior tracking force ensures the S-120 stays in the groove even under extreme live performance conditions.

In addition, its design achieves an unprecedentedly low level of record wear, which helps protect your valuable vinyl.  On top of this, the S-120 is capable of providing a level of sound quality never thought possible from a modern DJ cartridge.

Features/Specifications:

  • Output voltage at 1000Hz, 5cm/sec.: 10 mV
  • Channel balance at 1kHz: 1,5 dB
  • Channel separation at 1kHz: 20 dB
  • Channel separation at 15 kHz: 15 dB
  • Frequency range at -3dB: 20-18.000 Hz
  • Frequency response: 20-18.000 Hz +3/- 2dB
  • FIM distortion at recommended tracking force DIN 45.542: < 1%
  • Tracking ability at 315 Hz at recommended tracking force: 120 µm
  • Compliance, dynamic lateral: 11 µm/m N
  • Stylus type: Spherical
  • Stylus tip radius: R 18 µm
  • Tracking force range: 1,5-10,0 g (15-100 mN)
  • Tracking force recommended: 4,0 g (40 mN)
  • Internal impedance, DC resistance: 1680 Ohm
  • Internal inductance: 920 mH
  • Recommended load resistance: 47 kOhm
  • Recommended load capacitance: 200-600 pF
  • Cartridge weight: 18,5 g
  • Replacement stylus unit: Ortofon-Serato S-120
