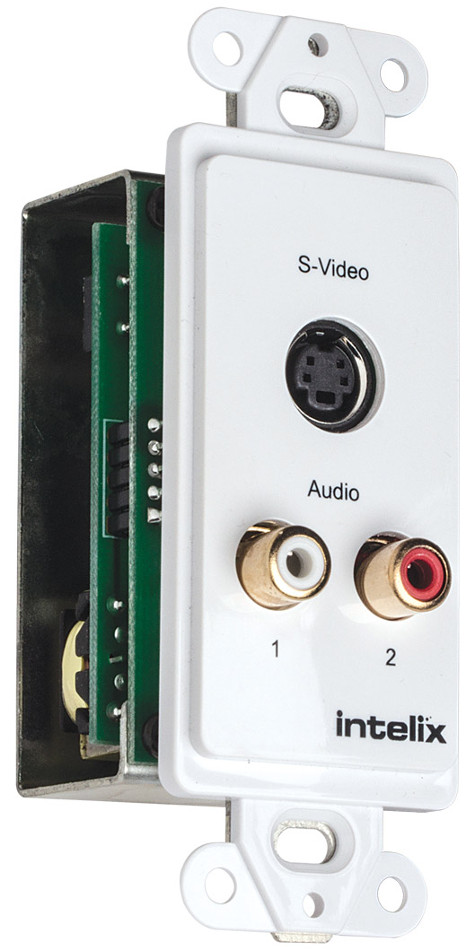

Intelix AVO-SVA2-WP-F
Single S-Video and Stereo Analog Audio Wall Plate

OUR PART #:  AVO-SVA2-WP-F

The Intelix AVO-SVA2-WP-F balun is an ideal solution for transmitting s-video and ultra-high quality stereo audio up to 1,000ft over structured cabling, such as Cat 5.
Learn More
Our Price: $110.66
List Price: $122.95
Call for Special Sale Price!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Intelix AVO-SVA2-WP-F
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Intelix AVO-SVA2-WP-F balun is an ideal solution for transmitting s-video and ultra-high quality stereo audio up to 1,000ft over structured cabling, such as Cat 5.  Used in pairs or with the rack-mountable Intelix AVO-SVA2-F balun, the AVO-SVA2-WP-F wallplate baluns replaces bulky coaxial cable and utilize a building's existing structured cabling network.

Intelix AVO-SVA2-WP-F Specifications:

  • Max. Distance: 1,000ft
  • Bandwidth: Video: DC to 6 MHz; Audio: 20 Hz to 20 kHz
  • Power: No power required
  • Video Impedance: 75 ohms
  • Audio Impedance: 600 ohms min
  • Max. Input: 1.1V p-p
  • Insertion Loss: Video: Less than 2 dB perpair over the frequency range; Audio at 600 ohms: less than 3 dB per pair; Audio at 1.2k Ohms:  less than 1.9 dB perpair
  • ReturnLoss: Better than 12dB over the frequency range
  • CommonMode Rejection: Greater than 40dB over the frequency range
  • Connectors: (1) 4-pin mini DIN (female), (2) RCAaudio jacks, and (1) RJ45
