Anchor PC2000 2-Channel Power Console for Portacom 2000

The PC-2000 is a two-channel rack-mountable power console with four outputs for the Anchor PortaCom 2000 intercom system.

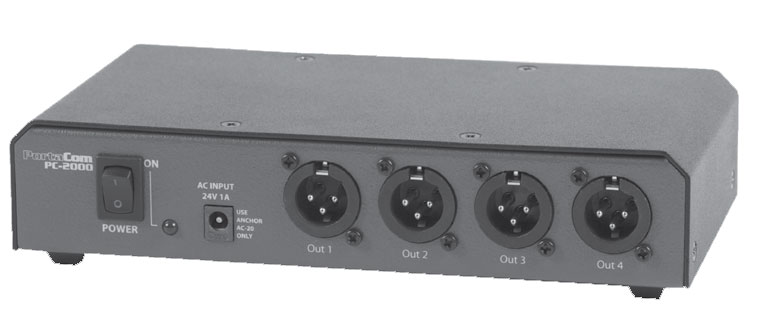

The PC-2000 Power Console can power up to 50 BP-2000 Belt Packs over a combined total of 2,500 feet of cable. It has a power switch, an input for connecting the AC adapter and four 3-pin XLR output jacks. Using the RM-100 bracket you can mount one or two PC-2000s in a standard rack. Belt packs are connected to the PC-2000 using standard mic cable with 3-pin XLR connectors.

Includes wallmount AC adapter.

Features

• Two Channel, Wired Full Duplex Intercom
• Up to 50 Headset Capacity
• Easy to Set up and Operate
• Portable or Rackmountable

Specifications

• Output Connectors: 4 x 3-pin XLR male
• Voltage Output: 22 VDC to belt packs
• Max. Current Capacity: 400 mA
• Max. Belt Packs: 50 BP-2000 belt packs
• Input Power Requirements: 24 VAC, 50/60 Hz, 750mA, 30-40 VDC, 500mA
• AC Power Adapter: AC-20
• Input Voltage: 120 VAC, 60 Hz
• Output Voltage/Current: 24 VAC @ 75 mA
• Dimensions (H x W x D): 1.75" x 8.5" x 4.5" (4.45 x 21.6 x 10.2cm)
• Weight: 3.6 lbs (1.6 kg)
