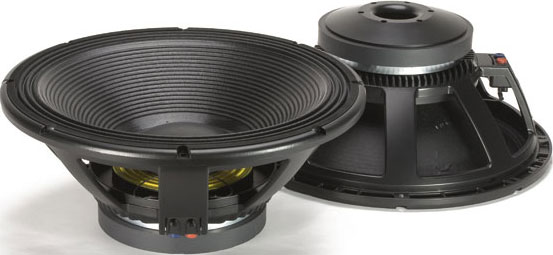

RCF L18P400
2000W Transducer

OUR PART #  L18P400

Our Price: $435.00
List Price: $509.00
You save 15%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

RCF's L18P400 offers incredibly linear frequency response characteristics and extreme high power handling while generating the lowest harmonic distortion of any comparable 18" transducer wtihin its application range.

The L18P400 uses a fiber loaded cone assembly along with a high excursion triple roll, constant geometry surround.  A fully optimized T-pole design generate the minimum amount of flux modulation.  The T-pole also features RCF Precision's spaced gap demodulation technology, progressively braking the voice coil, providing a much smoother transition for the moving mass as it reachees its maximum excursion limits.  Forced air venting system.

Features:

  • 4" fiberglass inside/outside copper voice coil
  • 2000W continuous program power handling
  • 97.5 dB Sensitivity
  • 25 Hz – 1 kHz Frequency range
  • Aluminum demodulation ring
  • Forced air ventilation and 15 mm top plate for minimum power compression
  • Dual spider design with silicon based dampening control
  • Triple roll surround and corrugated straight cone geometry

General Specifications:

  • Nominal Diameter: 18" (460 mm)
  • Rated Impedance: 8 ohms
  • Program Power: 2000 W AES
  • Power handling capacity: 1000 W AES
  • Sensitivity: 97.5 dB
  • Frequency Range: 25 Hz ÷ 1000 Hz
  • Effective Piston Diameter: 15.6" (395 mm)
  • Max Excursion Before Damage (peak to peak): 2" (50 mm)
  • Minimum Impedance: 6.5 ohms
  • Voice Coil Diameter: 4" (100 mm)
  • Voice Coil Material: Copper
  • Voice Coil Winding Depth: 1" (25mm)
  • Number of layers: 2
  • Kind of layer: inside / outside
  • Top Plate Thickness: 0.6" (15 mm)
  • Cone Material: No pressed pulp
  • Cone Design: Straight
  • Surround Material: Polycotton
  • Surround Design: Triple roll

Thiele/Small Parameters:

  • Resonance frequency: 29 Hz
  • DC resistance: 5.1 ohms
  • Mechanical factor: 7.6
  • Electrical factor: 0.29
  • Total factor: 0.28
  • BL Factor: 24.6 T · m
  • Effective Moving Mass: 200 g
  • Equivalent Cas air load: 340 liters
  • Effective piston area: 0.122 m²
  • Max. linear excursion (mathematical): 8.8 mm
  • Voice - coil inductance @ 1kHz: 2.5 mH
  • Half-space efficiency: 2.63%

Mounting information:

  • Overall Diameter: 18.3" (465 mm)
  • Bolt Circle Diameter: 17.4"-17.6" (442-447 mm)
  • Bolt Hole Diameter: 0.25" (6.5 mm)
  • Front Mount Baffle Cut-out: 16.7" (424 mm)
  • Rear Mount Baffle Cut-out: 16.7" (424 mm)
  • Depth: 8.1" (205 mm)
  • Volume occupied by the driver: 0.21 ft³ (6.0 liters)
  • Net Weight: 29.3 lbs (13.3 kg)

Shipping weight: 31.5 lbs (14.3 kg)
