RCF P3108

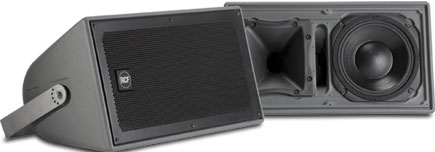

300W RMS Indoor/Outdoor Two-Way Weatherproof Speaker System with 90x60 Contstant Directivity Horn

OUR PART #:  P3108

RCF's P3108 is a full range, weatherproof, wide-dispersion...
Learn More
Our Price: $915.00
List Price: $1,299.00
You save 30%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

RCF P3108
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

RCF's P3108 is a full range, weatherproof, wide-dispersion, two-way loudspeaker system that offers substantial power and efficiency for a variety of professional indoor or outdoor applications.

The high frequency section is comprised of a constant directivity CMD horn loaded with a 1" RCF Precision Neodymium compression driver with a 1.5" diaphragm assembly for smooth, wide dispersion.  The low-frequency transducer is a 8" woofer with a 2.5" voice coil.  The cabinet is constructed of a single piece of fully UV-protected, roto-molded medium-density polyethylene.  The cabinet is equipped 4xM8 brass inserts and a stainless steel U-Bracket.  The front logo is made of aluminium and rotatable.  The grille is made of custom-perforated aluminium with open-cell fibers and water-repellent woven fabric backing.  The P3108 is suitable for indoor and outdoor applications/installations, it meets the requirements of IP 55 code (International Protection Rating).

Features:

  • Weatherproof cabinet IP 55
  • Aluminium grill and stainless steel bracket
  • One 8" high-output LF transducer with 1.5" voice coil
  • One RCF Precision Neodymium 1" Compression Driver with 1.5" voice coil
  • 90° x 60° constant directivity horn
  • Built-in passive crossover
  • 2° x 15° enclosure sides for cluster configurations
  • Active Mosfet Compression Driver Protection
  • 4 brass suspension points (M8)
  • 4-pole Amphenol IP 67 input connector

Acoustical Specifications:

  • Frequency Response -10 dB: 80 Hz ÷ 20 kHz
  • Max SPL @ 1m: 125 dB
  • Horizontal coverage angle: 90°
  • Vertical coverage angle: 60°
  • Directivity index; Q: 11
  • System Sensitivity: 95 dB
  • Nominal Impedance: 8 Ohms
  • Power Handling: 300 W
  • Peak Power Handling: 1200 W
  • Protections: Dynamic protection
  • Crossover frequencies: 1800 Hz

Transducers:

  • Compression Driver: 1" HF, 2.5" voice coil
  • Nominal Impedance: 8 Ohms
  • Input Power Rating: 25 W AES
  • Sensitivity: 109 dB
  • Woofer: 8" woofer, 2.5" voice coil
  • Nominal Impedance: 8 Ohms
  • Input Power Rating: 300 W AES
  • Sensitivity: 95 dB

Cabinet:

  • Cabinet Material: roto-molded Polyethylene
  • Hardware: 4 x M8 + U-Bracket and pair of spacers
  • Grille: Custom perforated aluminium grille with open-cell fiber andwater-repellent woven fabric backing
  • Color: Gray

Physical Specifications:

  • Dimensions: 10.47" H x 19.41" W x 9.84" D (266 x 493 x 250)
  • Net Weight: 22 lbs (10 kg)
