RCF P1108-T
100W RMS Indoor/Outdoor Two-Way Weatherproof Speaker System with 90x60 Contstant Directivity Horn

OUR PART #  P1108-T

Our Price: $663.00
List Price: $799.00
You save 17%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

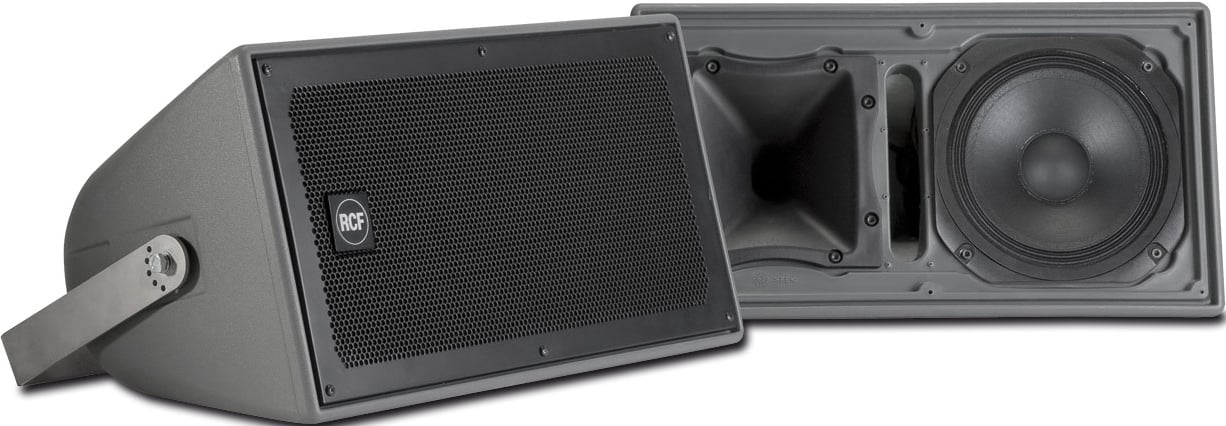

RCF's P1108-T is a full-range, wide-dispersion, weatherproof two-way loudspeaker system suitable for several indoor or outdoor applications where good speech intelligibility and music reproduction are required.

In a single-piece, UV-protected, rotational-molded polyethylene cabinet, the P1108-T combines a 1.5" diaphragm assembly compression driver loaded on a 1" rotatable constant directivity 90° x 60° CD horn with an 8", high-efficiency, low-frequency transducer with a 1.5" voice coil.  The cabinet is equipped with 4 x M 8 brass inserts and a steel U-Bracket.  The front logo is made from aluminium and rotatable.  The grille is made from custom perforated aluminium with open-cell fibers and water-repellent woven fabric backing.  Meets the requirements of IP 55 code (International Protection Rating).

Features:

  • 100 W RMS
  • Weatherproof cabinet IP 55
  • Aluminium grill and stainless steel bracket
  • One 8" high-output LF transducer with 1.5" voice coil
  • One RCF Precision Neodymium 1" Compression Driver with 1.5" voice coil
  • 90° x 60° constant directivity horn
  • 2° x 15° enclosure sides for cluster configurations
  • PTC Driver Protection
  • LICC (Low Impedance Compensated Crossover) network
  • 2 metres 4 x 1.5 Input cable

Acoustical Specifications:

  • Frequency Response -10 dB: 80 Hz ÷ 20 kHz
  • Max SPL @ 1m: 121 dB
  • Horizontal coverage angle: 90°
  • Vertical coverage angle: 60°
  • Directivity index; Q: 11
  • System Sensitivity: 95 dB
  • Nominal Impedance: 16 Ohms
  • Power Handling: 100 W
  • Peak Power Handling: 400 W
  • Recommended Amplifier: 200
  • Protections: Dynamic protection on Compression Driver
  • Crossover frequencies: 2200 Hz

Transducers:

  • Compression Driver: 1" throat, 1.5" coil diaphragm assembly
  • Nominal Impedance: 8 Ohms
  • Input Power Rating: 20 W AES
  • Sensitivity: 107 dB
  • Woofer: 8" woofer, 1.5" voice coil
  • Nominal Impedance: 16 Ohms
  • Input Power Rating: 100 W AES
  • Sensitivity: 94 dB

Input Section:

  • Input connector: 4 x 1.5 mm square 2 m Neoprene cable
  • Constant voltage transformer: 70/100
  • Power Selection: 70V/30W, 15W - 100V/60W, 30W

Cabinet:

  • Cabinet Material: 8 mm roto-molded Polyethylene
  • Hardware: 4 x M8 + U-Bracket and Pair of spacers
  • Grille: Custom perforated aluminium grille with open-cell fiber and waterrepellent woven fabric backing
  • Color: Gray

Physical Specifications:

  • Dimensions: 10.47" H x 19.4" W x 9.84" D (266 x 493 x 250)
  • Net Weight: 27.55 lbs (12.5 kg)
