HD/SD Mobile Recorder w/Card Slot


The PDW-HR1/MK1, is the PDW-HR1 mobile deck with the PDBK-MK1 SxS Card Option pre-installed.
Learn More
Sale Price: $17,813.00
List Price: $22,420.00
You save 21%!
Write the first review.
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

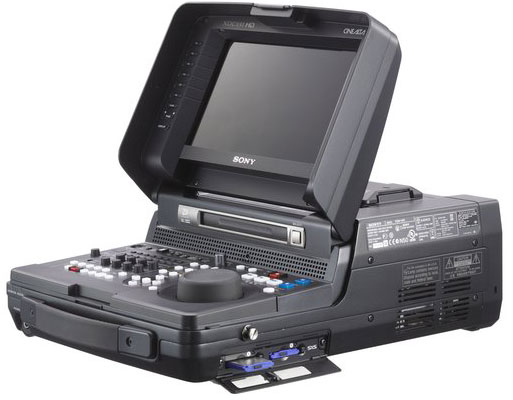

The PDW-HR1/MK1, is the PDW-HR1 mobile deck with the PDBK-MK1 SxS Card Option pre-installed. The PDW-HR1 the latest addition to the XDCAM family, is a highly mobile field recorder. The PDBK-MK1 SxS Card Option enables you to review material recorded on either Professional Disc or SxS Card media. Its design is similar to PDW-R1 SD Field Recorder, but the PDW-HR1 provides a lot of additional functionalities. Firstly the PDW-HR1 supports all the XDCAM formats as standard, including the frame rate of 23.98P in 1080i mode and SD (DVCAM and MPEG IMX). Also new concept GUI for EDL-based editing and direct DVB-ASI output provides the field operator more flexible workflow. Its compact, lightweight body makes the PDW-HR1 ideal for use in the field as a pool-feed recorder, backup recorder, comact recorder installed in an extremely confined space such as a car or helicopter and simple field editor by itself.


  • HD recording at up to 50 Mb/s using MPEG HD422
  • Support for existing XDCAM HD and XDCAM SD formats as standard
  • 1080i and 720P recording
  • Dual-layer disc (50 GB, PFD50DLA) and single-layer disc (23.3 GB, PFD23A) support
  • The pre-installed PDBK-MK1 SxS Card Option adds two ExpressCard slots to the PDW-HR1 which enables the PDW-HR1 to also read the FAT-32 formatted cards recorded by the XDCAM EX camcorders as well as the UDF formatted cards recorded by the PMW-500 camcorder.
  • Long recording time (at 50 Mb/s); Approximately 95 minutes on dual-layer disc and 43 minutes on single-layer disc
  • Thumbnail operation
  • Proxy data and metadata recording
  • Built-in up-conversion to HD from SDI input when recording
  • HD/SD conversion and cross conversion between 1080 and 720 at the output during playback
  • Multi-format compact HD/SD Recorder
  • Video format (4:2:2 HD 1080 50i, 59.94i)
  • High-quality eight-channel audio recording
  •  9-inch type color LCD display
  • VTR-like jog/shuttle operation
  • Video control (via front panel and remote)
  • Compact and lightweight
  • AC, DC, or battery powered
  • Ethernet interface
  • i.LINK interface
  • HDMI output for viewing
  • DVB-ASI output by PDBK-202 option
  • Key panel illumination light for use in low-light environments
  • Clip Continuous Recording
  • Direct FTP copy function



  • Power Requirements: AC 100 V to 240 V, 50/60 Hz, DC +12 V, Battery
  • Power Consumption: AC: 65 W, DC: 55 W
  • Operating Temperature: -5 to +45°C (+23 to 113°F)
  • Storage Temperature: -20 to +60°C (-4 to +140°F)
  • Humidity: 20 to 90% (relative humidity)
  • Weight:  7.4 kg (16 lb 5 oz)
  • 7.4 kg (16 lb 5 oz)
  • Dimensions (W x H x D) (Excluding Protrusions): 300 x 129 x 400 mm (11 7/8 x 5 1/8 x 15 3/4 inches)
  • Recording/Playback Format: Video - MPEG HD422 (CBR: 50 Mb/s), MPEG HD:, HQ mode (VBR, maximum bit rate: 35 Mb/s), SP mode (CBR, 25 Mb/s), LP mode (VBR, maximum bit rate: 18 Mb/s) (Playback only), MPEG IMX (CBR, 50/40/30 Mb/s), DVCAM (CBR, 25 Mb/s), Proxy Video: MPEG-4
  • Recording/Playback Format: Audio - MPEG HD422: 8 ch/24 bits/48 kHz, MPEG HD: 4 ch/16 bits/48 kHz, MPEG IMX: 4 ch/24 bits/48 kHz or 8 ch/16 bits/48 kHz, DVCAM: 4 ch/16 bits/48 kHz, Proxy Audio: A-law (8 ch/8 bits/8 kHz)
  • Recording/Playback Time: MPEG HD422: 50 Mb/s: Approx. 95 min. (PFD50DLA), Approx. 43 min. (PFD23A)
    MPEG HD:
    35 Mb/s, 4-ch audio: More than 145 min. (PFD50DLA), More than 65 min. (PFD23A)
    35 Mb/s, 2-ch audio (playback only): More than 150 min. (PFD50DLA), More than 68 min. (PFD23A)
    25 Mb/s, 4-ch audio: Approx. 190 min. (PFD50DLA), Approx. 85 min. (PFD23A)
    25 Mb/s, 2-ch audio (playback only): Approx. 200 min. (PFD50DLA), Approx. 90 min. (PFD23A)
    18 Mb/s, 4-ch audio (playback only): More than 248 min. (PFD50DLA), More than 112 min. (PFD23A)
    18 Mb/s, 2-ch audio (playback only): More than 265 min. (PFD50DLA), More than 122 min. (PFD23A)
    50 Mb/s: Approx. 100 min. (PFD50DLA), Approx. 45 min. (PFD23A)
    40 Mb/s: Approx. 120 min. (PFD50DLA), Approx. 55 min. (PFD23A)
    30 Mb/s: Approx. 150 min. (PFD50DLA), Approx. 68 min. (PFD23A)
    25 Mb/s: Approx. 185 min. (PFD50DLA), Approx. 85 min. (PFD23A)
  • Search Speed Range: Jog mode: -1 to +1 times normal speed / Shuttle mode: -20 to +20 times normal speed:

Inputs / Outputs

  • Reference Input: BNC x 2 (including loop through), HD/SD
    HD Tri-level sync (0.6 Vp-p/75 O/negative), HD/SD
    or SD blackburst/composite sync (0.286 Vp-p/75 O/negative), HD/SD
  • Composite Input:  BNC x 1
    1.0 Vp-p/75 O/negative, SMPTE 170M
  • SDI Input: BNC x 1, HD
    (HD/SD switchable)
    SMPTE 292M (w/embedded audio), HD
    SMPTE 259M (w/embedded audio), HD
  • Analog Audio Input: XLR 3-pin (female) x 4 (channel selectable)
    +4/0/-3/-6 dBu (selectable)
    10 kO, balanced
    CH1 and CH2: switchable phantom powered mic input
  • Time Code Input: BNC x 1, SMPTE time code, 0.5 to 18 Vp-p/3.3 kO/unbalanced
  • Composite Output: BNC x 1
    1.0 Vp-p/75 O/negative, SMPTE 170M ,character On/Off
  • SDI Output:  BNC (x 2), HD
    1: SMPTE 292M (w/embedded audio), HD
    2: SMPTE 292M (w/embedded audio), character On/Off, HD
    BNC x 1, SD
    SMPTE 259M (w/embedded audio), character On/Off, SD
  • HDMI: x1, output
  • Analog Audio Output: XLR 3-pin (male) x 42 (channel selectable)
    +4/0/-3/-6 dBu (selectable), 600 O, Lo-Z, balanced
    CH3 and CH4: switchable analog audio monitor
  • Headphone Output: JM-60 Stereo phone jack x 1
    -13 dBu, 8 O, unbalanced
  • Time Code Output: BNC x 1, SMPTE time code, 1.0 Vp-p/75 O/unbalanced
  • i.Link: IEEE 1394 6-pin x 2*
    1: File Access Mode
    2: (Option: PDBK-202) HDV 1080i/720P IN/OUT
    *AV/C (DV) stream is NOT supported.
  • Ethernet: RJ-45 x 1
    1000Base-T: IEEE802.3ab
    100Base-TX: IEEE802.3u
    10Base-T: IEEE802.3
  • Remote (9P) Input/Output:  D-sub 9-pin (female) x 1, RS-422A
  • DC Input (12V): XLR 4-pin (male) x 1
  • DC Output (12V): 4-pin (female) x 1 DC 12V, 7.5W
  • Maintenance: USB x 2
  • AC Input: x 1, 100V to 240V, 50/60Hz

Video Performance

  • Sampling Frequency: Y: 74.25 MHz, Pb/Pr: 37.125MHz
  • Quantization: 8 bits/sample
  • Error Correction: Reed Solomon Code

Processor Adjustment Range Specifications

  • Video Level: -8 to +3 dB
  • Chroma Level: -8 to +3 dB
  • Setup/Black Level:  ±30 IRE/±210 mV
  • Chroma Phase:  ±30°
  • System Sync Phase:  ± 15 µs
  • System Sync Phase (Fine): 0 to 400 ns
  • System SC Phase: 0 to 400 ns

Audio Performance

  • Sampling Frequency: 48kHz
  • Quantization: 24 bits
  • Frequency Response: 20 Hz to 20 kHz +0.5/-1.0 dB (0 dB at 1 kHz)
  • Dynamic Range: More than 90dB
  • Distortion:  Less than 0.05% (at 1kHz)
  • Headroom: 20/18/16/12 dB (selectable)

Built-in Display

  • Built-in Display: 9" color LCD monitor

Built-in Audio Speaker

  • x2, L/R
