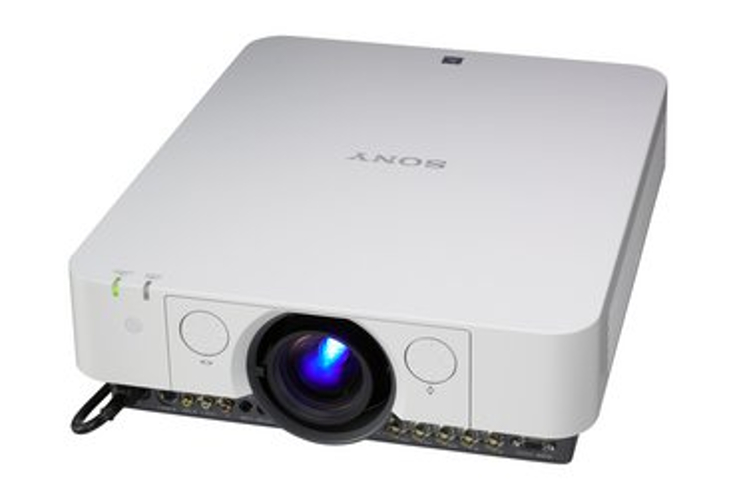

Sony VPL-FX35
5000 Lumen LCD Projector


Designed to fit into almost any situation that needs a high-quality projector...
Learn More

Call for Details

Similar Products

Designed to fit into almost any situation that needs a high-quality projector, Sony's VPL-FX35 is perfect for new installations and for updating older equipment; installers will often be able to re-use existing mounts and fittings. Versatile image adjustability and lens options allow installers to place The VPL-FX35 in locations where other projectors would struggle to work – even in high ambient light.

In addition to all this flexibility, The VPL-FX35 has excellent image capabilities and a long lifespan. Sony’s BrightEra technology improves and maintains color purity throughout the life of the system by protecting the LCD panels against harmful ultra violet light.

There’s no need to worry about connections, either, because The VPL-FX35 has the usual host of inputs.

Simple to use and maintain, extremely functional, and with a low cost-of-ownership, this is an obvious projector choice for venues that demand quality and practicality.

This product comes with PrimeSupport – fast, hassle-free repairs and a helpline offering expert technical advice. Which gives you the peace of mind that Sony is looking after your equipment, and your business.

BrightEra Technology: Sony's BrightEra Panel Technology gives more accurate color rendition, higher brightness and longer lifespan for a lower Total Cost of Ownership

Very High Brightness: Very high brightness for a clearer image in high ambient light. Suitable for larger venues

Wide Zoom Range as Standard: Standard lens has wide zoom capability for more flexibility over positioning of projector, which can be installed closer to or further back from the screen.

Interchangeable Lens: Choose different lenses for increased flexibility

Long Lamp Replacement Time: Fewer visits by maintenance personnel because of longer lamp life

Lamp/Filter Replacement Cycles Synchronized: Synchronised lamp and filter replacement effectively halves the number of visits needed to maintain the projector in peak operating condition

Lower Power Consumption: Lower operating power consumption helps reduce energy consumption and lowers running costs

Multiple Input Types: A wide range of inputs makes it easy to source presentations from almost any type of device including 1080p HD video and up to UXGA digitally from computers.

Monitor Output: External monitor output that allows presenters to see their slides and videos on a smaller screen in their field of view, so that they never have to turn their back on the audience.

Wide Range of Image Adjustment: Wide range of image adjustment allows the projector to be installed in a much wider range of locations. Installers are more likely to be able to use existing mounts, or to work around existing obsrtuctions.

Sony VPL-FX35 Includes:

  • RM-PJ19 Remote Commander (1), Battery : Size AA (R6) / Approx. 18g / x 2
  • Size AA (R6) Batteries (2)
  • AC Power Cord(1)
  • Cable Clamp (2)
  • Quick Reference Manual
  • Warranty Card (1) (outside of box)
  • Security Label (1)
  • Operating Instructions CD-ROM

Sony VPL-FX35 Features:

  • 3 LCD XGA BrightEra Panel
  • Very high brightness: 5,000 Ansi Lumens
  • Standard Lens has wide manual zoom (1.6x) and throw ratio (1.4 to 2.3)
  • Interchangeable Optional Lenses: Z1024, Z1032
  • Wide lens shift range: Vertical: +50%, Horizontal: +/-33%
  • Long lamp replacement time: 3000 - 4000 hours (high/standard)
  • Filter maintenance synchronized with lamp replacement
  • Lower operating power consumption than previous models
  • Wide range of inputs for a variety of source devices
  • D-Sub15 output for external monitor connection

Sony VPL-FX35 Specifications:

  • Display System: 3 LCD System
  • Display Element:
    • Effective Display Size: 0.79" (20.1mm) X3, BrightEra, Aspect Ratio 4:3
    • Effective Pixels: 2,359,296 (1024 X 768 X 3) Pixels
  • Projection Lens:
    • Zoom: Manual (approx. 1.6x)
    • Focus: Manual
    • Lens Shift: Manual, Vertical: Upward 51% to Downward 0% Horizontal: Right33% to Left 33%
    • Light Source: High Pressure Mercury Lamp 275W
    • Recommended Lamp Replacement: Approx. 3000H (Lamp Mode: High) Approx.4000H (Lamp Mode: Standard)
    • Filter Cleaning Cycle: Max. 15000H / At time of Lamp Replacement
    • Screen Size: 40" to 600" (1.02 to 15.24m)
    • Luminous Flux (Brightness): 5000 lm (Lamp Mode: High) 4000lm (Lamp Mode:Standard)
    • Color Luminous Flux (Color Brightness): 5000 lm (Lamp Mode: High) 4000lm (Lamp Mode: Standard)
    • Contrast Ratio: Max. 2000:1
    • Speaker: None
  • Displayable Scanning Frequency:
    • Horizontal: 14 kHz to 93 kHz
    • Vertical: 47 Hz to 93 Hz
  • Display Resolution:
    • Computer Signal Input: Maxium Display Resolution: 1920 X 1200 Dots (Resizing Display) Panel Display Resolution: 1024 vX 768 Dots
    • Video Signal Input: NSTC, PAL, SECAM, 480/60i, 567/50i, 480/60p, 576/50p,720/60p 720/50p, 1080/60i, 1080/50i, 1080/60p 1080/50p
    • Color System: NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60
    • V Keystone Correction: Max. +/- 30°
    • OSD Language: 20 languages (English, Dutch, Italian, German, Spanish, Portuguese, Turkish, Polish, Russian, Swedish, Norwegian, Japanese, Simplified Chinese Traditional Chinese, Korean, Thai, Vietnamese, Arabic, Persian
  • Computer and Video Signal Input/Output:
    • Other Signal Input/Output: RS-232C Connector: D-Sub 15 pin (Female) LAN Connector: RJ45, 10BASE-T/100BASE-TX Control S Input Connector: Stereo MiniJack, Plug in power DC5V
    • Operating Temperature (operating humidity): 32° to 104°F (0° to 40°C)(35 to 85% (No Condensation))
    • Storage Temperature (storage humidity): -4° to 140° F (-20° to 60°C)(10% to 90%)
    • Power Requirements: AC 100 to 240V, 50/60Hz
    • Input A: RGB / Y PB PR Connector: 5BNC (Female) Audio Input Connector: Stereo Mini Jack
    • Input B: RGB Input Connector: Mini D-Sub 15 pin (Female)
    • Input C: DVI-D Input Connector: DVI-D 24 pin (Single Link), supported HDCP
    • S Video In: S Video Input Connector: Mini DIN 4 pin Audio Input Connector: Pin Jack x 2 (Shared with Video In)
    • Output: Monitor Output Connector: Mini D-Sub 15 pin (Female)
  • Power Consumption:
    • AC 100V: Max 380W
    • AC 240V: Max 360W
  • Standby Mode Power Consumption:
    • AC 100V: 11W (Standby Mode: Standard) / 0.15W (Standby Mode: Low)
    • AC 240V: 12W (Standby Mode: Standard) / 0.3W (Standby Mode: Low)
  • Heat Dissipation:
    • AC 100V: 1279 BTU
    • AC 240V: 1263 BTU
    • Safety Regulations: WW Model
    • Body Color: White / Grey
    • Standard Outside Dimensions (WxHxD): Approx. 15 11/32" x 5 13/16" x 18 25/32" (390 x 148 x 477mm)
    • Weight: Approx. 17.7lbs (8.0Kg)
