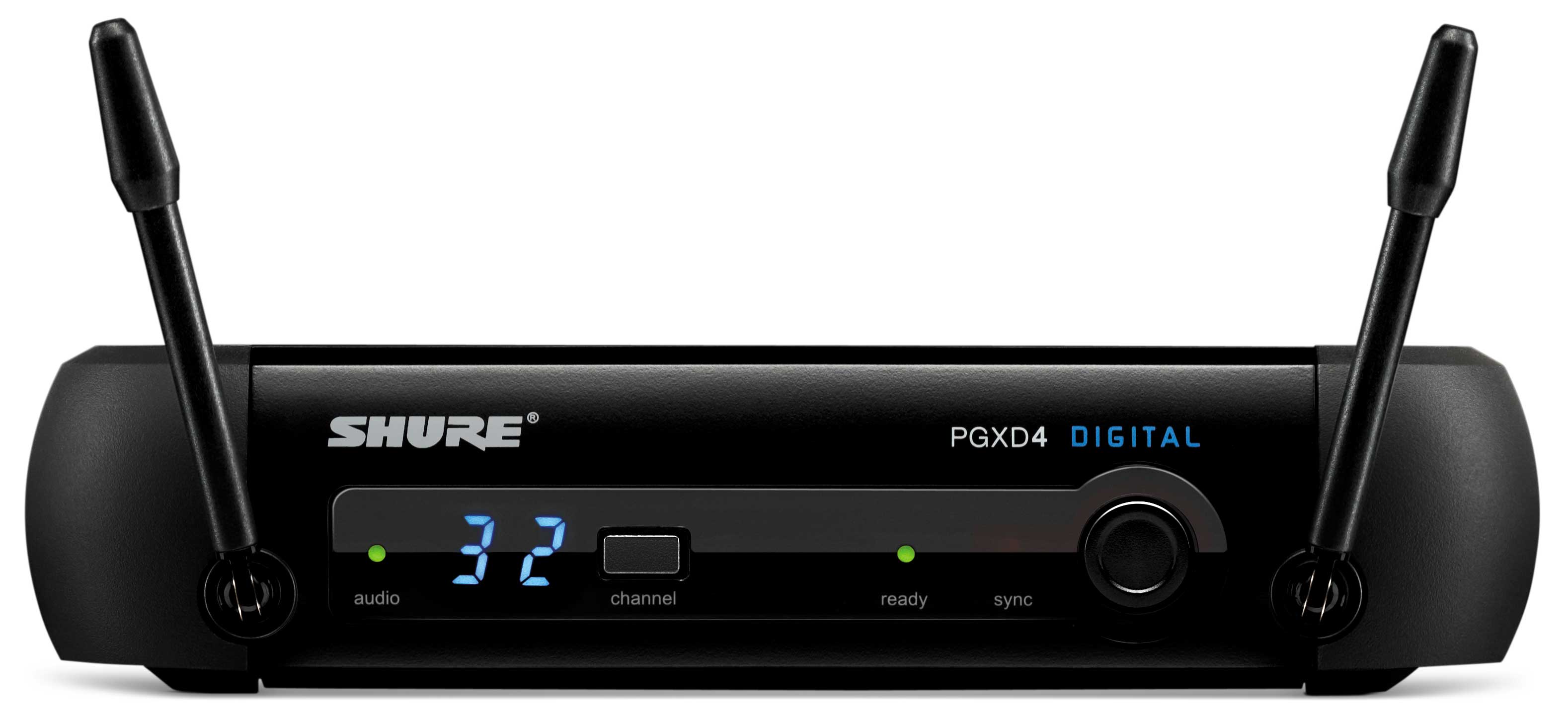

Shure PGXD4
Receiver, Digital Diversity

OUR PART #  PGXD4

Our Price: $195.00
List Price: $244.00
You save 20%! (Low Price Guarantee)
In Stock

PGX Digital adds the clarity of 24-bit digital audio to the famed PGX line of Shure wireless products. Offering tailored wireless solutions for vocalists, guitarists, and presenters, PGX Digital combines the trusted legacy of Shure microphones with state of the art, 24-bit digital wireless technology that delivers strong, clean RF performance. The result is wireless audio that sounds like wired, rock-solid RF signal, and simple setup and operation.

The Shure PGXD4 receiver offers innovative 24-bit, 48 kHz digital audio technology for wireless that sounds like wired. True digital diversity means two antennas and two independent recievers are constantly working to provide rock-solid RF signal, and one touch scan finds a clear frequency instantly, making set up a snap.

Features

  • 24-bit / 48kHz digital technology for incredibly accurate sound
  • Automatic frequency selection locate a clear channel instantly
  • One-touch sync automatically syncs the transmitter and receiver
  • True digital diversity for rock-solid wireless signal reliability
  • Up to 5 compatible channels per frequency band
  • 1/4" and XLR audio outputs
  • Includes padded carrying case for portablility and protection

Specifications

  • Dimensions: 1.6" x 7.125" x 4.1"
  • Weight: 10.2 oz/
  • Housing: ABS
  • Audio Output Level (ref +/- 38kHz deviation, 1kHz tone): XLR Connector (into 3,000 Ohm load) - 2.5dBV / 1/4" connector (into 10,000 Ohm load) +10dBV
  • Impedance: XLR = 50 Ohm, 1/4" = 50 Ohm
  • Sensitivity: -102dBm
  • Image Reception: > 70dB, typical
  • XLR Output: Impedance balanced: Pin 1: Ground (cable shield), Pin 2: Audio, Pin 3: No Audio
  • Audio LED: Red = 2dB below clip, Amber = 12dB below clip, Green = 50dB below clip
  • Power Requirements: 12-18VDC at 150mA, supplied by external power supply
  • Pin Assignments: XLR - 1 = ground, 2 = hot, 3 = cold / 1/4" TRS - Tip = audio, Ring = no audio, Sleeve = ground.



Shure PGXD4
Receiver, Digital Diversity

OUR PART #  PGXD4

Product Information:

PGX Digital adds the clarity of 24-bit digital audio to the famed PGX line of Shure wireless products. Offering tailored wireless solutions for vocalists, guitarists, and presenters, PGX Digital combines the trusted legacy of Shure microphones with state of the art, 24-bit digital wireless technology that delivers strong, clean RF performance. The result is wireless audio that sounds like wired, rock-solid RF signal, and simple setup and operation.

The Shure PGXD4 receiver offers innovative 24-bit, 48 kHz digital audio technology for wireless that sounds like wired. True digital diversity means two antennas and two independent recievers are constantly working to provide rock-solid RF signal, and one touch scan finds a clear frequency instantly, making set up a snap.

Features

  • 24-bit / 48kHz digital technology for incredibly accurate sound
  • Automatic frequency selection locate a clear channel instantly
  • One-touch sync automatically syncs the transmitter and receiver
  • True digital diversity for rock-solid wireless signal reliability
  • Up to 5 compatible channels per frequency band
  • 1/4" and XLR audio outputs
  • Includes padded carrying case for portablility and protection

Specifications

  • Dimensions: 1.6" x 7.125" x 4.1"
  • Weight: 10.2 oz/
  • Housing: ABS
  • Audio Output Level (ref +/- 38kHz deviation, 1kHz tone): XLR Connector (into 3,000 Ohm load) - 2.5dBV / 1/4" connector (into 10,000 Ohm load) +10dBV
  • Impedance: XLR = 50 Ohm, 1/4" = 50 Ohm
  • Sensitivity: -102dBm
  • Image Reception: > 70dB, typical
  • XLR Output: Impedance balanced: Pin 1: Ground (cable shield), Pin 2: Audio, Pin 3: No Audio
  • Audio LED: Red = 2dB below clip, Amber = 12dB below clip, Green = 50dB below clip
  • Power Requirements: 12-18VDC at 150mA, supplied by external power supply
  • Pin Assignments: XLR - 1 = ground, 2 = hot, 3 = cold / 1/4" TRS - Tip = audio, Ring = no audio, Sleeve = ground.
