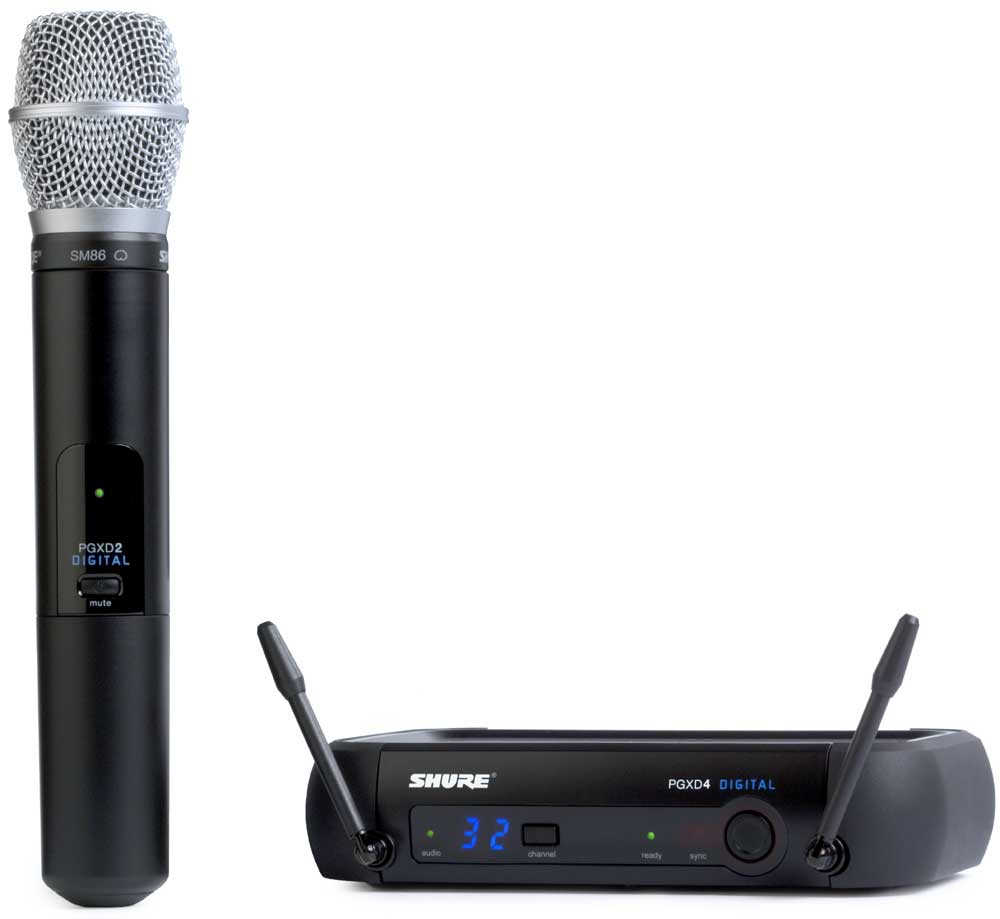

Shure PGXD24/SM86
Wireless Digital Microphone System w/SM86 Microphone

OUR PART #  PGXD24/SM86

Our Price: $429.00
List Price: $536.00
You save 20%! (Low Price Guarantee)
In Stock

Recommended Accessories

PGX Digital Wireless Microphone System adds the clarity of 24-bit digital audio to the famed PGX line of Shure wireless products. Offering tailored wireless solutions for vocalists, guitarists, and presenters, PGX Digital combines the trusted legacy of Shure microphones with state of the art, 24-bit digital wireless technology that delivers strong, clean RF performance. The result is wireless audio that sounds like wired, rock-solid RF signal, and simple setup and operation.

The PGX Digital SM86 Vocal Wireless System from Shure adds the clarity of 24-bit digital audio to the legacy of trusted Shure microphone options for wireless performance. This system includes the SM86, a rugged cardioid condenser microphone with extended high
frequency response for smooth reproduction of lead vocals. Included: PGXD4 wireless receiver, SM86 microphone with PGXD2 handheld transmitter, padded carrying case, microphone clip.

PGXD2 Handheld Transmitter with SM86 Features:

  • Cardioid condenser microphone with extended high frequency response forsmooth reproduction of lead vocals
  • Power, mute, and battery status LED
  • Up to 10 hours of continuous use from 2 AA batteries
  • 200 ft (60 m) operating range
  • Rugged construction for reliable performance show after show

PGXD4 Wireless Receiver Features:

  • 24-bit / 48 kHz digital technology for incredibly accurate sound
  • Automatic frequency selection locates a clear channel instantly
  • One-touch sync automatically syncs the transmitter and receiver
  • Durable construction for reliable performance show after show
  • True digital diversity delivers rock-solid wireless signal reliability
  • Up to 5 systems can be used at once
  • ¼” and XLR audio outputs
  • Padded carrying case for portability and protection (included)

PGXD2 Specifications:

  • Audio Input Level:
    • +5dBV maximum at -10dB gain position
    • -5dBV maximum at 0dB gain position
  • Gain Adjustment Range: 10dB
  • RF Output Level: 10mW maximum (dependent on applicable countryregulations)
  • Housing: Molded PC/ABS handle and battery cup
  • Dimensions (including SM58 cartridge): 10" x 2" x 2"
  • Weight: 10.2 oz without batteries
  • Power: 2 "AA" size batteries
  • Battery Life: Up to 9 hours

PGXD4 Specifications:

  • Dimensions (HxWxD): 40 mm x 181 mm x 104 mm (1.6 x 7.125 x 4.1 in.)
  • Weight: 289 g (10.2 oz.)
  • Housing: ABS
  • Audio Output Level: (ref. ± 38 kHz deviation, 1 kHz tone):
    • XLR connector (into 3,000-Ohm load): -2.5 dBV
    • 1/4 inch connector (into 10,000-Ohm load): +10 dBV
  • Impedance:
    • XLR: 50 Ohm
    • 1/4": 50 Ohm
  • Sensitivity: -102 dBm @ 10-5 BER
  • Image Rejection: > 70 dB, typical
  • XLR output (Impedance balanced):
    • Pin 1: Ground (cable shield)
    • Pin 2: Audio
    • Pin 3: No Audio
  • Audio LED:
    • Red: 2 dB below clip
    • Amber: 12 dB below clip
    • Green: 50 dB below clip
  • Power Requirements:12-18Vdc at150 mA,supplied by external power supply
  • Pin Assignments:
    • XLR: 1=ground, 2=hot, 3=cold 6.35 mm
    • (1/4”) TRS: Tip=audio, Ring=no audio, Sleeve=ground

System Specifications:

  • Operating Range: 60 m (200 ft.) under typical conditions.
    • Note: actual range depends on RF signal absorption, reflection and interference.
  • RF Carrier Range:
    • X8: 902–928 MHz
    • X8A: 915–928 MHz
    • X8B: 902–907.5 MHz
    • 915–928 MHz (Note: varies by region)
    • Audio Frequency Response (± 2dB): 20-20,000 MHz
  • System Gain:
    • PGXD2:
      • 0 dB at minimum gain setting, 6.35 mm (1/4“) connector
      • -12.5 dB at minimum gain setting, XLR output
    • PGXD1:
      • -54.5 dBV/Pa at -10 dB gain setting, with SM58 catridge, XLR output
  • Total Harmonic Distortion: <0.02%, A-weighted, typical (Ref. 1 kHz, 6dB below input clip)
  • Dynamic Range: >108 dB A-weighted
  • Operating Temperature Range: -18°C (0°F) to +50°C (+122°F). Note: batterycharacteristics may limit this range.
