Shure PGXD24/PG58-X8 Digital Wireless System With PGA58 Handheld Microphone

OUR PART #: PGXD24/PG58 MFR #: PGXD24/PG58-X8

Copied to clipboard

The PGX Digital PG58 Vocal Wireless System from Shure adds the clarity of 24-bit digital audio to the legacy of trusted Shure microphone options for wireless performance. ...Read more

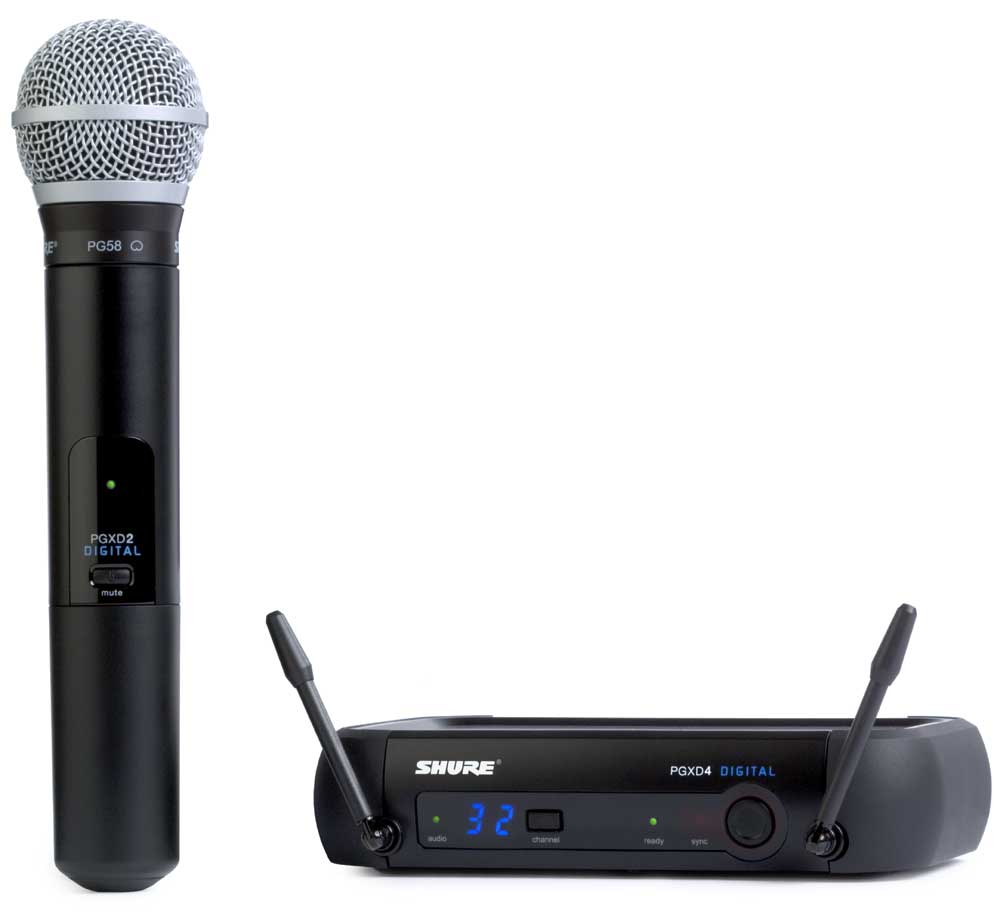

Shure PGXD24/PG58-X8 Digital Wireless System With PGA58 Handheld Microphone Image 1
Shure PGXD24/PG58-X8 Digital Wireless System With PGA58 Handheld Microphone
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The PGX Digital PG58 Vocal Wireless System from Shure adds the clarity of 24-bit digital audio to the legacy of trusted Shure microphone options for wireless performance. This system includes the PG58, a professional quality microphone ideal for lead and backup vocal performance applications. Included: PGXD4 wireless receiver, PG58 microphone with PGXD2 handheld transmitter, padded carrying case, microphone clip. PGX Digital adds the clarity of 24-bit digital audio to the famed PGX line of Shure wireless products. Offering tailored wireless solutions for vocalists, guitarists, and presenters, PGX Digital combines the trusted legacy of Shure microphones with state of the art, 24-bit digital wireless technology that delivers strong, clean RF performance. The result is wireless audio that sounds like wired, rock-solid RF signal, and simple setup and operation.

Includes

  • PGXD4 Wireless Receiver
  • PG58 Microphone
  • PGXD2 Handheld Transmitter
  • Padded carrying case
  • Microphone clip

Features

  • Includes PGXD4 wireless receiver and PGXD2 transmitter with PGa58 mic cartridge
  • 200' operating range
  • 24-bit/48kHz digital technology for incredibly accurate sound
  • Automatic frequency selection
  • Pure digital clarity and rock-solid reliability

Specifications

  • PGXD System
    • Working RangeLine of Sight: 60m (200 ft)
    • RF Carrier Range: 902–928 MHz
    • Audio Frequency Response: 20 to 20,000 Hz
    • System Gain:
      • 6.35 mm Connector: 0 dBat minimum gain setting
      • XLR output: -12.5 dBat minimum gain setting
    • Total Harmonic Distortion:
    • Dynamic Range: >108 dB, A-weighted
    • Operating Temperature Range: -18°C (0°F) to +50°C (122°F)
    • Transmitter Audio Polarity: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of low-impedance output and the tip of the high impedance 1/4-inch output
  • PGXD2 Handheld Transmitter
    • Audio Input Level:
      • at minimum gain setting: +10 dBVmaximum
      • at maximum gain setting: -16 dBVmaximum
    • Gain Adjustment Range: 26 dB
    • Input Impedance: 1 MΩ
    • RF Output Power: 10 mW
    • Pin Assignments:
      • 1) ground (cable shield)
      • 2) + 5 V Bias
      • 3) audio
      • 4) On instrument adapter cable, pin 4 floats
    • Dimensions: 108 mm x 64 mm x 19 mm
    • Weight: 128 g (4.5 oz.) (without batteries)
    • Housing: Molded Polycarbonate Case
    • Power Requirements: 2 AA size alkaline or rechargeable batteries
    • Battery Life: up to 10 hours
  • PGXD4 Wireless Receiver
    • Dimensions: 40 mm x 181 mm x 104 mm
    • Weight: 289 g (10.2 oz.)
    • Housing: ABS
    • Sensitivity: -102 dBmat 10-5 BER
    • Power Requirements: 12-18 V DC at 150 mA, supplied by external power supply (tip positive)
    • Audio LED:
      • Red: 2
      • Amber: 12
      • Green: 50
    • Configuration: Impedance Balanced
    • Maximum Audio Output Level
      • XLR connector: -2.5 dBV
      • 6.35 mm connector: +10 dBV
    • Impedance
      • XLR: 50 Ω
      • 6.35 mm connector: 50 Ω
    • Pin Assignments
      • XLR: 1=ground, 2=audio, 3=no audio
      • 6.35 mm (1/4") TRS: Tip=audio, Ring=no audio, Sleeve=ground
