Shure PGXD24/BETA58-X8 Digital Wireless System with Beta 58A Handheld Mic

OUR PART #: PGXD24/BETA58 MFR #: PGXD24/BETA58-X8

Copied to clipboard

PGX Digital adds the clarity of 24-bit digital audio to the famed PGX line of Shure wireless products. ...Read more

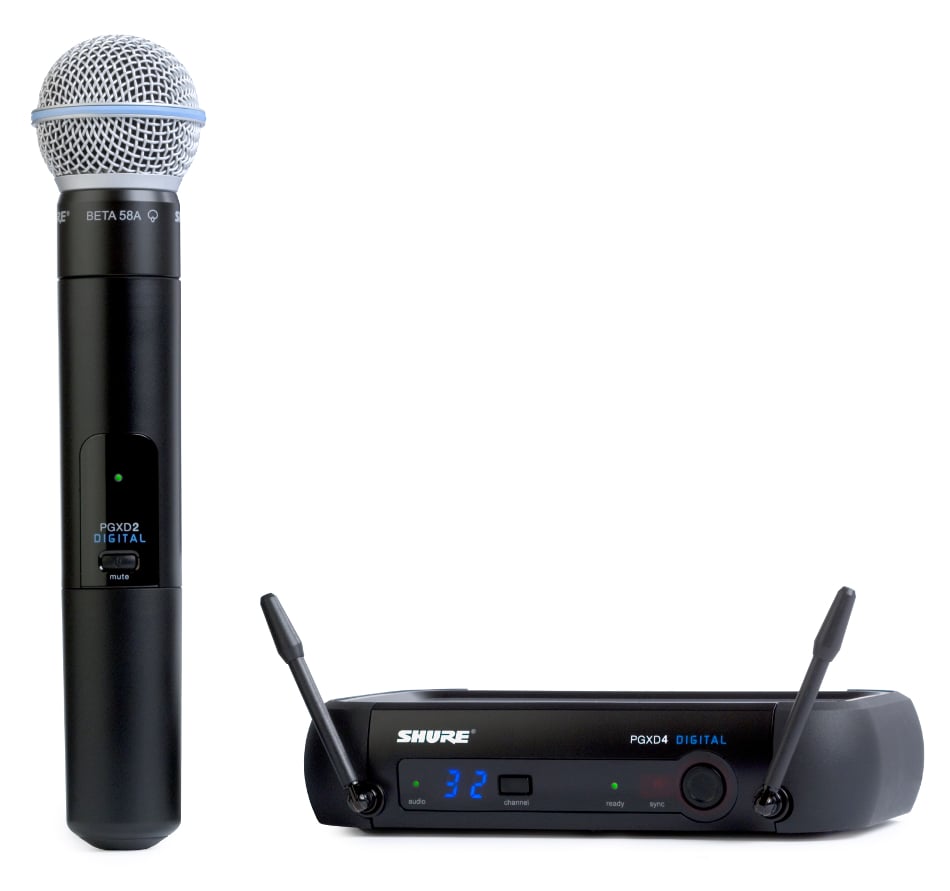

Shure PGXD24/BETA58-X8 Digital Wireless System With Beta 58A Handheld Mic Image 1
Shure PGXD24/BETA58-X8 Digital Wireless System With Beta 58A Handheld Mic
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

PGX Digital adds the clarity of 24-bit digital audio to the famed PGX line of Shure wireless products. Offering tailored wireless solutions for vocalists, guitarists, and presenters, PGX Digital combines the trusted legacy of Shure microphones with state of the art, 24-bit digital wireless technology that delivers strong, clean RF performance. The result is wireless audio that sounds like wired, rock-solid RF signal, and simple setup and operation.

The PGX Digital Beta 58A® Vocal Wireless System from Shure adds the clarity of 24- bit digital audio to the legacy of trusted Shure microphone options for wireless performance. This system includes the Beta 58A, a precision-engineered supercardioid dynamic microphone optimized for lead vocal applications. Included: PGXD4 wireless receiver, Beta 58A microphone with PGXD2 handheld transmitter, padded carrying case, microphone clip.

Features

  • PGXD4 Wireless Receiver:
    • 24-bit / 48 kHz digital technology for incredibly accurate sound
    • Automatic frequency selection locates a clear channel instantly
    • One-touch sync automatically syncs the transmitter and receiver
    • True digital diversity delivers rock-solid wireless signal reliability
    • Up to 5 systems can be used at once
    • 1/4” and XLR audio outputs
    • Included padded carrying case for portability and protection
  • PGXD2 Handheld Transmitter with Beta58A:
    • Precision-engineered supercardioid dynamic microphone optimized for lead vocal applications
    • Power, mute, and battery status LED
    • Up to 10 hours of continuous use from 2 AA batteries
    • 200 ft (60 m) operating range
    • Rugged construction for reliable performance show after show

Specifications

  • PGXD24/BETA58 System
    • Operating Range: 200 ft. (60 m) under typical conditions. (Actual range depends on RF signal absorption, reflection and interference.)
    • RF Carrier Range: X8: 902–928 MHz, X8A: 915–928 MHz, X8B: 902–907.5 MHz, 915–928 MHz (Note: varies by region)
    • Audio Frequency Response (± 2dB): 20 Hz - 20 kHz
    • System Gain: -54.5 dBV/Paat –10 dB gain setting
    • Total Harmonic Distortion: < 0.02%, A-weighted, typical
    • Dynamic Range: > 108 dB A-weighted
    • Operating Temperature Range: -18°C (0°F) to +50°C (+122°F). Note: battery characteristics may limit this range.
    • Audio Input Level: +5dBV maximum at -10dB gain position / -5dBV maximum at 0dB gain position
  • Shure PGXD2 Handheld Transmitter
    • Audio Input Level
      • at minimum gain setting: +10 dBVmaximum
      • at maximum gain setting: -16 dBVmaximum
    • Gain Adjustment Range: 26 dB
    • Input Impedance: 1 MΩ
    • RF Output Power: 10 mW
    • Pin Assignments
      • 1) ground (cable shield)
      • 2) + 5 V Bias
      • 3) audio
      • 4) On instrument adapter cable, pin 4 floats
    • Dimensions: 108 mm x 64 mm x 19 mm
    • Weight: 128 g (4.5 oz.) (without batteries)
    • Housing: Molded Polycarbonate Case
    • Power Requirements: 2 AA size alkaline or rechargeable batteries
    • Battery Life: up to 10 hours
  • Shure PGXD4 Wireless Receiver
    • Dimensions: 40 mm x 181 mm x 104 mm
    • Weight: 289 g (10.2 oz.)
    • Housing: ABS
    • Sensitivity: -102 dBmat 10-5 BER
    • Power Requirements: 12-18 V DC at 150 mA, supplied by external power supply (tip positive)
    • Audio LED
      • Red - 2
      • Amber - 12
      • Green - 50
    • Configuration: Impedance Balanced
    • Maximum Audio Output Level
      • XLR connector: -2.5 dBV
      • 6.35 mmConnector: +10 dBV
    • Impedance
      • XLR: 50 Ω
      • 6.35 mm Connector: 50 Ω
    • Pin Assignments
      • XLR: 1=ground, 2=audio, 3=no audio
      • 6.35 mm (1/4") TRS: Tip=audio, Ring=no audio, Sleeve=ground
