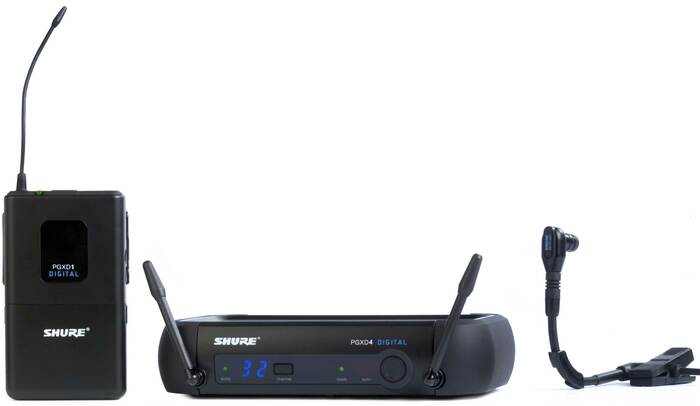

Shure PGXD14/BETA98H
Wireless Digital System with Beta98H Clip-On Instrument Microphone

OUR PART #:  PGXD14/BETA98H

The PGXD14/BETA98H from Shure is a wireless instrument microphone system that's part of their PGX Digital system series.
Learn More
Our Price: $479.00
List Price: $599.00
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Shure PGXD14/BETA98H
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The PGXD14/BETA98H from Shure is a wireless instrument microphone system that's part of their PGX Digital system series.

Adding the clarity of 24-bit digital audio to the famed PGX line of Shure wireless products, the PGX Digital systems offer tailored wireless solutions for vocalists, guitarists, and presenters. PGX Digital merges the trusted legacy of Shure microphones with state of the art, 24-bit digital wireless technology to deliver strong, clean RF performance. The result is rock-solid RF wireless audio that sounds like wired, along with simple setup and operation.

Shure PGXD14/BETA98H Includes:

  • PGXD4 wireless receiver
  • PGXD1 bodypack transmitter
  • WB98H/C clip-on instrument microphone (with integrated clip and gooseneck)
  • Power supply
  • 2 AA batteries
  • Carrying case
  • User guide

Shure PGXD14/BETA98H System Features:

  • Operating Range*: 200ft (60m) under typical conditions.
    *Note: Actual range depends on RF signal absorption, reflection, and interference.
  • RF Carrier Range:
    • X8: 902–928 MHz
    • X8A: 915–928 MHz
    • X8B: 902–907.5 MH, 915–928 MHz (Note: varies by region)
    • Audio Frequency Response (± 2dB): 20-20,000 MHz
  • System Gain:
    • PGXD1: -54.5 dBV/Pa at -10 dB gain setting, with SM58 catridge, XLR output
  • Total Harmonic Distortion: <0.02%, A-weighted, typical (Ref. 1 kHz, 6dB below input clip)
  • Dynamic Range: >108 dB A-weighted
  • Operating Temperature Range*: 0° F (-18° C) to +122° F (+50° C)
    *Note: battery characteristics may limit this range.

PGXD1 Bodypack Transmitter with WB98H/C Clip-On Instrument Microphone:

  • Miniature precision-engineered cardioid condenser microphone with integrated gooseneck
  • Power, mute, and battery status LED
  • Up to 10 hours of continuous use from 2 AA batteries
  • 200ft (60 m) operating range
  • 26 dB of continuously adjustable gain to match variable input levels
  • Rugged construction for reliable performance show after show
  • Low profile bodypack, easily clips onto belts or clothing

PGXD4 Wireless Receiver:

  • 24-bit / 48 kHz digital technology for incredibly accurate sound
  • Automatic frequency selection locates a clear channel instantly
  • One-touch sync automatically syncs the transmitter and receiver
  • True digital diversity for rock-solid wireless signal reliability
  • Up to 10 compatible channels per frequency band
  • ¼” and XLR audio outputs

Shure PGXD14/BETA98H System Specifications:

PGXD1 Bodypack Transmitter with WB98H/C Clip-On Instrument Microphone:

  • Audio Input Level:
    • +10 dBV maximum, at minimum gain setting
    • -16 dBVmaximum, at maximum gain setting
  • Gain Adjustment Range: 26 dB
  • Input Impedance: 1 M ohms
  • RF Output Level: 10 mW maximum (dependent on applicable country regulations)
  • Dimensions (HxWxD): 4.25" x 2.50" x 0.75" (108 x 64 x 19mm)
  • Weight: 4.5 oz (128 g) without batteries
  • Housing: Molded polycarbonate case
  • Power Requirements: 2 “AA” size
  • Battery Life: Up to 10 hours

PGXD4 Wireless Receiver:

  • Dimensions (HxWxD): 1.6" x 7.125" x 4.1" (40 x 181 x 104mm)
  • Weight: 289 g (10.2 oz.)
  • Housing: ABS
  • Audio Output Level (ref. ± 38 kHz deviation, 1 kHz tone):
    • XLR connector (into 3,000-Ohm load): -2.5 dBV
    • ¼" connector (into 10,000-Ohm load): +10 dBV
  • Impedance: XLR: 50 Ohms / ¼": 50 Ohms
  • Sensitivity: -102 dBm @ 10-5 BER
  • Image Rejection: > 70 dB, typical
  • XLR output (Impedance balanced):
    • Pin 1: Ground (cable shield)
    • Pin 2: Audio
    • Pin 3: No Audio
  • Audio LED:
    • Red: 2 dB below clip
    • Amber: 12 dB below clip
    • Green: 50 dB below clip
  • Power Requirements: 12-18 VDC at 150 mA, supplied by external power supply
  • Pin Assignments:
    • XLR: 1=ground, 2=hot, 3=cold
    • ¼" (6.35mm) TRS: Tip=audio, Ring=no audio, Sleeve=ground
