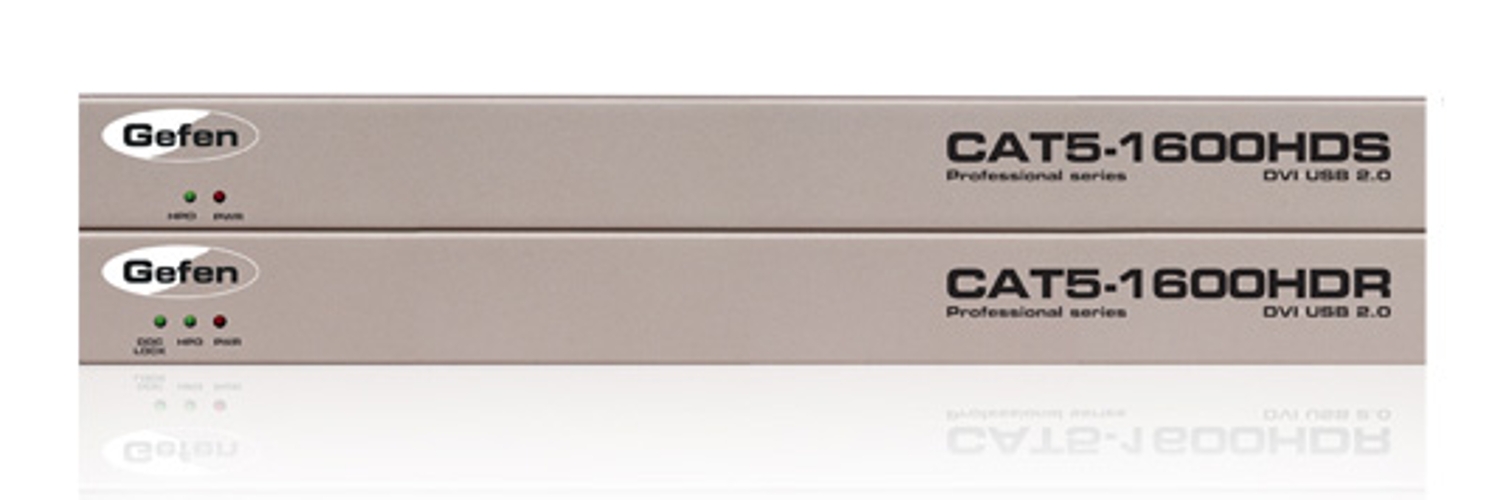

Gefen Inc EXT-CAT5-1600HD
Extender DVI KVM USB

OUR PART #:  EXT-CAT5-1600HD

Extend DVI and USB 2.0 peripherals with the Gefen CAT5-1600HD KVM extender using two CAT-5e/CAT6 cables.
Learn More
Our Price: $1,647.00
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Gefen Inc EXT-CAT5-1600HD
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Extend DVI and USB 2.0 peripherals with the Gefen CAT5-1600HD KVM extender using two CAT-5e/CAT6 cables.  The unit includes a built-in 4-port USB 2.0 hub located on the Receiver unit and gives complete computer access control at the remote location.

Gefen Inc. EXT-CAT5-1600HD Includes:

  • Cat5-1600HD sender unit
  • Cat5-1600HD receiver unit
  • 6 foot DVI to DVI cable
  • 6 foot USB 2.0 cable
  • Two 5V power supplies with locking power connectors
  • Set of rack ears.

Gefen Inc. EXT-CAT5-1600HD Features:

  • Extends any DVI compliant device up to 200 feet (60 meters) from the computer at 1920x1200
  • Extends USB 2.0 compliant devices up to 300 feet
  • DVI is transmitted in digitally for zero signal loss over CAT5 cable
  • Supports video resolutions up to 1080p and 1920x1200
  • HDCP complaint for viewing for copy-protected video content (i.e.,Blu-ray)
  • Supports DDWG standard for DVI compliant monitors
  • Supports legacy USB1.1 devices
  • Includes rack ears.

Gefen Inc. EXT-CAT5-1600HD Specifications:

  • Video Amplifier Bandwidth: 164 MHz
  • Single Link Range: 1080p, 1920x1200
  • Input Video Signal: 1.2 Volts p-p
  • Input DDC Signal: 5 Volts p-p (TTL)
  • DVI Connector: DVI-I (29 pin) female (DVI-D digital signal only)
  • USB Input (sender): USB type "B" connecotr
  • USB Output (receiver): four USB type "A" connectors
  • Link Connectors (2): RJ-45 Shielded
  • Power Supply: 5V DC / 1A each
  • Power Consumption: 10 Watts (max.) per power supply
  • Dimensions (WxHxD): 17" x 1.75" x 4.375"

NOTE: The Gefen CAT5-1600HD is HDCP compliant, enabling the viewing of protected content on the remote extended display. It supports digital DVI-D only, not analog DVI-A. Sources and connecting cables must be DVI-D compatible.
