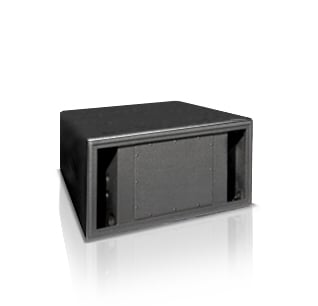

JBL PD5122
Dual 12" Loudspeaker

OUR PART #:  PD5122

The JBL PD5122 is designed for use as a flown or ground supported...
Learn More
Our Price: $2,752.00
Write the first review.
JBL PD5122
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The JBL PD5122 is designed for use as a flown or ground supported, high-power low-frequency modile used in conjunction with mid/high-only or full-range systems of the PD5000 series.

  • Dual high power 300mm (12") low frequency drivers
  • Designed to extend LF pattern control of PD5322 systems
  • Slot-loaded configuration duplicates LF performance of PD5322

JBL PD5122 Specifications:

  • Frequency Range: 41Hz - 1kHz (-10dB)
  • Frequency Response: 49Hz to 300kHz
  • Max SPL:  128 d B-SPL cont avg (134 peak)
  • Input Modes:  DriversParallel / Drivers Discrete
  • Sensitivity: 116dB-SPL
  • Low Frequency Driver:  2x JBL 2206H 300 mm (12") VGC drivers with 100 mm (4") voice coil with minimal power compression and low distortion
  • For additional specifications, please see spec sheet
