Sachtler FSB8
Fluid Head Only, 75mm 0707


Our Price: $1,575.00
List Price: $1,750.00
You save 10%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Quality for (H)DV-Users: The FSB 8. The sturdy and reliable FSB 8 completes Sachtler's FSB-Range of 75mm heads, extending the payload range to 19.8 lbs (9 kg), well suited for (H)DV camcorders in industrial, newsgathering and education applications. The FSB 8 provides a 10-stage counterbalance, as well as five steps of drag (plus 0) for both tilt and pan. The fluid head is engineered with Sachtler's well-known technology, including its patented counterbalance switch mechanism, Speedbalance and Sideload technology, which allows quick mounting and unmounting of the camcorder for on-the-go assignments.


  • Weight: 4.7kbs
  • Payload: 2-20lbs
  • Sliding Range - plate: 4.7"
  • Counterbalance: In 10 steps
  • Grades of Drag: 5 each horizontal and vertical + 0
  • Tilt Range: +90° / -75°
  • Temperature Range: -40°F to +140°F
  • Camera Fitting: Sideload plate S
  • Tripod/Pedestal Fitting: 75mm bowl, integrated flat base fitting
  • Pan Bar: 1, Type DV 75
  • Level: Self-Illuminating Touch Bubble
  • Batteries Level: 1 x CR2032

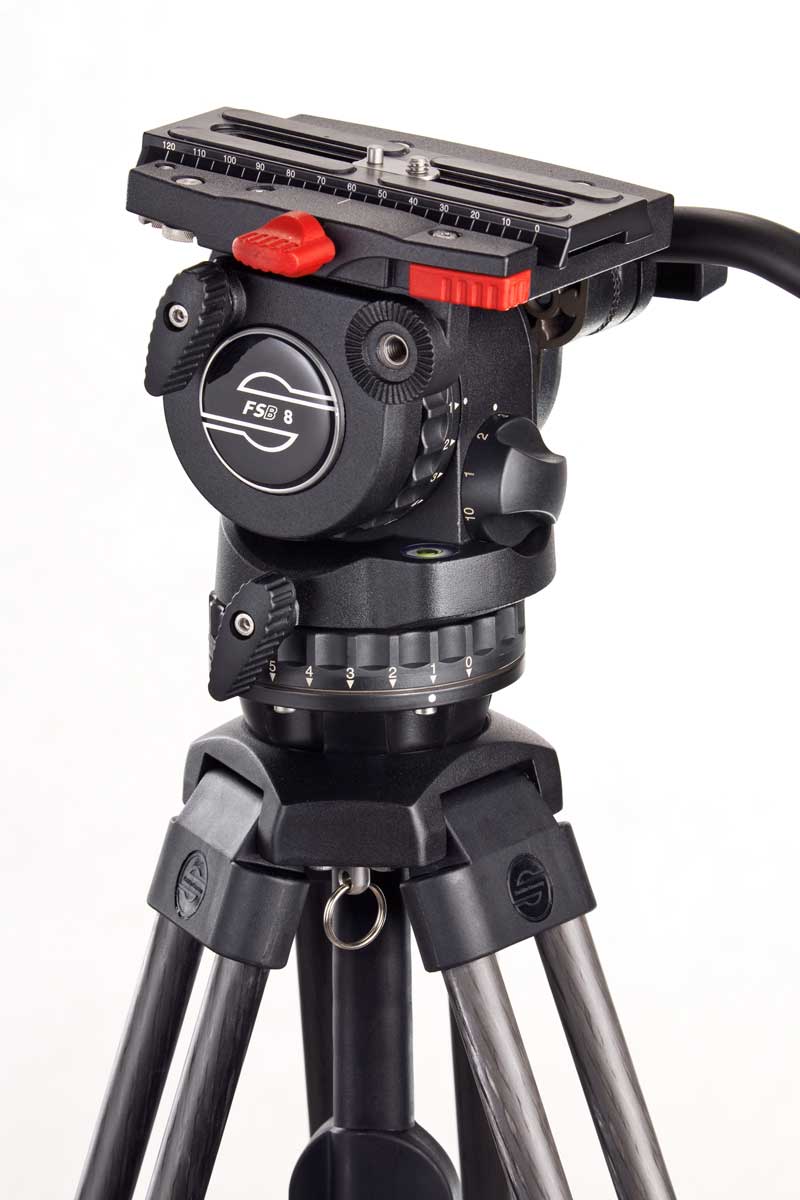

[Shown with Tripod, not included]
