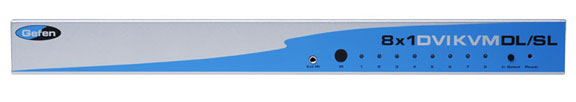

Gefen Inc EXT-DVIKVM-841DL
8x1 DVI KVM Switcher

OUR PART #:  EXT-DVIKVM-841DL

Gefen's 8x1 DVI KVM DL switcher provides you with greater flexibility in integrating cross-platform computer equipment easily and without networking.
Learn More
Our Price: $1,235.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Gefen Inc EXT-DVIKVM-841DL
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Gefen's 8x1 DVI KVM DL switcher provides you with greater flexibility in integrating cross-platform computer equipment easily and without networking.  It enables you to switch easily and reliably between any combination of eight DVI-DL (dual link digital cisual interface) computers using one DVI-DL display.  The 8x1 DVI KVM DL switcher also supports USB 2.0 for USB keyboard/mouse and other high-speed peripherals.  Audio is switched for each computer as well, allowing for the creation of multimedia desktop environments, and you can even choose between a Mac or PC keyboard/video/mouse combination.  Switching can be controlled through either the included IR remote or the front panel push buttons.

Features:

  • Supports EDID management (local or pass-through)
  • Switches easily between any eight DVI-DL computer with USB 2.0 and audio
  • Maintains highest resolution single link and dual link video
  • Saves space on your desktop
  • Use either PC or Mac USB keyboard/mouse
  • IR remote (included)
  • Supports DDWG standards for DVI monitors
  • Includes rack ears

Specifications:

  • Video Amplifier Bandwidth: 165 MHz x 2
  • Input Video Signal: 1.2 Volts p-p
  • Input DDC Signal: 5 Volts p-p (TTL)
  • Max Resolutions: 1920 x 1200 (single link), 3840 x 2400 (dual link)
  • DVI Connector: DVI-I 29 Pin female (digital only)
  • USB Input Connection: Type B
  • USB Output Connection: Type A
  • Audio Connector 3.5mm mini stereo
  • RS-232 port: DB9
  • Rackmountable: 1U rack space
