West Penn 226-500-BLACK

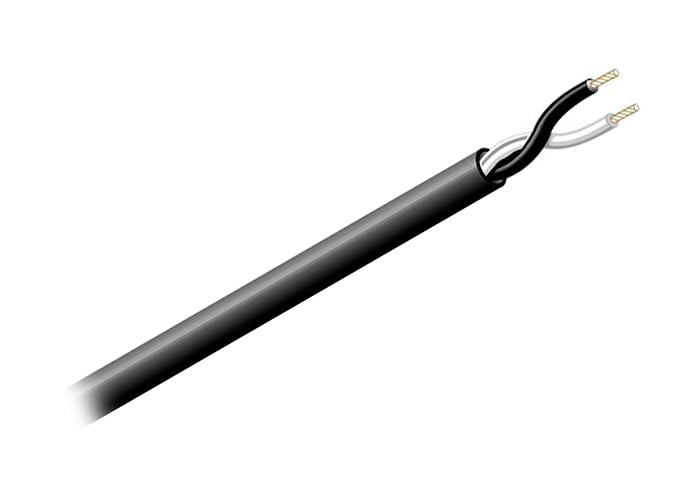

Wire, 2 Conductors, 14 Gauge, Stranded, Black Jacket, 500'

OUR PART #:  226-500-BLACK

This 14/2 wire features stranded bare copper conductors and black PVC jacket.
Learn More
Our Price: $139.95
List Price: $140.84

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

West Penn 226-500-BLACK
Qty:
In Stock
Similar Products

This 14/2 wire features stranded bare copper conductors and black PVC jacket. It is ideal for indoor applications such as intercoms, security, sound, audio, background music and power limited control circuits. 500' spool.

Specifications

Contruction Parameters

  • Conductor: 14 AWG Bare Copper
  • Stranding: 19x27
  • Insulation Material: PVC
  • Insulation Thickness: 0.010'' Nom.
  • Number of Conductors: 2
  • Shield: None
  • Drain: None
  • Jacket Material: PVC
  • Jacket Thickness: 0.015'' Nom.
  • Overall Cable Diameter: 0.234'' Nom.
  • Approximate Cable Weight: 36.2 Lbs/1M' Nom.
  • Flame Rating: UL 1666 Riser Flame Test

Electrical & Environmental Properties

  • Temperature Rating: -20°C To +60°C
  • Operating Voltage: 150 V RMS
  • Max.Capacitance Between Conductors @ 1 KHz: 31 pf/ft Nom.
  • DC Resistance per Conductor @ 20deg C: 2.7 Ohms/1M' Nom.
  • Insulation Colors: Black , White
  • Jacket Color: Black
  • RoHS Compliant: Yes

Mechanical Properties

  • Max. Recommended Pull Tension: 59 lbs.
  • Min. Bend Radius (Install): 2.25”
