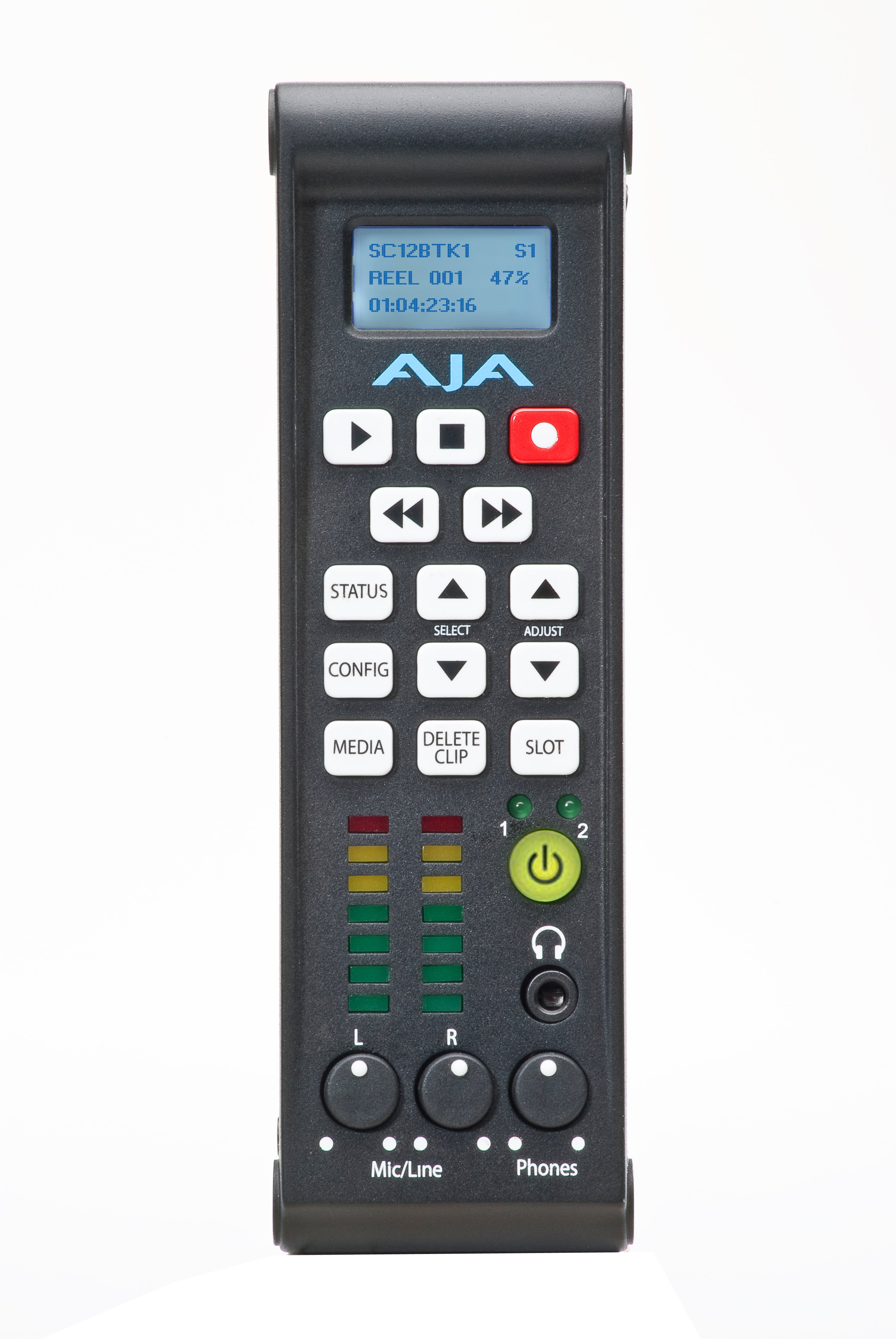

AJA Video Systems Inc Ki Pro Mini
Portable Digital File Recorder with AC Adapter

OUR PART #:  KI-PRO-MINI

The AJA Ki Pro Mini is the smallest and simplest way of connecting production and post, anywhere shooting takes you.
Learn More
Our Price: $1,495.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc Ki Pro Mini
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The AJA Ki Pro Mini is the smallest and simplest way of connecting production and post, anywhere shooting takes you. With a miniature form factor that makes for the smallest camera and recorder package available, Ki Pro Mini is powerful, supporting all four types of Apple ProRes 422 (including HQ, LT and Proxy). The newest member of the award winning Ki Pro family, Ki Pro Mini simplifies the link between production and post by unobtrusively fitting in small spaces and acquiring on the best codec for use with Apple Final Cut Studio, from any SDI or HDMI camera, regardless of format. With its high quality digital connectivity, you've got the perfect solution for portable on-set digital capture.

  • Extreme Portability for any shooting environment
  • 10-bit full raster recording to Apple ProRes 422 SD and HD formats
  • Apple ProRes 422 (HQ)
  • Apple ProRes 422
  • Apple ProRes (LT)
  • Apple ProRes (Proxy)
  • Record Edit-Ready SD/HD files from any camera to Compact Flash (CF) cards
  • Skip log and capture with instant mounting of native OSX media
  • Professional connectivity through SD/HD SDI and HDMI I/O

AJA's Ki Pro Mini was designed as a miniature field recorder for creating "ready- to-edit" professional digital video. Ki Pro Mini supports an Apple "file-based" workflow by recording standard Apple ProRes 422 QuickTime files on industry standard Compact Flash (CF) media. When removed, Compact Flash cards function as standard HFS drives when connected to a Mac computer via any standard off the shelf Compact Flash reader.

Ki Pro Mini's multi-purpose mechanical design and small form factor allow flexibility in mounting to the camera or tripod using industry standard mounting plates or shoe adapters. An optional Ki Pro Mini mounting plate offers a wide variety of bolt patterns for mating either side of the unit with virtually any camera accessory bracket.

Like AJA's famous Ki Pro, KONA and Io HD desktop products, Ki Pro Mini offers unparalleled I/O quality. Within its portable and rugged form factor, Ki Pro Mini offers broadcast quality SD/HD digital I/O including SDI, HD-SDI and HDMI, two channels of balanced analog audio input (2 XLRs) with switch selectable line/mic levels, and LTC timecode input.

Control options are flexible, with front panel and web browser interfaces provided (Ethernet 10/100/1000 via an RJ45 connector).

Includes:

  • Ki Pro Mini Recorder
  • AC Adapter 110/220 with 4-pin XLR connector

Ki Pro Mini Option

Mounting Plate - This option plate allows you to mount Ki Pro Mini to 3rd-party devices. The plate can be attached to the Ki Pro mini via 4 supplied screws; plates can be attached to either or both sides of Ki Pro Mini. A large number of screw holes in the plate allows you to mate Ki Pro Mini to 3rd-Party battery plates, hot-shoe adapters and other mounting applications.

Tabletop Ki Pro Mini Stand and Adapter Cable - This stand securely holds the Ki Pro Mini upright on a desk, shelf, or any flat surface. A right angle power cable is provided for easy connection between the power supply and the Ki Pro Mini.

AJA Ki Pro Mini Features:

  • Simultaneously record to host camera and Ki Pro
  • Bridge proprietary compression schemes by recording to Apple ProRes 422
  • Bridge media complexity by recording to portable file-based storage
  • Extend client review capabilities
  • Bridge production and post-production, effectively eliminating log and capture
  • Extend productive life of existing cameras
  • Embrace future workflows
  • Follows the camera everywhere, offering a tiny footprint, support for SDI & HDMI cameras, and simple CF card storage. Smaller than some battery packs, it mounts to virtually everything.

AJA Ki Pro Mini Specifications

  • Video Input and Output:
    • Digital: SD and HD-SDI (1xBNC), SMPTE-259/292/296 HDMI
  • Audio Input:
    • Digital:
      • 24-bit SDI embedded audio, 8 channel, 48kHz
      • HDMI embedded, 8 channel
    • Analog:
      • 24-bit A/D, 2 channel balanced (2 XLR), 48kHz
      • Input level: Line, Mic, Mic +phantom 48Vdc
  • Audio Output:
    • Digital:
      • 24-bit SDI embedded audio, 8 channel, 48kHz
      • HDMI embedded, 2 channel
  • Network:
    • 10/100/1000 Ethernet (RJ45)
    • Embedded web server for remote control
  • Panel User Interface: 2x 20 character display with dedicated buttons
  • Timecode: LTC timecode input via BNC
  • Control: LANC Loop (2 LANC connectors)
  • Power:
    • 100-240 VAC (to supplied AC Adapter)
    • 12Vdc to power connector input on bottom of chassis
