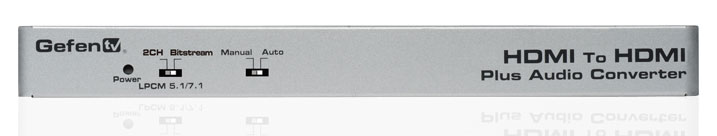

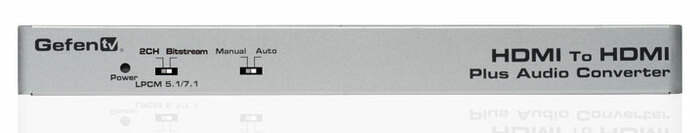

Gefen GTV-HDMI-2-HDMIAUD HDMI to HDMI Plus Audio Converter

The GefenTV HDMI to HDMI Audio Converter is a product that takes a Hi-Def source using HDMI and outputs it to an HDTV display using HDMI and, in addition, up to 8 channels of LPCM audio output through eight RCA connectors. Bitstream is output to an Optical digital connector.

Additional features include switchable audio selections between auto mode and manual mode affording further selection between two-channel audio only, multi-channel bitstream and 7.1 LPCM audio.

Features:

• Resolution Supported up to 1080p Full HD
• Switchable selection between Auto mode and Manual mode
• HDMI v1.3 supported features:
• Deep Color, Dolby TrueHD, DTS-HD Master Audio (through the HDMI connector only), Lip Sync, CEC pass-through
• Bitstream Audio via Optical Toslink and LPCM 7.1 via 8 RCA connectors
• Locking power supply

Specifications:

• Digital Video Amplifier Bandwidth: 225 MHz
• Maximum Resolutions: 1080p, 1920 x 1200
• HDMI Input: 19-pin HDMI connector
• HDMI Output: 19-pin HDMI connector
• Digital Audio Output: TOSLINK
• Analog Audio Outputs: 8 x RCA
• Power Supply: 5V / 2.6A DC
• Power Consumption: 13 Watts (max)
• Operating Temperature: 0 - 40 °C
• Dimensions: 10.25"W x 1"H x 4.25"D
• Shipping Weight: 4 lbs
