Electro-Voice EVF1152S/94-WHITE
Two-Way 15" Full-Range Loudspeaker, 500W @ 8ohms, 90X40 Degree Dispersion, White

OUR PART #:  EVF1152S/94-WHITE

The Electro-Voice® EVF-1152S/94 is a high power...
Learn More
Our Price: $1,989.00
Be the first to review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Electro-Voice EVF1152S/94-WHITE
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

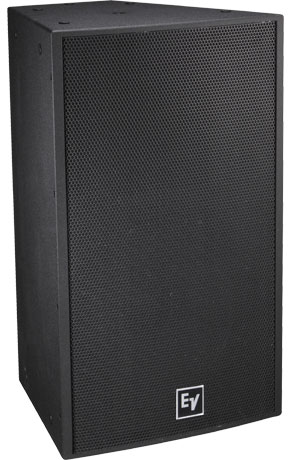

The Electro-Voice® EVF-1152S/94 is a high power, 2-way loudspeaker system that can be used in a variety of applications where high quality sound reinforcement is required in a compact, lightweight package.

The EVF-1152S/94 utilizes the ND2B, a high output 2” titanium compression driver, coupled to a Constant Directivity™ 90° x 40° waveguide. The SMX2151 15” woofer used FEA optimization for motor, suspension, and electrical design for very low distortion, high efficiency, and maximum intelligibility at high SPL levels. The crossover uses steep 24 dB/octave slopes with equalization for very smooth response in vocal range, linear off-axis response, and a protection circuit for long term reliability.

The EVF-1152S/94 features make it ideal for many fixed install applications. The trapezoidal enclosure is constructed out of weather resistant birch, and coated with EVCoatTM for maximum protection from the elements. The unique acoustic and rigging design allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF & EVH Series, with 7 horn patterns to choose from and an assortment of Low Frequency and subwoofer loudspeakers, it gives you the tools to maximize flexibility of system design, no matter what the application and budget. The innovative input panel provides choice of phoenix style connector (included in all standard models) or the ability to add; a dual NL4 type connector cover plate or gland nut cover plate (for weatherizing applications). An externally accessible jumper selects passive or active operation. An available 70.7/100 Volt transformer kit simply mounts to the input panel for use in distributed systems. All these features give you the flexibility to do a large range of venues with fewer items in inventory and quickly support your customer’s requirements.

Electro-Voice EVF1152S/94-WHITE Features:

  • ND2B 2” (51mm) Diaphragm, 1.4” (36mm) Exit Pure Titanium Compression Driver
  • SMX2151 15” (381mm) LF Transducer with Fully Symmetric Drive
  • Advanced 4th Order Crossover Network with HF Protection
  • Coverage Pattern: 90° x 40° Constant Directivity 12” Rotatable Waveguide
  • 101 dB Sensitivity, 134 dB Maximum SPL
  • System Rating: 500W Continuous, (2000W Peak)
  • Active Rating: LF400W/HF40W Continuous, (1600W/160W Peak)
  • (22) M10 Threaded Suspension Points
  • PI Version Available with Gland Nut and Stainless Steel Grille

Electro-Voice EVF1152S/94-WHITE Specifications:

  • Freq. Response (-3 dB): 70 Hz - 14 kHz
  • Freq. Range (-10 dB): 41 Hz - 18 kHz
  • Rec. Hipass Frequency: 45 Hz
  • Axial Sensitivity: 101 dB (1W/1m)
  • Max. Calculated SPL: 134 dB
  • Horizontal Coverage: 90° (or 40°)
  • Vertical Coverage: 40° (or 90°)
  • Power Handling: 500W Continuous, 2000W Peak
  • LF Transducer: SMX2151, 15 in (381mm) Driver
  • HF Transducer: ND2B, 2 in (51mm) Diaphragm Compression Driver
  • Crossover Frequency: 1450 Hz
  • Nominal Impedance: 8 Ohms
  • Minimum Impedance: 6.0 Ohms
  • Connectors: (2) 4 Contact 10AWG Phoenix/EuroBlock Style Screw Terminal
    -PI Version: Gland Nut with Included Input Panel Cover
  • Enclosure Material: 13 Ply Weather Resistant Birch
  • Grille: 16 GA Galvanneal, Powder coat, with Rotatable Logo
    -PI Version: Stainless Steel with Hydrophobic Cloth
  • Suspension: (22) M10 Threaded Points
  • Dimensions (H x W x D): 30.26” x 18.50” x 18.37”
  • Net Weight: 70.9 lb
