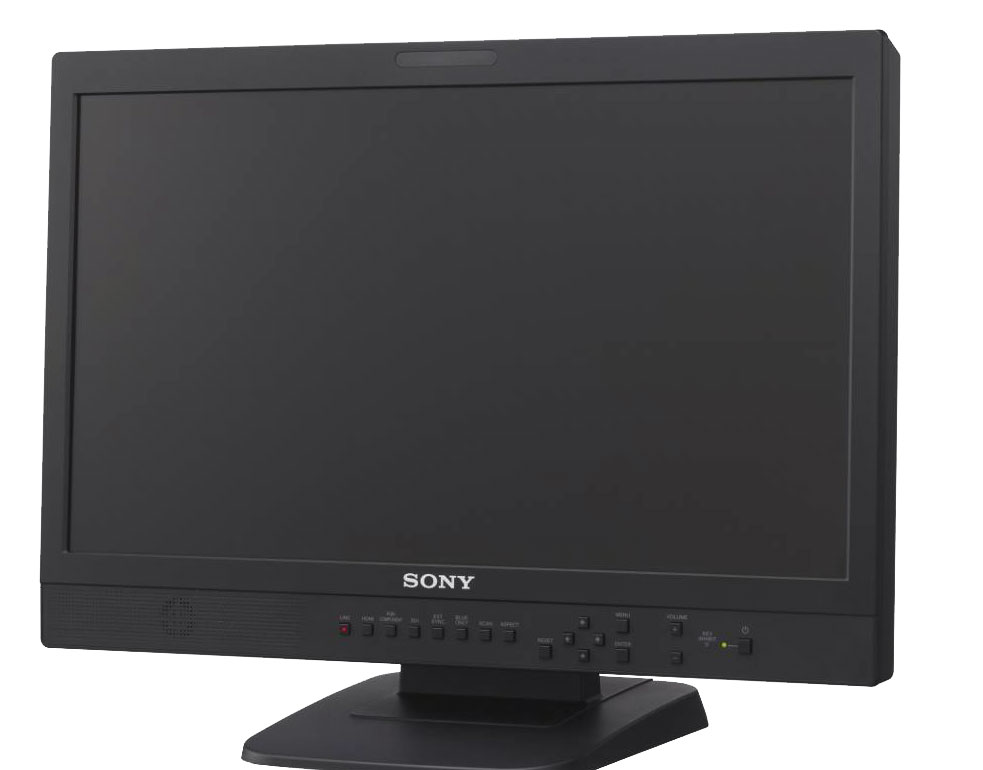

Sony LMD2110W
Monitor, 21.5" Full HD, HDMI

OUR PART #  LMD2110W

Our Price: $959.41
List Price: $1,199.00
You save 20%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

The LMD-2110W is an elegant 21.5-inch widescreen LCD monitor specifically designed to provide reference video monitoring solution for entry-level video applications.

Its 21.5-inch size and Full HD (1920x1080) picture resolution makes this video monitor ideal in various applications such as entry-level non linear editing, videographer, high definition office viewing, security and medical, and some others.

A 10-bit processor ensures accurate picture reproduction will less image artefacts. Combined with a high purity filter, the LMD-2110W provides excellent colour depth for precise colour reproduction.

Equipped with a HDMI interface as standard, this new entry-level monitor is an ideal match for professional and semi-professional high-definition applications.

The LMD-2110W wins hands-down in terms of breadth of operation and performance when compared to standard PC monitors: - video image reproduction is far superior due to its moving picture optimisation circuitry and colour temperature and Gamma control.

Slim and lightweight, the LMD-2110W also offers outstanding installation flexibility. It has a table stand and VESA mount as standard enabling it to be easily placed on a desktop, in a monitor wall or on a ceiling.

Entirely at home in many professional environments, the LMD-2110W truly redefines high performance in the entry-level sector.

All LMD Monitors come supplied with a 2-year PrimeSupport contract which offers unique extra services and benefits for added peace of mind.

Features

Full HD Resolution (1920 x 1080) LCD Panel - Delivers outstandingly crisp, high brightness and high contrast widescreen HD images with a fast transient response.

Cost-Effective Feature-Rich Performance - The LMD-2110W offers professional functionality in an economic package. Optimized for moving picture reproduction, it delivers accurate color rendition and greyscale - thanks to its CRT-like gamma curve. It also sports a wide range of video interfaces and professional features allowing confident video signal evaluation.

High-Purity Color Filter - The LMD-2110W monitor provides high-brightness, high-contrast images thanks to its wide aperture LCD panel In addition, the use of precisely manufactured RGB color filter allows this monitor to reproduce colors with stunning depth and saturation - creating highly natural images.

109% Peak White and 10-bit Signal Processing - Incorporating a high-purity RGB color filter and a 10-bit signal processing engine, the LMD-2110W monitor offers stunning 109% peak white reproduction without clipping and a smooth grey scale along CRT-like gamma.

Minimized Picture Delay - Picture delay can be minimized for audio synchronization. Selecting LINE DOUBLER in I/P mode, the signal processing (I/P conversion) period is less than one field (0.5 frames)

Input Versatility - The LMD-2110W is equipped with a full range of analog SD inputs including composite NTSC/PAL, Y/C (S-Video), 525i/625i component, and RGB. This monitor can also handle SD-SDI input using an optional BKM-320D SD-SDI input adapter. Furthermore, it offers an HD signal input capability via the HDMI and analog component interface.

Multi-Format Signal Support - Includes NTSC, PAL, component, RGB, Y/C, 480/60i, 575/50i, 480/60p, 576/50p, 1080/50i, 1080/60i, 720/50p, 720/60p, 1080/24psf, 1080/25psf, 1080/24p, 1080/25p and 1080/30p. The LMD-2110W also accepts standard definition digital signals with an optional SD-SDI input adaptor.

HDMI Input for High Definition Display- Increasingly an interface of choice for entry-level production.

Color Temperature Adjustment - D65, D93 or user presets can be selected.

CRT-like Gamma Curve - For accurate greyscale performance/

Selectable Scan Size and Aspect Ratio - Normal scan (0%), Over-scan (5%) and Full scan is available. Also, aspect ratio can be switched between 16:9 and 4:3.

Three Color Tally - The tally lamp can be lit via a parallel remote connector and status identified by three colours: red, green or amber.

Video Markers - Equipped with a central marker plus 4:3 and 16:9 markers for Over-scan and Normal-scan display.

Blue Only Mode - In the blue only mode, a monochrome display is shown. This mode is convenient for chroma and phase adjustments and monitoring of signal noise.

Remote Control - Via a programmable parallel remote interface.

Mono Audio Monitoring - The LMD-2110W is equipped with a mono speaker.

VESA Mounting (100 x 100mm) - With optional MB-529 fixing kit.

External Sync - The unit can be operated on the sync signal supplied from an external sync generator.

Specifications

Picture Performance

  • Type: a-Si TFT Active Matrix LCD
  • Resolution: 1920 x 1080 Pixels
  • Effective Picture Size: 477 x 268 mm (18 7/8 x 10 5/8 inches), 547 mm (21 5/8 inches)
  • Aspect: 16:9
  • Colors: Approx.: 16.7 Million Colors
  • Viewing Angle:  170°/160° (typical) (horizontal/vertical contrast>10:1)

Input

  • Composite: BNC (x1), 1.0 Vp-p ±3dB sync negative
  • Y/C: Mini DIN 4-pin (x1) / Y: 1.0 Vp-p ±3dB sync negative, / C: 0.286 Vp-p ±3dB (NTSC burst signal level), / 0.3 Vp-p ±3dB (PAL burst signal level)
  • RGB, Component: BNC (x3) / RGB : 0.7 Vp-p ±3dB (sync on green, 0.3 Vp-p sync negative) / Component : 0.7 Vp-p ±3dB (75% chrominance standard color bar signal)
  • HDMI: HDMI (x1)
  • Audio: Phono jack (x2), -5 dBu 47 kilohms or higher / OPTION AUDIO IN: Phono jack (x1), -5 dBu 47 kilohms or higher
  • External Sync: BNC (x1), 0.3 Vp-p to 4 Vp-p negative polarity binary
  • Option In Connector: D-sub 9-pin (x1), female
  • Parallel Remote: Modular connector 8-pin (x1) (pin-assignable)

Output

  • Composite: BNC (x1), loop-through, with 75 ohms automatic termination
  • Y/C: Mini DIN 4-pin (x1) loop-through, with 75 ohms automatic termination
  • RGB, Component: BNC (x3), loop-through, with 75 ohms automatic termination
  • External Sync: BNC (x1), loop-through, with 75 ohms automatic termination
  • Audio Monitor Out: Phono jack (x2), loop-through
  • Speaker (built-in): 0.5W (mono)

General

  • Power Requirements: AC 100 V to 240 V, 50/60 Hz
  • Power Consumption: Maximum approx. 56 W, 1.0 A to 0.5 A
  • Operating Temperature: 0°C to 35°C (32°F to 95°F) / Recommended: 20°C to 30°C (68°F to 86°F)
  • Operating Humidity: 30% to 85% (no condensation)
  • Storage and Transport Temperature: -20°C to +60°C (-4°F to +140°F)
  • Storage and Transport Humidity: 0% to 90%
  • Operating, Storage and Transport Pressure: 700 hPa to 1060 hPa
  • Dimensions (W x H x D)(with stand): 515 x 403 x 264 mm (20 3/8 x 15 7/8 x 10 1/2 inches)
  • Dimensions (W x H x D)(without stand):  515 x 355 x 86 mm (20 3/8 x 14 x 3 1/2 inches)
  • Mass: 8.6 kg (18 lb 15 oz)
  • Mass (without stand): 6.9 kg (14 lb 19 oz)
  • Accessories Supplied: AC power cord (1), AC plug holder (1), Operating Instructions (1), CD-ROM (1), Using the CD-ROM Manual (1), Warranty book (1)

Sony LMD2110W
Monitor, 21.5" Full HD, HDMI

OUR PART #  LMD2110W

Product Information:

The LMD-2110W is an elegant 21.5-inch widescreen LCD monitor specifically designed to provide reference video monitoring solution for entry-level video applications.

Its 21.5-inch size and Full HD (1920x1080) picture resolution makes this video monitor ideal in various applications such as entry-level non linear editing, videographer, high definition office viewing, security and medical, and some others.

A 10-bit processor ensures accurate picture reproduction will less image artefacts. Combined with a high purity filter, the LMD-2110W provides excellent colour depth for precise colour reproduction.

Equipped with a HDMI interface as standard, this new entry-level monitor is an ideal match for professional and semi-professional high-definition applications.

The LMD-2110W wins hands-down in terms of breadth of operation and performance when compared to standard PC monitors: - video image reproduction is far superior due to its moving picture optimisation circuitry and colour temperature and Gamma control.

Slim and lightweight, the LMD-2110W also offers outstanding installation flexibility. It has a table stand and VESA mount as standard enabling it to be easily placed on a desktop, in a monitor wall or on a ceiling.

Entirely at home in many professional environments, the LMD-2110W truly redefines high performance in the entry-level sector.

All LMD Monitors come supplied with a 2-year PrimeSupport contract which offers unique extra services and benefits for added peace of mind.

Features

Full HD Resolution (1920 x 1080) LCD Panel - Delivers outstandingly crisp, high brightness and high contrast widescreen HD images with a fast transient response.

Cost-Effective Feature-Rich Performance - The LMD-2110W offers professional functionality in an economic package. Optimized for moving picture reproduction, it delivers accurate color rendition and greyscale - thanks to its CRT-like gamma curve. It also sports a wide range of video interfaces and professional features allowing confident video signal evaluation.

High-Purity Color Filter - The LMD-2110W monitor provides high-brightness, high-contrast images thanks to its wide aperture LCD panel In addition, the use of precisely manufactured RGB color filter allows this monitor to reproduce colors with stunning depth and saturation - creating highly natural images.

109% Peak White and 10-bit Signal Processing - Incorporating a high-purity RGB color filter and a 10-bit signal processing engine, the LMD-2110W monitor offers stunning 109% peak white reproduction without clipping and a smooth grey scale along CRT-like gamma.

Minimized Picture Delay - Picture delay can be minimized for audio synchronization. Selecting LINE DOUBLER in I/P mode, the signal processing (I/P conversion) period is less than one field (0.5 frames)

Input Versatility - The LMD-2110W is equipped with a full range of analog SD inputs including composite NTSC/PAL, Y/C (S-Video), 525i/625i component, and RGB. This monitor can also handle SD-SDI input using an optional BKM-320D SD-SDI input adapter. Furthermore, it offers an HD signal input capability via the HDMI and analog component interface.

Multi-Format Signal Support - Includes NTSC, PAL, component, RGB, Y/C, 480/60i, 575/50i, 480/60p, 576/50p, 1080/50i, 1080/60i, 720/50p, 720/60p, 1080/24psf, 1080/25psf, 1080/24p, 1080/25p and 1080/30p. The LMD-2110W also accepts standard definition digital signals with an optional SD-SDI input adaptor.

HDMI Input for High Definition Display- Increasingly an interface of choice for entry-level production.

Color Temperature Adjustment - D65, D93 or user presets can be selected.

CRT-like Gamma Curve - For accurate greyscale performance/

Selectable Scan Size and Aspect Ratio - Normal scan (0%), Over-scan (5%) and Full scan is available. Also, aspect ratio can be switched between 16:9 and 4:3.

Three Color Tally - The tally lamp can be lit via a parallel remote connector and status identified by three colours: red, green or amber.

Video Markers - Equipped with a central marker plus 4:3 and 16:9 markers for Over-scan and Normal-scan display.

Blue Only Mode - In the blue only mode, a monochrome display is shown. This mode is convenient for chroma and phase adjustments and monitoring of signal noise.

Remote Control - Via a programmable parallel remote interface.

Mono Audio Monitoring - The LMD-2110W is equipped with a mono speaker.

VESA Mounting (100 x 100mm) - With optional MB-529 fixing kit.

External Sync - The unit can be operated on the sync signal supplied from an external sync generator.

Specifications

Picture Performance

  • Type: a-Si TFT Active Matrix LCD
  • Resolution: 1920 x 1080 Pixels
  • Effective Picture Size: 477 x 268 mm (18 7/8 x 10 5/8 inches), 547 mm (21 5/8 inches)
  • Aspect: 16:9
  • Colors: Approx.: 16.7 Million Colors
  • Viewing Angle:  170°/160° (typical) (horizontal/vertical contrast>10:1)

Input

  • Composite: BNC (x1), 1.0 Vp-p ±3dB sync negative
  • Y/C: Mini DIN 4-pin (x1) / Y: 1.0 Vp-p ±3dB sync negative, / C: 0.286 Vp-p ±3dB (NTSC burst signal level), / 0.3 Vp-p ±3dB (PAL burst signal level)
  • RGB, Component: BNC (x3) / RGB : 0.7 Vp-p ±3dB (sync on green, 0.3 Vp-p sync negative) / Component : 0.7 Vp-p ±3dB (75% chrominance standard color bar signal)
  • HDMI: HDMI (x1)
  • Audio: Phono jack (x2), -5 dBu 47 kilohms or higher / OPTION AUDIO IN: Phono jack (x1), -5 dBu 47 kilohms or higher
  • External Sync: BNC (x1), 0.3 Vp-p to 4 Vp-p negative polarity binary
  • Option In Connector: D-sub 9-pin (x1), female
  • Parallel Remote: Modular connector 8-pin (x1) (pin-assignable)

Output

  • Composite: BNC (x1), loop-through, with 75 ohms automatic termination
  • Y/C: Mini DIN 4-pin (x1) loop-through, with 75 ohms automatic termination
  • RGB, Component: BNC (x3), loop-through, with 75 ohms automatic termination
  • External Sync: BNC (x1), loop-through, with 75 ohms automatic termination
  • Audio Monitor Out: Phono jack (x2), loop-through
  • Speaker (built-in): 0.5W (mono)

General

  • Power Requirements: AC 100 V to 240 V, 50/60 Hz
  • Power Consumption: Maximum approx. 56 W, 1.0 A to 0.5 A
  • Operating Temperature: 0°C to 35°C (32°F to 95°F) / Recommended: 20°C to 30°C (68°F to 86°F)
  • Operating Humidity: 30% to 85% (no condensation)
  • Storage and Transport Temperature: -20°C to +60°C (-4°F to +140°F)
  • Storage and Transport Humidity: 0% to 90%
  • Operating, Storage and Transport Pressure: 700 hPa to 1060 hPa
  • Dimensions (W x H x D)(with stand): 515 x 403 x 264 mm (20 3/8 x 15 7/8 x 10 1/2 inches)
  • Dimensions (W x H x D)(without stand):  515 x 355 x 86 mm (20 3/8 x 14 x 3 1/2 inches)
  • Mass: 8.6 kg (18 lb 15 oz)
  • Mass (without stand): 6.9 kg (14 lb 19 oz)
  • Accessories Supplied: AC power cord (1), AC plug holder (1), Operating Instructions (1), CD-ROM (1), Using the CD-ROM Manual (1), Warranty book (1)
