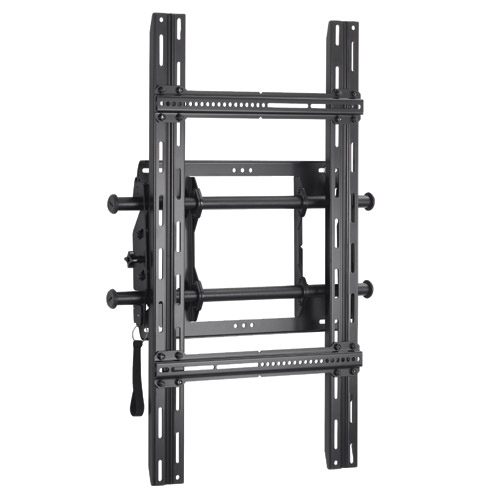

Chief Manufacturing LTAPU
TV Wall Mount , Portrait

OUR PART #:  LTAPU

The installer-inspired tilt mount solves top flat panel installation problems...
Learn More

Add to Cart to See Price

Chief Manufacturing LTAPU
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The installer-inspired tilt mount solves top flat panel installation problems, offering perfect TV positioning and flexible adjustments with a portrait installation for large flat panel screens.

Features:

  • Portrait installation enables vertical positioning of the flat panel display
  • Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile
  • Centerless Shift provides up to 11.5" (292 mm) of post-installation lateral shift - 5.75" (146 mm) left/right of uprights - for limitless centering
  • ClickConnect offers an audible click when the screen safely engages with the mount
  • Built-in cable stand provides easy access under the screen
  • A full line of accessories can be installed with the mount and the entire unit can be adjusted together
  • Provides integrated security, just add a padlock

Specifications:

  • Color:  Black
  • Lateral Shift:  5.25" (133.4mm)
  • Maximum Screen Thickness:  6"
  • Minimum Depth:  3.4" (86mm)
  • Mounting Pattern Compatibility (Universal Versions):  200 x 200mm - 800 x 525mm
  • Orientation:  Portrait
  • Overall Dimensions (H x W x D):  13.5" x 22.4" x 2.8" (343 x 570 x 70mm)
  • Solution Type:  Universal
  • Tilt:  + 0┬░ , - 11┬░
  • Typical Screen Sizes:  37 - 63"
  • Wall Stud Compatibility (inches):  16
  • Weight Capacity:  200 lbs (90.7kg)
