Product Overview
The Shure Beta 98AD/C is a precision-engineered compact, high-output miniature condenser microphone for professional sound reinforcement and studio recording. An extremely uniform cardioid polar pattern provides excellent gain-before-feedback and off-axis rejection of unwanted noise.

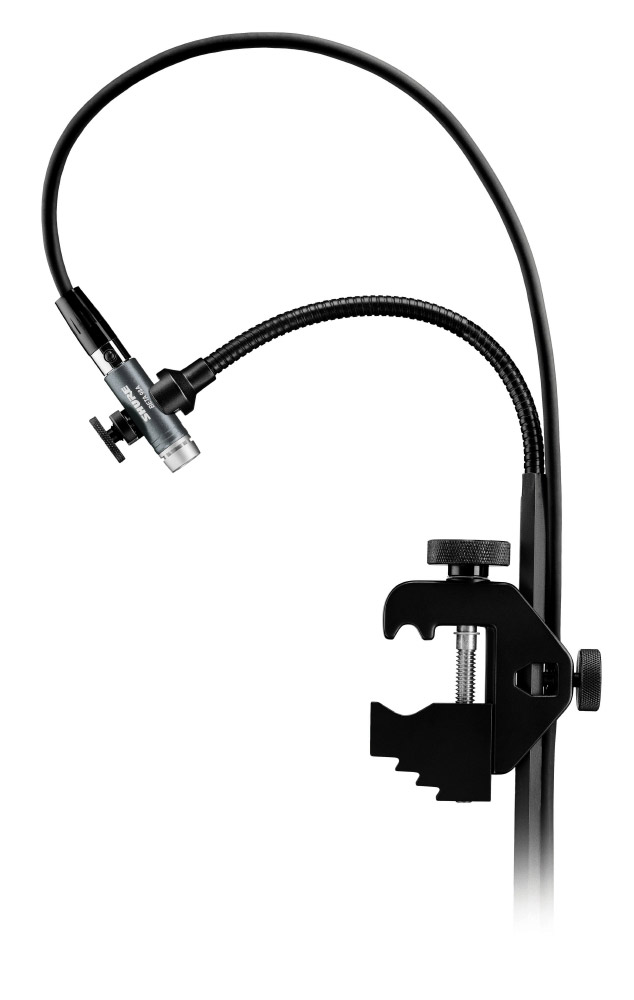

Beta 98AD/C features high sound pressure level capability (SPL) and includes A98D drum mount with flexible gooseneck that makes it an essential, accurate choice for toms, snares, and percussion.
Includes
- Beta 98AD/C Microphone
- 4.6 m (15 ft) heavy-duty interconnect cable
- In-Line Preamplifier
- Drum mount
- Windscreen
- Zippered carrying case
Features
- Premier live performance microphone with Shure quality, ruggedness, and reliability
- Uniform cardioid pick-up pattern for maximum gain before feedback and superior rejection of off-axis sound
- Tailored frequency response specifically shaped for drums, percussion, reeds, and horns
- Compact design reduces stage clutter
- Wide dynamic range for use in high SPL environments
- Drum mount is unobtrusive, versatile, and easy to adjust
- Enamel-coated metal construction and stainless steel inner grille resist wear and abuse
Specifications
- Type: Electret Condenser
- Frequency Response: 20 Hz - 20 kHz
- Polar Pattern: Cardioid
- Output Impedance: 179 Ohms
- Sensitivity (at 1 kHz, open circuit voltage): –48.0 dBV/Pa (4.0 mV)
- Maximum SPL (1 kHz at 1% THD): 1,000 Ohm load: 144 dB
- Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz): 64 dB
- Dynamic Range (at 1 kHz): 1,000 Ohm load: 114 dB
- Common Mode Rejection (20 Hz to 20 kHz): > 50 dB
- Clipping Level (1 kHz at 0.25% THD): 1,000 Ohm load: 1.0 dBV (1.26V)
- Self-Noise (typical, equivalent SPL, A-weighted): 30 dB SPL
- Polarity: Positive pressure on diaphragm produces positive voltage on pin2 with respect to pin 3
- Weight: Net: 12 g (0.6 oz.)
- Connector: Three-pin professional audio (XLR), male, balanced
- Power Requirements: 11-52 Vdc phantom, 3.6 mA
