Kramer 673R/T
4-Channel 3G HD-SDI over Single Fiber Optic Transmitter & Receiver

OUR PART #:  673R/T

The 673T and 673R are a high-performance fiber optic transmitter and receiver for video signals up to 3G HD-SDI and dual link HD-SDI signals.
Learn More
Our Price: $3,880.00
List Price: $4,850.00
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer 673R/T
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

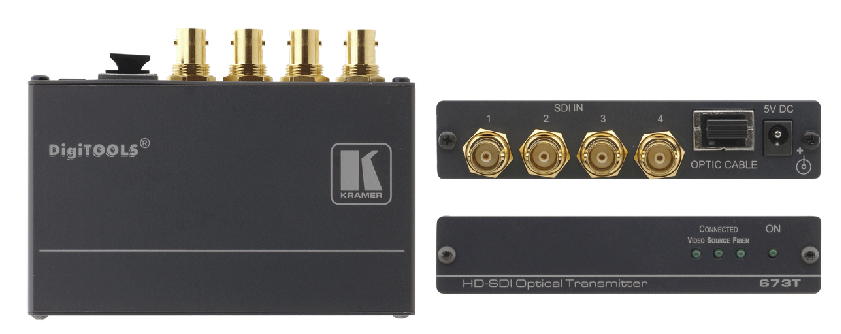

The 673T and 673R are a high-performance fiber optic transmitter and receiver for video signals up to 3G HD-SDI and dual link HD-SDI signals. The 673T converts up to four channels of SDI signals on BNC connectors to an optical signal that is transmitted over a single fiber optic cable. The 673R converts the optical signal back to SDI signals.

Kramer 673R/T Features:

  • Max. Data Rate - Up to 3Gbps for each SDI input.
  • SDI Inputs/Outputs - 4 channels on BNC connectors.
  • HDTV Compatible.
  • System Range - 1000m (more than 3200ft).
  • Fiber Cable - A single multi-mode OM3 fiber optic cable with SC connectors.
  • Multi-Standard Operation - SDI (SMPTE 259M), HD-SDI (SMPTE 292M) and 3GHD-SDI (SMPTE 424M) and dual-link
  • HD-SDI (SMPTE 372M).
  • Reclocking and Equalization per Channel.
  • Fiber Optic, Source & Input Indication LEDs.
  • Compact DigiTOOLS® - 3 units can be rack mounted side-by-side in a 1U rackspace with the optional RK-3T rack adapter.

Kramer 673R/T Specifications:

  • Inputs: 3G HD-SDI/HD-SDI/Dual-link SDI serial video, 75 on BNC connectors (673T); 1 optical connector (673R).
  • Outputs: 1 optical connector (673T); 3G HD-SDI/HD-SDI/Dual-link SDI serial video, 75 on BNC connectors (673R).
  • Bandwidth: Up to 3Gbps for each SDI input.
  • Fiber Optic Extension: Up to 1000m (>3200ft) for 3G HD-SDI.
  • Input Cable Equalization (673T): 140m for HD-SDI, 120m for 3G HD-SDI.
  • Fiber Optic Connection: SC connectors for multimode (OM3) fiber cable.
  • Indicator LEDs: VIDEO, SOURCE, FIBER and ON LEDs.
  • Power Source: 5V DC, 520mA (673T); 5V DC, 780mA (673R).
  • Dimensions (WxDxH): 4.7" x 3.1" x 1.1" (12cm x 8.0cm x 2.8cm)
  • Weight: 0.7 lbs (0.3 kg) approx. each.
  • Accessories: Power supply, bracket installation kit.
  • Options: RK-3T 19" rack adapter.
