Philips Color Kinetics 101-000066-02
6" 120 x 120 (Wide Beam Width) QLX LED Fixture

OUR PART #  101-000066-02

Our Price: $71.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

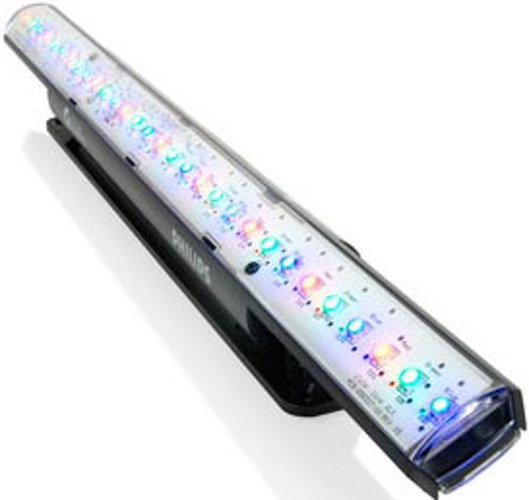

Philips Color Kinetics' iColor Cove® QLX is a compact linear LED fixture that generates saturated color and dynamic effects in alcoves, accent areas, and other interior spaces.  An integrated rotating mount provides precise positioning, while optional mounting tracks allow quick project setup in linear applications.  Flexible mounting and positioning options let you install fixtures in virtually any desired configuration.

Philips Color Kinetics 101-000066-02 Features:

  • Auto-addressing through Chromasic technology simplifies installation, addressing, and programming. Chromasic integrates power, communication,and control to lower overall system cost.
  • iColor Cove QLX delivers color-changing illumination and lighting effects to alcoves, task and accent spaces, and other confined areas in a wide range of applications, from large-scale commercial installations to simpler residential installations.
  • iColor Cove QLX offers excellent mixing at 2" (51 mm), with no shadowing between fixtures in a long run.
  • iColor Cove QLX works seamlessly with the complete line of Philips ColorKinetics controllers, including iPlayer 3 and Light System Manager, as well as third-party DMX controllers.

Philips Color Kinetics 101-000066-02 Specifications:

  • Beam Angle: 120º x 120º (wide)
  • Lumens*: 25* Lumen measurement complies with IES LM 79-08
  • Color Range: 16.7 million additive RGB colors; continuously variable intensity
  • Mixing Distance: 2" (51 mm) to uniform light
  • Lumen Maintenance**: 50,000 hours L70 @ 25° C (typical application)
    ** L70 = 70% maintenance of lumen output wihen light output drops below 70% of initial output.
  • Input Voltage: 24 VDC from DMX in / Chromasic out power / data supply
  • Power Consumption: 2 W maximum at full output, steady state
  • Interface:
    • sPDS-60ca 24V (DMX or Ethernet)
    • sPDS-480ca 24V(Ethernet)
    • PDS-60ca 24V (Pre-programmed, DMX, or Ethernet)
  • Dimensions (HxWxD): 1.2" x 6" x 1.4" (30 x 152 x 36 mm)
  • Weight: 85 g (3 oz)
  • Housing: Charcoal gray injection-molded plastic
  • Lens: Clear polycarbonate
  • Fixture Connections: Integral male / female connectors
  • Operating Temperature:
    • 40° – 122° F (-40° – 50° C) Operating
    • 4° –122° F (-20° – 50° C) Startup
  • Humidity: 0 – 95%, non-condensing
  • Maximum Fixtures Per Power / Data Supply:
    • PDS-60ca 24V: 30 total
    • sPDS-60ca 24V: 30 total
    • sPDS-480ca 24V: 240 total, 30 per power port
  • Certifications: UL / cUL, CE, PSE, C-Tick
  • LED Class: Class 2 LED product
  • Environment: Dry Location, IP20
