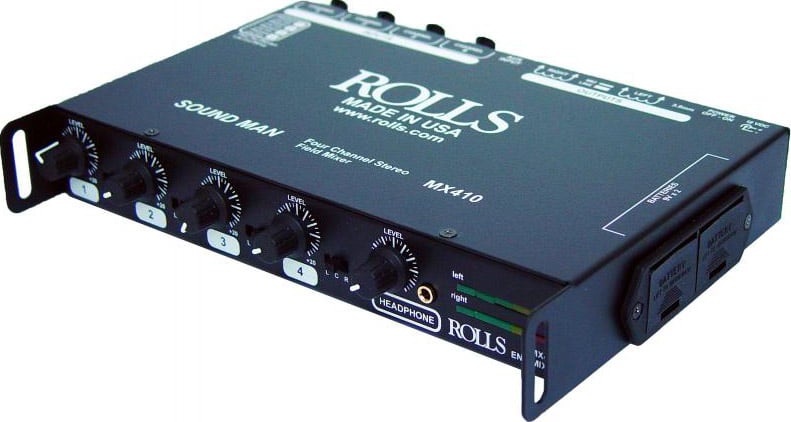

Rolls MX410
4-Channel Field Mixer with LED Meters

OUR PART #  MX410-ROLLS

Our Price: $269.00
List Price: $350.00
You save 23%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Rolls' MX410 is a 4-channel, microphone mixer with balanced XLR inputs and outputs.  Ideal for broadcast and video markets.

Applications:

  • DV Field Production
  • Electronic News Gathering
  • Location Recording (Dialogue and Music)
  • Digital Recording
  • Broadcast Remotes
  • Desktop Mixing for Video Post Production

Features:

  • 4 balanced XLR Inputs
  • 2 transformer-balanced XLR Outputs
  • Switchable Output Level (Line level, or mic)
  • Switchable Phantom Power for each input.
  • Level controls for each channel.
  • 3.5 mm Headphone Output and Level control.
  • Canvas case with shoulder strap included.
  • Rolls' PS27 external power supply included.
  • Powered by 2x 9 volt batteries or the included power supply

Specifications:

  • Input Impedance: 600 Ohm balanced/10K Ohm Aux.
  • Output Attn. Switch: 0/-30 dB
  • Self Noise: -65 dB maximum, -90 dB typical
  • Max Gain: +55 dB
  • S/N Ratio: 115 dB
  • Frequency Response: 20 Hz - 20 kHz | +0, -3 dB
  • Max Input: -20 dBV
  • Current Draw: 30 mA with no Phantom Power or Signal.
  • Phantom Power: +18 VDC
  • Connectors: 4: Female XLR, 2: Male XLR, 3: (3.5mm), 1 Center Negative power jack.
  • Power: 12VDC / < 200 mA
  • Size: 9" W x 6.75" D x 1.5" H
  • Weight: 2.45 lbs

Click to download

Rolls MX410
4-Channel Field Mixer with LED Meters

OUR PART #  MX410-ROLLS

Product Information:

Rolls' MX410 is a 4-channel, microphone mixer with balanced XLR inputs and outputs.  Ideal for broadcast and video markets.

Applications:

  • DV Field Production
  • Electronic News Gathering
  • Location Recording (Dialogue and Music)
  • Digital Recording
  • Broadcast Remotes
  • Desktop Mixing for Video Post Production

Features:

  • 4 balanced XLR Inputs
  • 2 transformer-balanced XLR Outputs
  • Switchable Output Level (Line level, or mic)
  • Switchable Phantom Power for each input.
  • Level controls for each channel.
  • 3.5 mm Headphone Output and Level control.
  • Canvas case with shoulder strap included.
  • Rolls' PS27 external power supply included.
  • Powered by 2x 9 volt batteries or the included power supply

Specifications:

  • Input Impedance: 600 Ohm balanced/10K Ohm Aux.
  • Output Attn. Switch: 0/-30 dB
  • Self Noise: -65 dB maximum, -90 dB typical
  • Max Gain: +55 dB
  • S/N Ratio: 115 dB
  • Frequency Response: 20 Hz - 20 kHz | +0, -3 dB
  • Max Input: -20 dBV
  • Current Draw: 30 mA with no Phantom Power or Signal.
  • Phantom Power: +18 VDC
  • Connectors: 4: Female XLR, 2: Male XLR, 3: (3.5mm), 1 Center Negative power jack.
  • Power: 12VDC / < 200 mA
  • Size: 9" W x 6.75" D x 1.5" H
  • Weight: 2.45 lbs

Click to download
