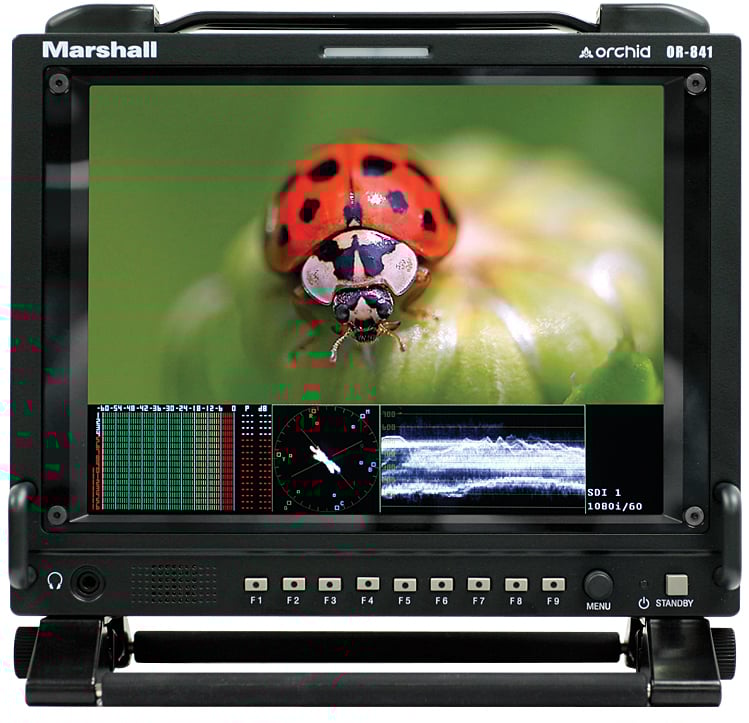

Marshall Electronics OR-841-HDSDI
8.4" Rackmount/Camera-Top/Portable LCD Monitor

OUR PART #:  OR-841-HDSDI

Marshall Electronics' OR-841-HDSDI 8.4" ORCHID® rack mountable/portable field monitor is 4RU tall and has 9 user-assignable function keys as well as a rotary menu system.
Learn More
Our Price: $3,088.75
List Price: $3,634.00
You save 15%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Marshall Electronics OR-841-HDSDI
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Marshall Electronics' OR-841-HDSDI 8.4" ORCHID® rack mountable/portable field monitor is 4RU tall and has 9 user-assignable function keys as well as a rotary menu system.  The built-in waveform monitor (which includes adjustable White and Black clip level indicators) can be displayed in 3 different aspect ratios including Full Screen.  The built-in Vectorscope displays in full color and can also be displayed in 3 different ratios.  The Vectorscope has adjustable gain from 1x to 5x.  The OR-841-HDSDI will also de-embed and display up to 16 channels of audio and allow the user to monitor any 2 channels at once through the headphone jack or rear line output jack.  Also includes built-in front panel speaker and rear panel stereo input for audio monitoring.  The 64-segment tri-color bar graph meters have user-adjustable reference levels.  The OR-841-HDSDI comes standard with auto-sensing HDSDI inputs and re-clocked output.  This unit can be used in a rack, on a desktop, in the field, or mounted to a camera.

Features:

  • Real-Time Waveform Monitor
  • Real-Time Color Vectorscope
  • Auto White Balance Calibration
  • Sixteen 64-segment Tri-color Audio Meters
  • Tri-Color Tally Indicator
  • On-Screen Time Code
  • 7 assignable GPI inputs
  • Adjustable Color Temperature
  • Auto-Sensing Front Panel Headphone Jack
  • Auto-Sensing Rear Unbalanced Stereo Output
  • Adjustable Clipping Indicator
  • Precision Gamma Settings
  • Adjustable Color Temperature
  • Variety of Safety Markers
  • HDSDI / SDI Inputs and Output
  • Supports 3 different Battery Adapters
  • Factory-installed Protective Screen
  • Adjustable / Detachable Stand with top handle

Specifications:

  • Display (Viewing Area): 8.4"
  • Resolution: 1024 x 768
  • Aspect Ratio: 4:3
  • Brightness (in cd/m²): 400
  • Contrast Ratio: 500:1
  • Available Input Types: HDSDI x 2
  • Available Audio Output (per screen): 2 Stereo (3.5mm - Front and Rear)
  • Power Consumption: 18W (1.5A)
  • Power Supply: DC 12V 4-Pin XLR
  • Weight: Approx. 4 lbs. (4.6 lbs. with Power Adapter)
  • Dimensions: 8.6"W x 8.2 "H x 1.7"D
