OUR PART # SYSTEM10-SB-ENG2CF

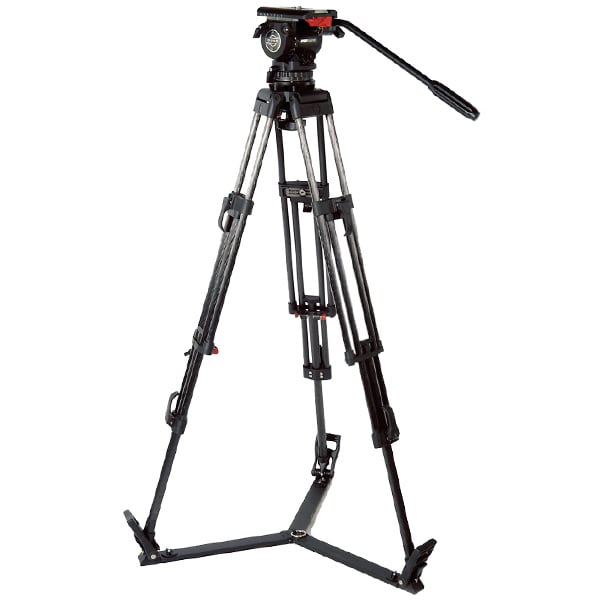

A complete tripod system from Sachter featuring the DV10SB fluid head, ENG2CF Tripod. SP100 Spreader, and the ENG2 Cover.
DV10SB Fluid Head:
The new DV 10 SB fluid head is Sachtlerâ€™s smallest 100mm solution. It provides a 12-step counterbalance as well as five horizontal and five vertical grades of drag (+0). The Speedbalance technology enables fast and smooth adjustments, while the headâ€™s payload range from 1 to 12 kg (2-26 lbs) and tilt range of +90Â° to -75Â° make the DV 10 SB the ideal tool for diverse shooting conditions. The fluid head is equipped with a compartment for spare camera screws (pin, 1/4â€ť, 3/8â€ť), sparing the operator from tedious searching on the set.
The DV 10 SB operates with a DV 100 pan bar. Other useful features include the integrated flat base fitting and a self-illuminating Touch Bubble.
The fluid head DV 10 SB is delivered with the Touch & GoÂ® plate 16 (Code No. 1064). It comes with a 1/4â€ť screw and 3/8â€ť screw. Spare camera screws (1/4â€ť/ 3/8â€ť) and a pin screw are stored in the balance plate. The pin screw fits in the center hole of the camera plate. Thus a pin/1/4â€ť screw connection can be achieved if your camera requires this connection.
If your camera remains front- or back heavy after going through the necessary centring procedure you may solve this by using the C.O.G plate (Code No. 1063). This plate offers a removed position.The C.O.G. plate can be mounted to either the front or the back. It cannot be operated with pin and 1/4â€ť screw.
These tripods are top sellers for good reasons. The ENG 2 CF is extremely lightweight, solid and stable. It And with its folding handle, you can easily carry the tripod in a horizontal position.
Double extension tripods are ideal for a much wider variety of applications, due to their expanded height range, i.e. lower bottom and higher top positions. In addition, their transport length is even shorter. With our quick clamping system, you can securely â€“ and visibly â€“ lock the tripod.
