Product Overview

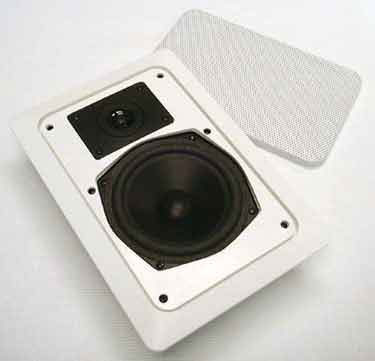

Looking for a way to hide speakers in a room? Don't have space to put a speaker? The Coliseum WM5T/70 in-wall, flush mount loudspeaker is your answer. This compact speaker is ideally suited for many applications: commercial installations, home theatre, or home stereo. Using the volume between wall studs as an enclosure, this bass reflex speaker has a 5" woofer and mylar dome tweeter that provide impressive bass, and clean, crisp high frequency response. Installation is a snap with the provided cutting/painting template, while press-fit grille hides all mounting holes to give the WM5T/70 a very clean and finished look. All mounting hardware is also provided. The baffle is made of white ABS plastic with a matching, white, perforated metal grille. It can be easily painted to match its surroundings.

The WM5T/70 features built in 70-volt taps at 5, 10 or 20 watts as well as optional 8-ohm (25 watt) operation mean the WM5T/70’s can be driven by virtually any amplification or paging system including the Coliseum CA1 or CA1T.

Specifications

  • System Type: 2-way, Full Range, In-Wall Mount
  • Active or Passive: Passive
  • Program Power (Watts): 50
  • Nominal Impedance (Ohms): 4
  • Sensitivity (dB @1Watt/1m): 92
  • Frequency Response (Hz +/- 3db): 80 -18,000
  • Driver Configuration: Tweeter, 5 inch
  • HF Driver(s): Mylar Tweeter
  • HF Dispersion (°H x °V): 90x90
  • LF Driver(s): 5 inch
  • Inputs: Solder Lug
  • Other Controls / Features: Optional LT-70V5W five watt, 70V matching transformer is available.
  • Included Hardware: Mounting Screws and Bracket
  • Enclosure Materials: Injection Molded, ABS Plastic
  • Grill: Perforated Steel
  • Covering / Finish: Low Reflective White
  • Other Details: Cutting/Painting Template and Putty Sealer Strip also included.
  • Dimensions (DWH xbackW, inches): 3.5 x 7.5 x 11
  • Dimensions (DWH xbackW, cm): 9 x 19 x 28
  • Weight (lbs/kg): 3 / 1.4
