Panasonic AGMSU10
P2 Media Storage Unit


Our Price: $2,465.12
List Price: $2,550.00
Usually ships in 7-14 business days.
Need it sooner? Call us!

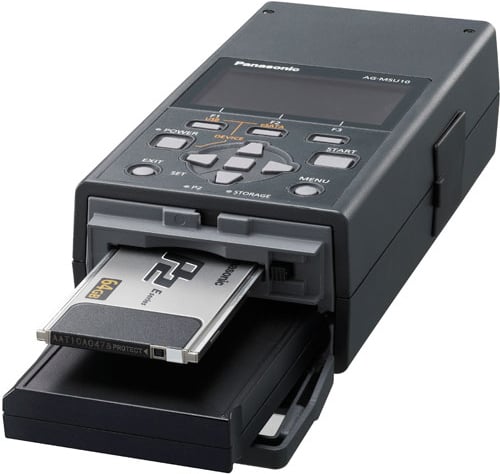

Panasonic's AG-MSU10 is a mobile storage unit that simplifies backing-up P2 content in the field.  The AGMSU10 offers one P2 card slot and a slot for the removable AGMBX10 tray, which houses a 2.5" drive (not included).  The compact P2 Media Storage Unit removes the need for computers or larger, more expensive appliances in the field and can quickly free up P2 cards for additional shooting.

The AG-MSU10 offers the flexibility of AC or battery operation and includes USB 2.0 and eSATA interfaces for easy connection to NLEs.  The AG-MBX10 removable drive tray also includes USB 2.0 and eSATA interfaces.  This bus-powered unit can easily be transported from the field and connected to NLEs, including PCs and Macs, to expedite the editing process.  Content is transferred from a P2 card to the drive at 4x real-time.

The AGMSU10 is ideal for the field and supports multiple workflows.  In addition to back-up from the P2 card to removable AGMBX10 tray drive, the AGMSU10 also allows offers Host and Device functions.  This allows the unit to be a P2 card reader (when connected to a computer), or to host an external drive for copying to that drive.


  • Standard accessories include one AG-MBX10G removable tray, one battery, one battery charge, one AC adapter, one AC power supply cable (for the battery charger), one AC power supply cable (for the AC adapter), two USB cables.
  • Drive and eSATA cable NOT included.
  • Automates backing up P2 cards in the field
  • Utilizes removable MBX10 drive tray (drive not included)
  • Host mode allows for fast and easy copying to external drives via USB 2.0 and eSATA interfaces
  • Device model allows MSU10 to be used as a P2 card reader (USB 2.0 only)
  • MBX10 connects quickly to computers via USB 2.0 & eSATA interfaces by using USB bus power
  • 3.2" LCD screen for Thumbnail confidence and metadata review
  • 4x real-time transfer of AVC-Intra 100 / DVCPRO-HD
  • Supports all P2 formats
  • AC or Battery operation
  • Simple one-touch operation
  • Clip-by-clip copying also supported


  • Supply Voltage: DC 7.2/7.9 V
  • Current consumption: 1.1 A
  • Battery: DC 7.2 V with CGA-D54 battery (5400 mAh)
  • Weight of AG-MSU10 (without SSD interface box and battery): approx. 1.69 lb (770 g)
  • Weight of AG-MBX10 (without SSD): approx. 0.3 lb (135 g)
  • Dimensions (excluding protrusions): 3-9/10" W x 2-7/25" H x 8-7/20" D (99 x 58 x 212 mm)
  • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
  • Operating Humidity: 10 % to 80 % (no condensation)
  • Storage Temperature: –20 °C to 60 °C (–4 °F to 140 °F)
  • Storage Humidity: 85 % or less (no condensation)
