JBL AC2212/00
12" Compact 2-Way Loudspeaker in White wtih 100° x 100° Coverage

OUR PART #:  AC2212/00-WHITE

Our Price: $1,342.00
Write the first review.
JBL AC2212/00
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The JBL AC2212/00 is a compact 2-way fullrange loudspeaker system comprised of one 300 mm (12") low frequency driver and one 38 mm (1.5") exit/44 mm (1.75") voice-coil compression driver.  The PT Progressive Transition waveguide provides wide 100° by 100° coverage.  High-slope passive crossovers minimize band overlap.

The cabinet is fitted with M10 threaded suspension points.  Optional U-bracket, as well as pre-engineered array bracketry is available for easy installation.  Four threaded inserts located on back of the enclosure allow attachment of an Omnimount™ or similar mounting bracket.

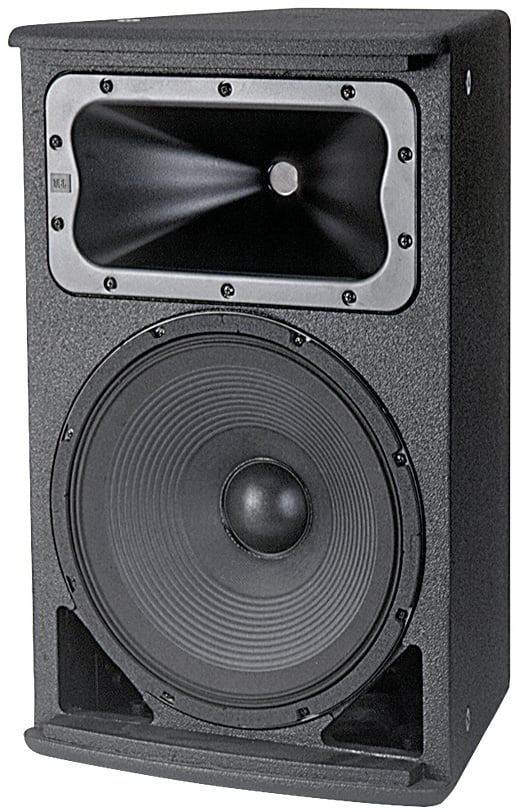

NOTE: Shown above in black, comes in white

JBL AC2212/00 Features:

  • 100° x 100° Coverage.
  • PT™ (Progressive Transition™) Waveguide for good pattern control with low distortion.
  • Bi-Amp/Passive Switchable
  • Optional  U-Bracket Model # MTU-4
  • Optional  planar array frame kit PAF-2K 3-wide array with ASB6118 subwoofer center.
  • For fixed installation applications requiring a compact cabinet, such as lecture halls, corporate learning centers, small performing arts facilities, theatrical sound design, auditoriums, sports facilities and themed entertainment venues.

JBL AC2212/00 Specifications:

  • Frequency Range (-10 dB): 50 Hz – 19 kHz
  • Frequency Response (±3 dB): 55 Hz – 17 kHz
  • Transducer (AES) Power Rating:
    • LF:  300 W (1100 W peak)
    • HF:  50 W (200 W peak)
  • Long-Term (IEC) System Power Rating: Passive mode: 250 W (1000 W peak)
  • Maximum SPL: Bi-amp mode:
    • LF:  120 dB-SPL cont avg (126 dB peak)
    • HF:  126 dB-SPL cont avg (132 dB peak)
  • Maximum SPL: Passive mode: 120 dB-SPL cont avg (126 dB peak)
  • Suspension Attachment: 15 points (4 top, 4 bottom, 2 each side, 3 rear), plus 4x M6 on rear for Omnimount™ 100 Series
  • Dimensions (in vertical cabinet orientation): 21.6" H x 14" W x 13.9" D (548 x 355 x 352 mm)
  • Net Weight: 42 lbs (19.1 kg)


  • MTU-4 U-Bracket
  • PAF-2K Planar Array Frame Kit: 2 pcs. AC2212/00 with ASB6118 subwoofer center (max 60° total splay)
JBL MTU-4 U-Bracket for AC2212 (White)
JBL MTU-4 U-Bracket for AC2212 (White)
U-Bracket for models AC2212 (/95, /64 or /00).  Does not fit custom weather resistant models.
