OUR PART # MIP3B

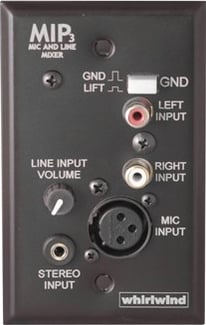

The Whirlwind MIP3B media input plate is a variation of some of their most popular DI boxes in standard gang plate sizes, for permanent installation in churches, conference rooms, banquet halls and many other applications. The MIP3B utilizes the Whirlwind Dimax transformer for low noise and superior sonic transparency. The plate comes in black anodized aluminum. Output connections on the rear are 3.5mm screw-type removable plugs (Phoenix 1984329 or equivalent).The MIP3B is a single-gang wallplate version of the Whirlwind podMIX passive mixing device, combining a microphone with a stereo line level audio source into a single microphone level output. A line input Volume control allows level matching and mixing between the music source and the microphone. Use it with MP3 players, computer audio outputs, DJ mixers, etc. in banquet halls, gymnasiums and party houses. Works with both dynamic and condenser microphones and passes phantom power from the sound system to the microphone input. Line signals are input via a 3.5mm stereo or RCA jacks. The microphone input is a balanced XLR-F. A Ground Lift switch breaks the ground connection between the inputs and the output screw terminal.
