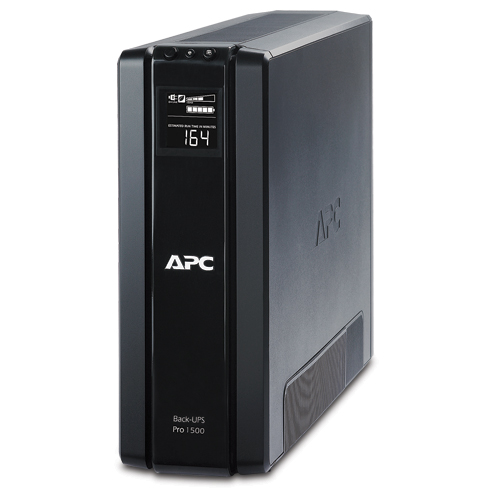

American Power Conversion BR1500G
Back UPS RS 1500VA

OUR PART #:  BR1500G

Our Price: $231.70
List Price: $298.00
You save 22%!
Write the first review.
American Power Conversion BR1500G
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Back-UPS Pro provides abundant battery backup power, so you can work through medium and extended length
power outages. It safeguards your equipment against damaging surges and spikes that travel along utility and data
lines. The Back-UPS Pro also features automatic voltage regulation (AVR), which instantly adjusts high and low
voltages to safe levels, so you can work indefinitely during brownouts and overvoltages. The unit also includes unique “green” features, like power-saving outlets that automatically turn off idle peripherals. A high efficiency charging system and “AVR Bypass” also reduce power consumption.



·         Output Power Capacity: 865 Watts/ 1500 VA

·         Nominal Output Voltage: 120V

·         Output Frequency (sync to mains): 47-63Hz

·         Waveform Type: Stepped approximation to a sine wave

·         Output Connections:

o   (5) NEMA 5-15R (Battery backup)

o   (5) NEMA 5-15R (Surge Protection)


·         Nominal Input Voltage: 120V

·         Input Frequency: 50/60HZ +/-3Hz (auto-sensing)

·         Input Connections: NEMA 5-15P

·         Cord Length: 6’ (1.83m)

·         Input voltage range for main operations: 88 – 139V

Surge Protection & Filtering

·         Surge Energy Rating: 355 Joules

·         Filtering:

o   Full time multi-pole noise filtering

o   5% of IEEE surge let-through

o   Zero clamping response time: instantaneous

·         Surge Protection:

o   Network Line: 10/100/1000 Base-T Ethernet (RJ-45 connector)

o   Coaxial cable for CATV, SATV, modem, Audio-Video (coax connector)

Batteries & Runtime

·         Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte, leak-proof

·         Recharge Time: 8 hours

Communications & Management

·         Control Panel: Multi-function LCD status and control console

·         Audible Alarm: Alarm when on battery, low battery alarm, overload alarm


·         Maximum Height: 11.90” (302mm)

·         Maximum Width: 4.40” (112mm)

·         Maximum Depth: 15” (381mm)

·         Weight: 29.40 lbs. (13.36 kg)

·         Operating Environment: 32 - 104 °F (0 - 40 °C)

·         Operating Relative Humidity: 0-95%


·         Regulatory Approvals: FCC Part 15 Class B,NOM,TUV,UL 1778

·         Standard Warranty: 3 years repair or replace

·         Equipment Protection Policy: Lifetime $150,000

·         Environmental Compliance: RoHS, REACH, contains no SVHCs
