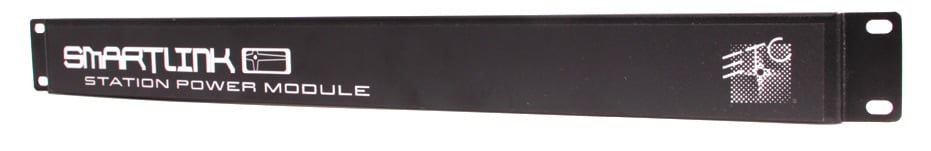

ETC S-SPM4 SmartLink Station Power Module

Dimmer pack with a centralized termination point of SmartLink, DMX, and an Emergency contact input. The LinkPower Supply provides power for up to four SmartLink wall stations for remote preset and sequence activation. Only one LinkPower supply per segment (system) allowed. Power is provided from the SmartPack to the SmartLink Station Power Module via the RJ45-patch cable, provided in the kit.

Note

NOTE: DMX can only be connected to portable SmartPacks via the XLR connectors on the front panel - although the IO board has a connector labelled for DMX, it is not used.
