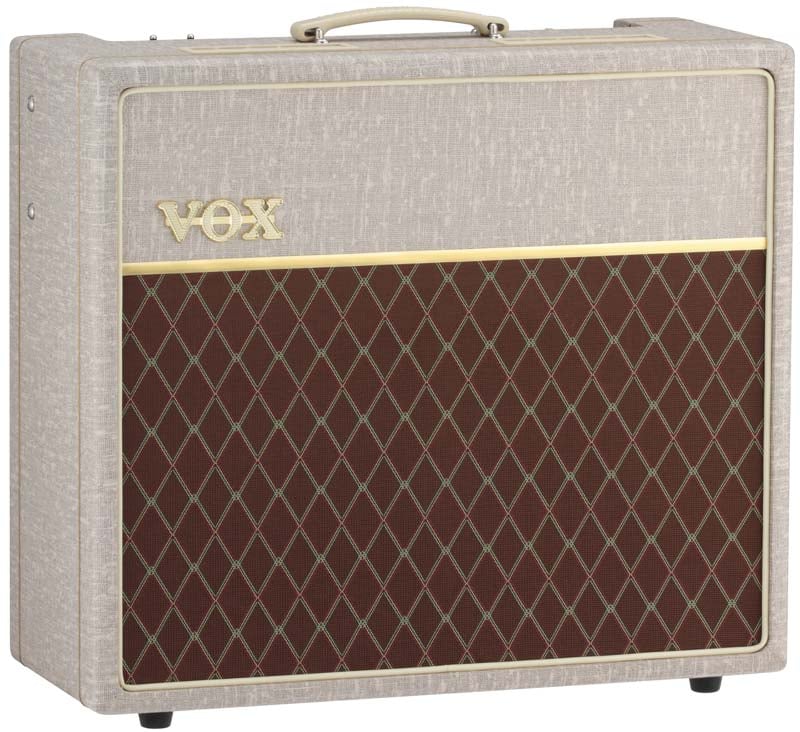

Vox AC15HW1 HandwiredAC15Combo 15W Hand-Wired Combo 1x12" Guitar Amp with Celestion G12M Greenback Speaker

OUR PART #: AC15HW1 MFR #: AC15HW1

Copied to clipboard

The VOX Hand-Wired Series – turret board construction and hand-wiring make this the ultimate amp, with rich versatile voicing and a classic powerful sound. ...Read more

Vox AC15HW1 HandwiredAC15Combo 15W Hand-Wired Combo 1x12" Guitar Amp With Celestion G12M Greenback Speaker Image 1
Vox AC15HW1 HandwiredAC15Combo 15W Hand-Wired Combo 1x12" Guitar Amp With Celestion G12M Greenback Speaker Image 2
Vox AC15HW1 HandwiredAC15Combo 15W Hand-Wired Combo 1x12" Guitar Amp With Celestion G12M Greenback Speaker
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The VOX Hand-Wired Series – turret board construction and hand-wiring make this the ultimate amp, with rich versatile voicing and a classic powerful sound.

Vox Amplification AC15HW1 Includes:

  • Power cable
  • VFS1 footswitch
  • Dust cover

Vox Amplification AC15HW1 Features:

  • Hand-wired turret board construction
  • Birch-ply cabinets featuring solid bracing and a natural high frequency diffuser
  • All-tube design
  • ECC83/12AX7 preamp tubes (x3)
  • EL84 Duet
  • EZ81 rectifier
  • Fitted with matched Ruby Tubes that provide extended dynamic range
  • Traditional VOX two-channel design.
  • Top Boost and Normal. High and Low inputs for each channel
  • The Normal channel provides an additional BRIGHT switch.
  • The top boost channel provides a HOT/COOL switch to achieve even more gain
  • Master Volume/BYPASS switch completely bypasses the Master Volume section
  • OP mode switch cut the amp’s Output Power level in half
  • Vintage fawn-colored vinyl, reminiscent of the 1960 classic AC30
  • 1 Celestion G12M Greenback speaker
  • VFS1 footswitch controlls the Top Boost channel's HOT/COOL switch
  • A premium, custom-fit dust cover is included with every model

Vox Amplification AC15HW1 Specifications:

  • Output Power: 15 Watts RMS into 8/16 Ohms
  • Tube Complement: Preamp: ECC83/12AX7 (x3), Power amp: EL84 (x2), Rectifier: EZ81
  • Speakers: 12” Celestion G12M Green Back (x1); 16 Ohm
  • Inputs:
    • NORMAL Channel Jacks: HIGH (x1); LOW (x1)
    • TOP BOOST Channel Jacks: HIGH (x1); LOW (x1)
    • FOOT SWITCH Jack
  • Outputs: External Speaker Jack, Extension Speaker Jack
  • Dimensions (W x D x H): 24.02" x 10.24" x 21.65" (610 x 260 x 550 mm)
  • Weight: 48.9 lbs. (22.2 kg)
