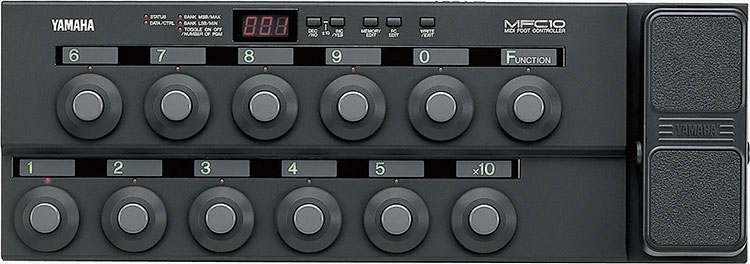

Yamaha MFC-10
Midi Foot Controller for Yamaha TYROS 1-3

OUR PART #  MFC-10

Our Price: $309.70
List Price: $350.00
You save 12%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

A MIDI foot controller designed for use with Yamaha products such as the Tyros 1-3, G50 Guitar MIDI Converter and the WX11 Wind MIDI Controller.

Features/Specifications

  • Program Change Mode: By operating the foot switches, you can transmit 128 different Program Change and Bank Select messages from memory. Bank Select MSB: h'Bn, h'00, 00-127; Bank Select LSB: h'Bn, h'20, 00-127; Program Change: h'Cn, 00-127.
  • Function Mode: By operating the foot switches, you can transmit 100 different Control Changes etc. from memory. Note Off: h'8n, 00-127, 00-127; Note On: h'9n, 00-127, 01-127; Control Change: h'Bn, 00-127, 00-127; Program Change: h'Cn, 00-127; Start/Stop/Continue: h'FA, h'FB, h'BC; Song Select: h'F3, 00-127
  • Markings on the Footswitches: The number (0-9), F, and x10 markings on the foot switches are always illuminated by a green LED, allowing operation even in a dark location. Of these, the numbers (0-9) change to red when a memory is selected, and "F" lights red in Function mode.
  • Control Changes:  Control Changes etc. can be transmitted using the build-in foot controller (pedal) or an external foot controller. Control Change: h'Bn, 00-120, 00-127; After Touch: h'Dn, 00-127; Pitch Bend: h'En, 00-127, 00-127
  • MIDI IN Connector: A MIDI IN connector is provided and its input is merged and transmitted from MIDI OUT.
  • WX-IN Jack: A WX-IN jack is provided, allowing controllers such as the WX11 to be directly connected. (A switch allows you to select between this and MIDI IN.)
  • Foot Select Switch: The Function Select Switch lets you choose to use the Program Change mode and Function mode together or independently. This allows 25 memories (5 banks x 5 memories) to be used as program changes. However, by pressing the [Function] foot switches [1-5], you will be able to use 25 program changes and 100 functions.
  • Program Change or Function Mode: The Function Select Switch allows you to use the previously-described Program Change mode and Function mode independently. In this case you will be able to use 128 program changes and 100 functions.
  • Program Change/Function Mode - Used Together: Program Change mode and Function mode can be used together. Foot switches [6-0] are fixed as Function switches, and foot switches [1-5] are used for program changes.
  • Controls: Three 7-segment LEDs, 27 LEDs, Panel switches x 5, Function select switch, Foot switches x 12, Foot controller x 1, MIDI IN/WX-IN select switch
  • Connectors: MIDI IN (WX-IN)/OUT, Foot Switch or Foot Controller inputs (FC5, FC7, etc.) x4, DC 12V IN: 12V/700mA
  • Power Supply: PA3B or Equivalent AC adapter
  • Dimensions: 24" x 8-1/4" x 2-1/4"
  • Weight: 7lbs, 11 oz.

Yamaha MFC-10
Midi Foot Controller for Yamaha TYROS 1-3

OUR PART #  MFC-10

Product Information:

A MIDI foot controller designed for use with Yamaha products such as the Tyros 1-3, G50 Guitar MIDI Converter and the WX11 Wind MIDI Controller.

Features/Specifications

  • Program Change Mode: By operating the foot switches, you can transmit 128 different Program Change and Bank Select messages from memory. Bank Select MSB: h'Bn, h'00, 00-127; Bank Select LSB: h'Bn, h'20, 00-127; Program Change: h'Cn, 00-127.
  • Function Mode: By operating the foot switches, you can transmit 100 different Control Changes etc. from memory. Note Off: h'8n, 00-127, 00-127; Note On: h'9n, 00-127, 01-127; Control Change: h'Bn, 00-127, 00-127; Program Change: h'Cn, 00-127; Start/Stop/Continue: h'FA, h'FB, h'BC; Song Select: h'F3, 00-127
  • Markings on the Footswitches: The number (0-9), F, and x10 markings on the foot switches are always illuminated by a green LED, allowing operation even in a dark location. Of these, the numbers (0-9) change to red when a memory is selected, and "F" lights red in Function mode.
  • Control Changes:  Control Changes etc. can be transmitted using the build-in foot controller (pedal) or an external foot controller. Control Change: h'Bn, 00-120, 00-127; After Touch: h'Dn, 00-127; Pitch Bend: h'En, 00-127, 00-127
  • MIDI IN Connector: A MIDI IN connector is provided and its input is merged and transmitted from MIDI OUT.
  • WX-IN Jack: A WX-IN jack is provided, allowing controllers such as the WX11 to be directly connected. (A switch allows you to select between this and MIDI IN.)
  • Foot Select Switch: The Function Select Switch lets you choose to use the Program Change mode and Function mode together or independently. This allows 25 memories (5 banks x 5 memories) to be used as program changes. However, by pressing the [Function] foot switches [1-5], you will be able to use 25 program changes and 100 functions.
  • Program Change or Function Mode: The Function Select Switch allows you to use the previously-described Program Change mode and Function mode independently. In this case you will be able to use 128 program changes and 100 functions.
  • Program Change/Function Mode - Used Together: Program Change mode and Function mode can be used together. Foot switches [6-0] are fixed as Function switches, and foot switches [1-5] are used for program changes.
  • Controls: Three 7-segment LEDs, 27 LEDs, Panel switches x 5, Function select switch, Foot switches x 12, Foot controller x 1, MIDI IN/WX-IN select switch
  • Connectors: MIDI IN (WX-IN)/OUT, Foot Switch or Foot Controller inputs (FC5, FC7, etc.) x4, DC 12V IN: 12V/700mA
  • Power Supply: PA3B or Equivalent AC adapter
  • Dimensions: 24" x 8-1/4" x 2-1/4"
  • Weight: 7lbs, 11 oz.
