Lightronics Inc. TL-3012-DMX01
12 Channel Memory Control Console

OUR PART #:  TL-3012-DMX01

The TL-3012 is a compact, portable, digital dimmer controller. It provides 12 channels of LMX-128 (industry standard multiplex) control on a 3 wire cable.
Learn More
Our Price: $415.50
List Price: $554.00
You save 25%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Lightronics Inc. TL-3012-DMX01
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

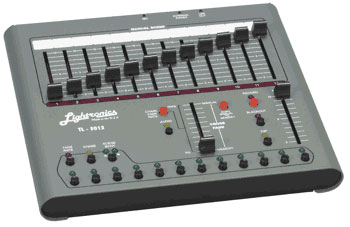

The TL-3012 is a compact, portable, digital dimmer controller. It provides 12 channels of LMX-128 (industry standard multiplex) control on a 3 wire cable. It can optionally provide DMX output. The TL-3012 operates in a 2 scene manual mode or can provide 24 preset scenes organized in 2 banks of 12 scenes each. Twelve user defined chase patterns are always available. Scene fade rate, chase rate and chase fade rate are user controlled. Audio may also be used as a chase rate control. Other features of the TL-3012 include: a master fader, momentary buttons, and blackout control. Scenes and chases stored in the unit are not lost when the unit is turned off.

Lightronics Inc. TL-3012-DMX01 Memory Control Console Specifications:

  • Channels: 12
  • Operating modes: Two scene manual mode
    Preset scene playbackmode
    Chasemode
  • Scene memory: 24 scenes total in 2 banks of 12 each
  • Chase: 12 programmable 12 step chases
  • Control protocol: LMX-128 (multiplex)
    Optional DMX-512
  • Output connectors: 3 pin XLR connector
    5 pin XLR for DMX-512
  • Compatibility: Multiplex protocol compatible withother multiplexed systems
  • Power input: 13 VAC or +15VDC
    Optional external power supply
  • Dimensions: 10.25 x 9.25 x 2.5 inches
  • Weight: 4.3 lbs
