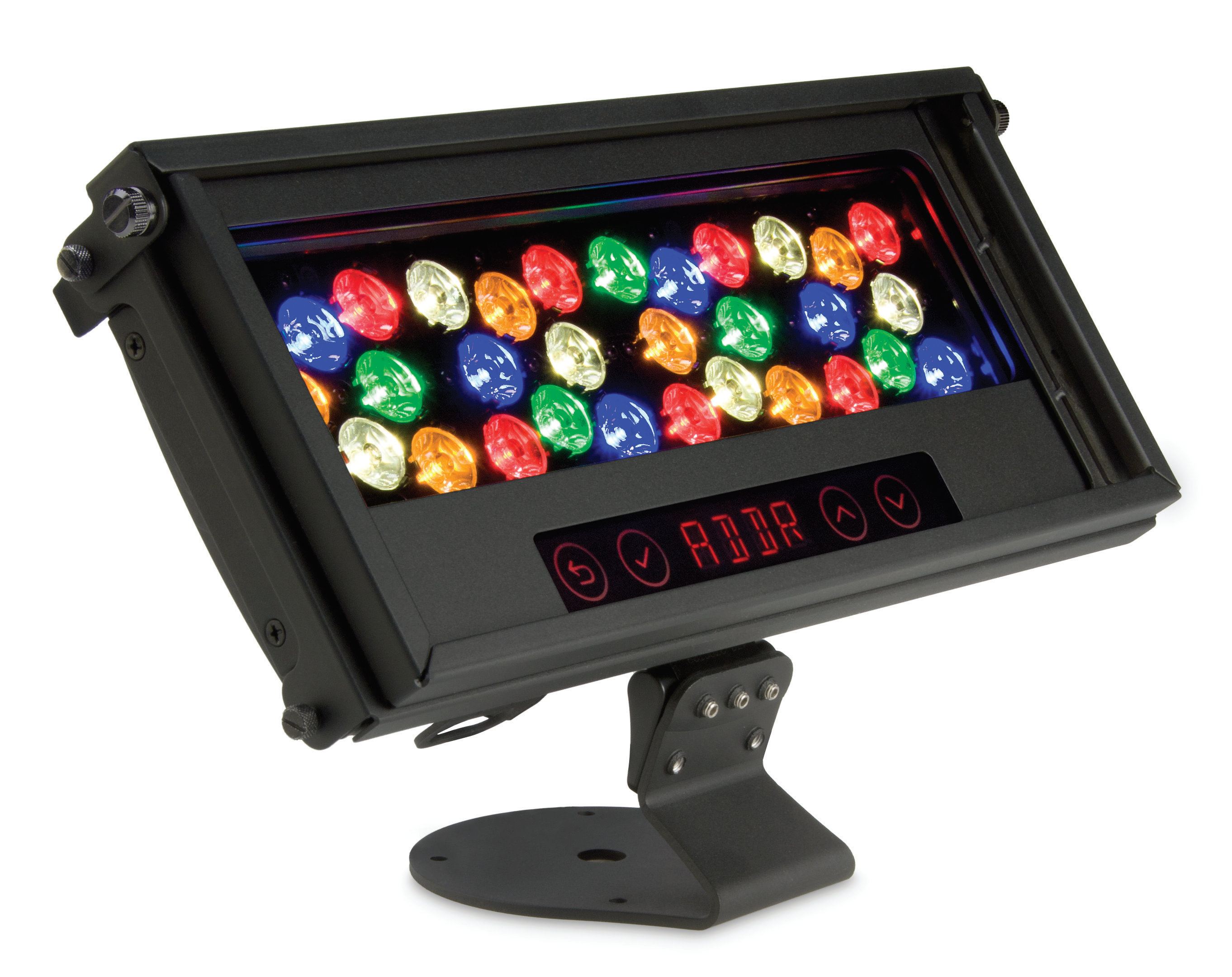

Philips Color Kinetics 116-000029-00
ColorBlastTRX RGBAW LED Wash/Flood/Spotlight Fixture

OUR PART #  116-000029-00

Our Price: $779.00
(Low Price Guarantee)
Please call for availability.

Recommended Accessories

Phlips Color Kinetics' ColorBlast® TRX is a fully-featured RGBAW LED wash/flood/spotlight, offering enhanced color range, light output of up to 1577 lumens, and onboard addressing and configuration features.  The ColorBlast TRX is designed to withstand demanding stage, set, and touring environments.

Philip Color Kinetics 116-000029-00 Features:

  • Five-channel RGBAW in/out, three-channel RGB in/out, and three-channel RGB in mapped to five-channel RGBAW out modes.
  • Amber and neutral white LEDs seamlessly blend with red, green, and blue LEDs to produce a significantly expanded color palette, adding intense yellows, high-quality whites, and a range of subtle pastel colors to the millions of saturated colors achievable with standard RGB lighting fixtures.
  • DMX and fixed color modes. 16-bit resolution supports smooth dimming and precise color control. Adjustable dimming curves and LED transition speeds emulate the behavior of other Philips Color Kinetics fixtures and conventional theatrical fixtures with DMX dimming.
  • Touch-sensitive menus offer direct access to all on-board functions.Fixture self-test visually confirms proper fixture operation, while diagnostics display information such as serial number, operating temperature, and input voltage.
  • Pivoting bezel and included 23° soft-focus and 10° clear tempered glass spread lenses let you switch quickly between soft-edge wash lighting and extended beam projection.
  • An industrial-grade constant torque hinge for 110° fixture tilting and aiming.
  • A pre-assembled mounting base accommodates truss clamps and other mounting and positioning options. Built-in 6 ft. (1.8 m) power cables can be extended up to 175 ft (53.3 m) with standard color scroller or XLR patch cables. An integral safety bracket lets you easily attach a safety tether.
  • Top hats, half top hats, barndoors, egg crate louvers, and spread lenses easily mount to the included accessory holder.

Philip Color Kinetics 116-000029-00 Specifications:

  • Beam Angle: 10° or 23° depending upon the version purchased
  • Lumens*: 1577 or 1372, depending upon the version purchased
    *Lumen measurement complies with IES LM 79-08.
  • Input voltage: 24 VDC
  • Power Consumption: 50 W maximum at full output, steady state
  • Interface: DMX via PDS-750 TRX, PDS-750 TR, PDS-375 TR, PDS-150, or PDS-6024V.  Fixture firmware addressable 8- or 16-bit control, RGBAW or RBG modes.
  • Control System: Philips full range of controllers, including Light System Manager and iPlayer 3, or 3rd party controllers
  • Dimensions (HxWxD): 8" x 14" x 3" (203 x 356 x 76 mm)
  • Weight: 7.25 lbs (3.3 kg)
  • Housing: die-cast aluminum, powder-coated black finish
  • Lens: clear glass or frosted glass, depending upon the version purchased
  • Fixture connections: 6 ft. (1.8 mm) power/data cable with 4-pin XLR connector
  • Operating Temperature Range: -40° – 122° F (-40° – 50° C)
  • Startup Temperature Range: -4° – 122° F (-20° – 50° C)
  • Storage Temperature Range: -40° – 176° F (-40° – 80° C)
  • Humidity: 0 – 95%, non-condensing
  • Maximum Cable Length: 175 ft. (53.3 m), with extension to built-in 6 ft.(1.8 m) power cable
  • Cetification: UL / cUL, FCC Class A, CE
  • LED Class: Class 2 LED product
  • Environment: Dry / Damp Location, IP22
Horizontal/Vertical Spread Lens, 40°/40Philips Color Kinetics 120-000025-01 Horizontal/Vertical Spread Lens, 40°/40
In Stock

Our Price:$54.00

Barndoor for ColorBlast 12 Black, Wet & DampPhilips Color Kinetics 120-000019-04 Barndoor for ColorBlast 12 Black, Wet & Damp

Barndoors provide adjustable beam control.  Movable doors can be set to cut off stray beams where needed, such as off of scenery or projection screens.  Barndoors drop into the Accessory Holders.

Usually ships in 7-14 business days.
Need it sooner? Call us!

Free Shipping Available

Our Price:$105.00

Egg Crate Louver for ColorBlast12 Black, Wet & DampPhilips Color Kinetics 120-000015-04 Egg Crate Louver for ColorBlast12 Black, Wet & Damp

Egg Crate Louvers serve a similar function as a Top Hat, but do so in a fraction of the depth.  A 45° cut-off is obtained by using cells that are 0.5" deep.  Egg Crate Louvers drop into Accessory Holders, and give a sleek ...

Usually ships in 7-14 business days.
Need it sooner? Call us!

Free Shipping Available

Our Price:$101.00

Horizontal Spread Lens for ColorBlast 12, 36/50°Philips Color Kinetics 120-000025-00 Horizontal Spread Lens for ColorBlast 12, 36/50°

Horizontal Spread Lenses are available to spread the beam from the standard beamspread of 22°, out to 36° or 50°.  Horizontal Spread Lenses drop into Accessory Holders, and can be used in conjunction with Top Hats and Half Top Hats.

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$62.00

Black Top Hat for ColorBlast 12 Fixtures, for Wet & Damp EnvironmentsPhilips Color Kinetics 120-000005-04 Black Top Hat for ColorBlast 12 Fixtures, for Wet & Damp Environments

Top Hats serve two important functions: control spill light to a predictable area and prevent the audience or viewers from seeing the bright and possibly distracting source of the light.  Top Hats drop into Accessory Holders and are ...

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$43.00

Half Top Hat for ColorBlast 12 Black, Wet & DampPhilips Color Kinetics 120-000009-04 Half Top Hat for ColorBlast 12 Black, Wet & Damp

Half Top Hats are similar to Top Hats, but are angled on one side, preventing the viewer from seeing the bright light source, while not restricting the beam on one side.  Half Top Hats drop into Accessory Holders and are held in place ...

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$39.00
