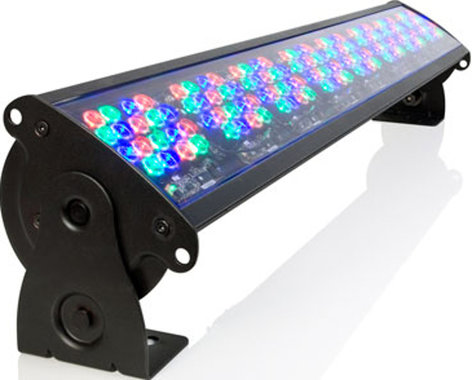

Philips Color Kinetics 116-000022-00
4 ft. ColorBlaze 48 Border Light

OUR PART #  116-000022-00

Call for price! Not available online.


Recommended Accessories

Philips Color Kinetics' ColorBlaze® is a robust, high-performance linear LED fixture for washing large areas with far reaching, rich, saturated colors.  With a rugged, extruded aluminum housing, ColorBlaze is designed to withstand the rigors of the touring and rental market.

Philips Color Kinetics 116-000022-00 Features:

  • The ColorBlaze 48 (4 ft., 1.2 m) is controllable in 6" (152 mm) segments to support intricate, color-changing effects. Each segment outputs over 300 lumens
  • Auto-switching power supply accepts power input of110 – 240 VAC, eliminating the need for additional equipment and enabling consistent use around the world.
  • Onboard push-button addressing offers easy configuration without external addressing tools
  • Fixtures can be connected in series of up to 1,000 ft (300 m) using any combination of RJ45, Ethercon, or XLR-5 data cables.
  • Mounting brackets and locking knobs enable 180° rotation, adjustment, and locking without special tools.  Optional T-handle mounting bracket, accessory holders, spread lenses, and other custom accessories are also available.
  • Onboard cooling fan and thermal sensor prevent overheating.  A fullrange of replacement parts is available to keep ColorBlaze fixtures in servicefor the long haul.

Philips Color Kinetics 116-000022-00 Specifications:

  • Beam Angle: 10°
  • Lumens*: 3708
    *Lumen measurement complies with IES LM-79-08
  • Color Range: 16.7 million additive RGB colors; continuously variable intensity
  • Mixing Distance: 6" (152 mm) to uniform light
  • Lumen Maintenance**: 50,000+ hours L50 @ 50° C (full output)
    **Philips Color Kinetics follows IESNALM-80-08 in using L50 (lumen depreciation to 50% of original light output) to define useful life of RGB LED fixtures. At maximum operating temperature (typically 50° C) and displaying white (full output), the useful life exceeds 50,000 hours. At room temperature and displaying a color wash effect, the useful life ranges from 80,000 to 100,000 hours or more.
  • Input Voltage: 100-240 VAC, auto-switching, 50/60 Hz
  • Power Consumption: 280W maximum at full output,steady state
  • Interface: DMX
  • Control System: Philips full range of controllers,including Light System Manager and iPlayer 3, or 3rd-party DMX controllers
  • Dimensions (HxWxD): 7.5" x 45.3" x 6.5" (191 x 1150 x165 mm)
  • Weight: 40 lbs (18.1 kg)
  • Housing: Extruded aluminum, black finish
  • Lens: Clear polycarbonate
  • Fixture connections: IEC power cable, RJ45, Ethercon,or XLR-5 data connections
  • Operating Temperature: -40° – 122° F (-40° – 50° C)
  • Startup Temperature: -4° – 122° F (-20° – 50° C)
  • Humidity: 0-95%, non-condensing
  • Certification: UL / cUL, FCC Class A, CE, PSE
  • LED Class: Class 2 LED product
  • Environment: Dry Location, IP20
ColorBlaze Replacement Fan Assembly Kit
Philips Color Kinetics 120-000043-00 ColorBlaze Replacement Fan Assembly Kit
The Philips Color Kinetics 120-000043-00 is a replacement fan for the ColorBlaze lighting fixture.
Call for price! Not available online.
Controller Panel for ColorBlaze 48
Philips Color Kinetics 120-000045-00 Controller Panel for ColorBlaze 48
Philips Color Kinetics' 120-000045-00 is a controller panel for their ColorBlaze 48 fixture.
Call for price! Not available online.
ColorBlaze Power Supply Kit with Thermal Sensor
Philips Color Kinetics 120-000042-00 ColorBlaze Power Supply Kit with Thermal Sensor
Power supply with thermal sensor for ColorBlaze LED fixtures.
Call for price! Not available online.
ColorBlaze Power Supply Kit WITHOUT Thermal Sensor
Philips Color Kinetics 120-000041-00 ColorBlaze Power Supply Kit WITHOUT Thermal Sensor
This power supply kit is for use with Philips Color Kinetics' ColorBlaze fixtures and DOES NOT include a thermal sensor.
Call for price! Not available online.
Replacement IEC Connector Kit
Philips Color Kinetics 120-000053-00 Replacement IEC Connector Kit
Philips Color Kinetics offers this replacement part from their ColorBlaze product lineup - a replacement IEC Connector Kit (Item Number 120-000053-00). The kit Includes: (1) IEC Connector Kit Assembly, (1) Set Mounting Hardware.The ...
Call for price! Not available online.
