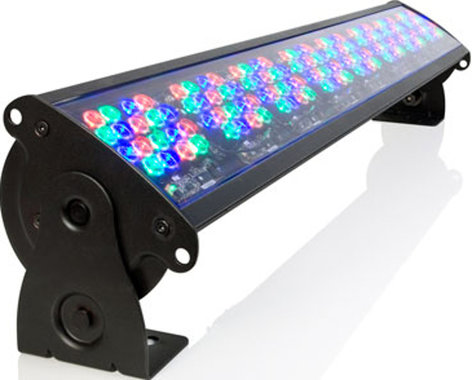

Philips Color Kinetics 116-000021-00
6 ft. ColorBlaze 72 Border Light

OUR PART #:  116-000021-00

Philips Color Kinetics' ColorBlaze® is a robust, high-performance linear LED fixture for washing large areas with far reaching, rich, saturated colors.
Learn More
Similar Products

Philips Color Kinetics' ColorBlaze® is a robust, high-performance linear LED fixture for washing large areas with far reaching, rich, saturated colors. With a rugged, extruded aluminum housing, ColorBlaze is designed to withstand the rigors of the touring and rental market.

Philips Color Kinetics 116-000021-00 Features:

  • The ColorBlaze 72 (6 ft, 1.8 m) is controllable in 6" (152 mm) segments to support intricate, color-changing effects. Each segment outputs over 300 lumens
  • Auto-switching power supply accepts power input of 110 – 240 VAC, eliminating the need for additional equipment and enabling consistent use around the world.
  • Onboard push-button addressing offers easy configuration without external addressing tools
  • Fixtures can be connected in series of up to 1,000 ft (300 m) using any combination of RJ45, Ethercon, or XLR-5 data cables.
  • Mounting brackets and locking knobs enable 180°rotation, adjustment, and locking without special tools. Optional T-handle mounting bracket, accessory holders, spread lenses, and other custom accessories are also available.
  • Onboard cooling fan and thermal sensor prevent overheating.  A full range of replacement parts is available to keep ColorBlaze fixtures in service for the long haul.

Philips Color Kinetics 116-000021-00 Specifications:

  • Beam Angle: 10°
  • Lumens*: 5562
    *Lumen measurement complies with IES LM-79-08
  • Color Range: 16.7 million additive RGB colors; continuously variable intensity
  • Mixing Distance: 6" (152 mm) to uniform light
  • Lumen Maintenance**: 50,000+ hours L50 @ 50° C (full output)
    **Philips Color Kinetics follows IESNALM-80-08 in using L50 (lumen depreciation to 50% of original light output) todefine useful life of RGB LED fixtures. At maximum operating temperature (typically 50° C) and displaying white (full output), the useful life exceeds 50,000 hours. At room temperature and displaying a color wash effect, the useful life ranges from 80,000 to 100,000 hours or more.
  • Input Voltage: 100-240 VAC, auto-switching, 50/60 Hz
  • Power Consumption: 420W maximum at full output,steady state
  • Interface: DMX
  • Control System: Philips full range of controllers, including Light System Manager and iPlayer 3, or 3rd-party DMX controllers
  • Dimensions (HxWxD): 7.5" x 68.7" x 6.5" (191 x 1746 x165 mm)
  • Weight: 60 lbs (27.2 kg)
  • Housing: Extruded aluminum, black finish
  • Lens: Clear polycarbonate
  • Fixture connections: IEC power cable, RJ45, Ethercon, or XLR-5 data connections
  • Operating Temperature: -40° – 122° F (-40° – 50° C)
  • Startup Temperature: -4° – 122° F (-20° – 50° C)
  • Humidity: 0-95%, non-condensing
  • Certification: UL / cUL, FCC Class A, CE, PSE
  • LED Class: Class 2 LED product
  • Environment: Dry Location, IP20
18° Colorblaze 48/72 Retrofit Kit
Philips 116-000036-01 18° Colorblaze 48/72 Retrofit Kit
The Philips 116-000036-01 18° ColorBlaze Upgrade Kit retrofits any ColorBlaze 48 or ColorBlaze 72 fixture to four-channel RGBW or RGBA operation. Expanded on-board controls feature a range of new functions, including multiple color ...
1,948.70 3,000.00 35

Usually ships in 7-14 business days.
Need it sooner? Call us!
Free Shipping Available
Upgrade for ColorBlaze RGBA 18° Beam Angle LED Batten
Philips Color Kinetics ColorBlaze 72 Upgrade Kit Upgrade for ColorBlaze RGBA 18° Beam Angle LED Batten
The ColorBlaze Upgrade Kit from Philips Color Kinetics retrofits any ColorBlaze 72 fixture to four-channel RGBW or RGBA operation. This upgrade kit (Item Number: 116-000036-00) is designed for the RGBA ColorBlaze 72 LED batten with an 18° ...
1,948.70 3,000.00 35

Usually ships in 7-14 business days.
Need it sooner? Call us!
Free Shipping Available
ColorBlaze 72  36° / 50° Horizontal Spread Lens
Philips Color Kinetics 120-000023-00 ColorBlaze 72 36° / 50° Horizontal Spread Lens
The Philips Color Kinetics 120-000023-00 is a 36°/50° horizontal spread lens for the ColorBlaze 72.
Call for price! Not available online.

Controller Panel for ColorBlaze 72
Philips Color Kinetics 120-000045-01 Controller Panel for ColorBlaze 72
Philips Color Kinetics' 120-000045-01 is a controller panel for their ColorBlaze 72 fixture.
Call for price! Not available online.

ColorBlaze Power Supply Kit with Thermal Sensor
Philips Color Kinetics 120-000042-00 ColorBlaze Power Supply Kit with Thermal Sensor
Power supply with thermal sensor for ColorBlaze LED fixtures.
Call for price! Not available online.

ColorBlaze Power Supply Kit WITHOUT Thermal Sensor
Philips Color Kinetics 120-000041-00 ColorBlaze Power Supply Kit WITHOUT Thermal Sensor
This power supply kit is for use with Philips Color Kinetics' ColorBlaze fixtures and DOES NOT include a thermal sensor.
Call for price! Not available online.

ColorBlaze Replacement Fan Assembly Kit
Philips Color Kinetics 120-000043-00 ColorBlaze Replacement Fan Assembly Kit
The Philips Color Kinetics 120-000043-00 is a replacement fan for the ColorBlaze lighting fixture.
Call for price! Not available online.

Replacement IEC Connector Kit
Philips Color Kinetics 120-000053-00 Replacement IEC Connector Kit
Philips Color Kinetics offers this replacement part from their ColorBlaze product lineup - a replacement IEC Connector Kit (Item Number 120-000053-00). The kit Includes: (1) IEC Connector Kit Assembly, (1) Set Mounting Hardware.The ...
Call for price! Not available online.
