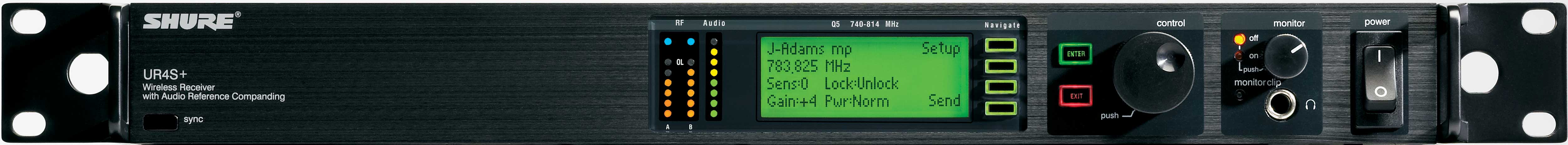

Shure UR4S+-G1
Single UHF-R Receiver G1 (470-530)

OUR PART #  UR4S+-G1

Our Price: $1,954.00
List Price: $2,443.00
You save 20%! (Low Price Guarantee)
In Stock

Recommended Accessories

The UR4S+ receivers are part of the flagship UHF-R system and provide single-channel options for premium wireless. As "+"-versions these receivers include RF distribution ports that allow up to 10 receivers to share the RF signal from a single pair of antennas. Up to 47 compatible systems may be used together without audio degradation or interference. Within a given frequency you can choose from 3000 selectable frequencies across a 75MHz bandwidth. Using the Shure Wireless Workbench® System Control Software, which is included with the receiver, you can remotely monitor and control individual and networked receivers.

Shure UR4S+ Features

  • 3000 selectable frequencies across 75Mhz bandwidth
  • Up to 47 compatible channels per band
  • Cascading: Includes RF distribution ports that allow up to 10 receivers to share the RF singal from a single pair of antennas
  • Track Tuning Filtering Technology
  • Networked Automatic Frequency Selection
  • Automatic Transmitter Setup (including custom group upload)
  • Flash Memory to store six 60-channel custom frequency groups
  • Shure's patented Audio Reference Companding
  • Multi-function bit-mapped backlit LCD
  • Built-in USB & Ethernet network compatibility
  • Shure's Wireless Workbench Control/Monitoring Software
  • Remoteable antennas
  • Shure's microprocessor-controlled diversity

Shure UR4S+ Specifications

  • Power Supply: Internal
  • Battery Status: Yes
  • RF Carrier Frequency Range: 470-530MHz, depending on region
  • Working Range (UR1): 500' under typical conditions, 1600' line-of-sight,outdoors for a single system
  • Audio Frequency Response: 40Hz - 18kHz (+1dB, -3dB)
  • Gain Adjustment Range (UR1): -20 to +35dB
  • Modulation: FM (45kHz max. deviation), compander system with pre- and de-emphasis
  • Dynamic Range: > 105dB, A-weighted
  • Image Rejection: > 110dB typical
  • RF Sensitivity: -107dBm typical, 12dB SINAD
  • Spurious Rejection: > 90dB Typical
  • Ultimate Quieting (ref 45kHz deviation): > 100dB, A-weighted
  • System Distortion (ref. +/- 45kHz deviation, 1kHz modulation): < 0.3% total harmonic distortion typical
  • Power Requirements: 100 to 240VAC, 50/60Hz
  • Current Drain: 0.8A max
  • Operating Temperature Range: 0°F to 135°F
  • Overall Dimensions: 1.72" x 19" x 14.39"
  • Net Weight: 10.6lbs
  • Housing: Galvanized Steel
Antenna 1/2 Wave Omni 470-1100Shure UA860SWB Antenna 1/2 Wave Omni 470-1100

The UA860SWB passive wide band UHF omnidirectional antenna is weather-resistant and suitable for outdoor use. 470-1100 MHz.Features: Greatly improves reception of wireless signal from SLX, ULX, UC, UHF and UHF-R(TM) Wireless Systems ...

In Stock

Free Shipping Available

Our Price:$278.30List Price: $284.00

Passive antenna splitter to 2 receiversShure UA221 Passive antenna splitter to 2 receivers

The Shure UA221 Antenna Splitter/Combiner Kit includes two adapters that can be used as one–input, two–output or two-input, one-output passive antenna splitter/combiners for UC4, SLX4, ULXS4, ULXP4, U4S and U4D receivers. The UA221 Kit ...

In Stock

Free Shipping Available

Our Price:$148.72List Price: $151.00

Front Mount Antenna KitShure UA600 Front Mount Antenna Kit

The Shure UA600 is a front mount antenna kit for Model U4S, U4D and UC4 UHF wireless receivers.What's in the Shure UA600 Box: 2 bulkhead adapters 2 1/2” internal-tooth lockwashers 2 1/2-28 hex nuts 2 RG-58/U antenna cables

In Stock

Our Price:$47.12List Price: $48.00

6' UHF coaxial cable, BNC to BNCShure UA806 6' UHF coaxial cable, BNC to BNC

Remote Antenna Extension Cable BNC-BNC, RG58C/U type 6 foot (2m).

In Stock

Our Price:$21.17List Price: $22.00

2' UHF coaxial cable, BNC to BNCShure UA802 2' UHF coaxial cable, BNC to BNC

Coaxial Cable BNC-BNC, RG58C/U type, 2 foot (0.6m).

In Stock

Our Price:$15.42List Price: $16.00

1/2 Wave Omnidirectional AntennaShure UA8 1/2 Wave Omnidirectional Antenna

The Shure UA8 is a 1/2 wave omnidirectional receiver antenna for UHF-R®, ULX®, SLX®, ULX-D®, and BLX4R receivers (frequency range dependent) and PSM transmitters.  Features 0-, 45-, and 90-degree positioning for increased ...

In Stock

Our Price:$30.92List Price: $32.00
