Shure UR4D+-G1
Dual UHF-R Receiver 470-530

OUR PART #  UR4D+-G1

Our Price: $2,889.00
List Price: $3,611.00
You save 20%! (Low Price Guarantee)
In Stock

Recommended Accessories

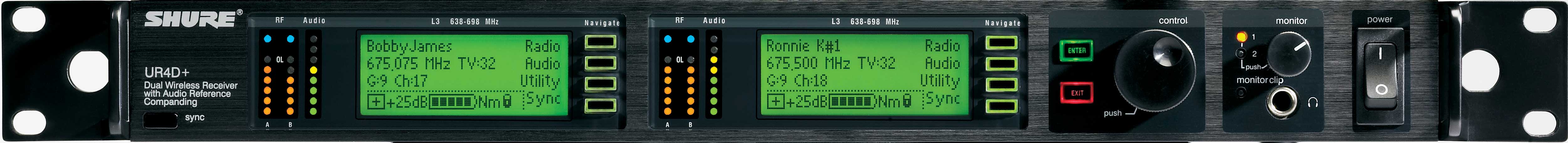

The UR4D+ receivers are part of the flagship UHF-R system and provide dual-channel options for premium wireless. As "+"-versions these receivers include RF distribution ports that allow up to 10 receivers to share the RF signal from a single pair of antennas. Up to 47 compatible systems may be used together without audio degradation or interference. Within a given frequency you can choose from 3000 selectable frequencies across a 75MHz bandwidth. Using the Shure Wireless Workbench® System Control Software, which is included with the receiver, you can remotely monitor and control individual and networked receivers.

Shure UR4D+ Features:

  • 3,000 selectable frequencies across 75MHz bandwidth
  • Up to 47 compatible channels per band
  • Cascading: Includes RF distribution ports that allow up to 10 receivers to share the RF signal from a single pair of antennas
  • Track Tuning Filtering Technology
  • Networked Automatic Frequency Selection
  • Automatic Transmitter Setup (including custom group upload)
  • Flash Memory to store six 60-channel custom frequency groups
  • Shure's patented Audio Reference Companding
  • Multi-function bit-mapped backlit LCD
  • Built-in USB and Ethernet network compatibility
  • Shure Wireless Workbench Control/Monitoring Software
  • Remoteable Antennas
  • Shure's microprocessor-controlled diverstiy

Shure UR4D+ Specifications:

  • Power Supply: Internal
  • Battery Status: Yes
  • RF Carrier Frequency Range: 470-530MHz, depending on region
  • Working Range (UR1): 500' under typical conditions, 1600' line-of-sight, outdoors for a single system
  • Audio Frequency Response: 40Hz - 18kHz (+1dB, -3dB)
  • Gain Adjustment Range (UR1): -20 to +35dB
  • Modulation: FM (45kHz max. deviation), compander system with pre- and de-emphasis
  • Dynamic Range: > 105dB, A-weighted
  • Image Rejection: > 110dB typical
  • RF Sensitivity: -107dBm typical, 12dB SINAD
  • Spurious Rejection: > 90dB Typical
  • Ultimate Quieting (ref 45kHz deviation): > 100dB, A-weighted
  • System Distortion (ref. +/- 45kHz deviation, 1kHz modulation): < 0.3% total harmonic distortion typical
  • Power Requirements: 100 to 240VAC, 50/60Hz
  • Current Drain: 0.8A max
  • Operating Temperature Range: 0°F to 135°F
  • Overall Dimensions: 1.72" x 19" x 14.39"
  • Net Weight: 10.6lbs
  • Housing: Galvanized Steel
