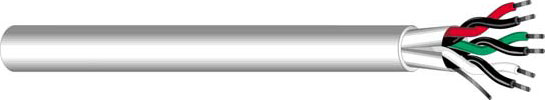

West Penn D252402
Cable, 5 Pin/DMX, Plenum Rated

OUR PART #  D252402

Our Price: $326.43
List Price: $546.00
You save 40%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

2 Pair 24 Awg. Stranded tinned copper conductors, overall shielded with an overall jacket. Ideal for indoor control, signaling, electronic and microprocessor based applications.

Specifications

Construction Parameters

  • Conductor: 24 AWG Tinned Copper
  • Stranding: 7x32
  • Insulation Material: Teflon
  • Insulation Thickness: 0.013'' Nom.
  • Number of Conductors: 4 (2 Pair)
  • Shield: 100% Aluminum Polyester Foil
  • Drain: Stranded Tinned Copper
  • Jacket Material: Copolymer
  • Jacket Thickness: 0.015'' Nom.
  • Overall Cable Diameter: 0.188'' Nom.
  • Approximate Cable Weight: 19 Lbs/1M' Nom.
  • Flame Rating: NFPA 262 Flame Test

Electrical and Enviromental Properties

  • Temperature Rating: -10deg C to 60deg C
  • Operating Voltage: 300 V RMS
  • Max.Capacitance Between Conductors @ 1 KHz: 14.5 pf/ft Nom.
  • Capacitance Between Conductors to Shield @ 1 KHz: 26 pf/ft Nom.
  • DC Resistance per Conductor @ 20deg C: 26 Ohms/1M' Nom.
  • Velocity of Propagation: 69% Nom.
  • Impedance: 100O Nom
  • Insulation Colors: 1. Black/Red, 2. Black/White
  • Jacket Color: Gray
  • RoHS Compliant: No

Mechanical Properties

  • Max. Recommended Pull Tension: 44 lbs.
  • Min. Bend Radius (Install): 1.8”

West Penn D252402
Cable, 5 Pin/DMX, Plenum Rated

OUR PART #  D252402

Product Information:

2 Pair 24 Awg. Stranded tinned copper conductors, overall shielded with an overall jacket. Ideal for indoor control, signaling, electronic and microprocessor based applications.

Specifications

Construction Parameters

  • Conductor: 24 AWG Tinned Copper
  • Stranding: 7x32
  • Insulation Material: Teflon
  • Insulation Thickness: 0.013'' Nom.
  • Number of Conductors: 4 (2 Pair)
  • Shield: 100% Aluminum Polyester Foil
  • Drain: Stranded Tinned Copper
  • Jacket Material: Copolymer
  • Jacket Thickness: 0.015'' Nom.
  • Overall Cable Diameter: 0.188'' Nom.
  • Approximate Cable Weight: 19 Lbs/1M' Nom.
  • Flame Rating: NFPA 262 Flame Test

Electrical and Enviromental Properties

  • Temperature Rating: -10deg C to 60deg C
  • Operating Voltage: 300 V RMS
  • Max.Capacitance Between Conductors @ 1 KHz: 14.5 pf/ft Nom.
  • Capacitance Between Conductors to Shield @ 1 KHz: 26 pf/ft Nom.
  • DC Resistance per Conductor @ 20deg C: 26 Ohms/1M' Nom.
  • Velocity of Propagation: 69% Nom.
  • Impedance: 100O Nom
  • Insulation Colors: 1. Black/Red, 2. Black/White
  • Jacket Color: Gray
  • RoHS Compliant: No

Mechanical Properties

  • Max. Recommended Pull Tension: 44 lbs.
  • Min. Bend Radius (Install): 1.8”
